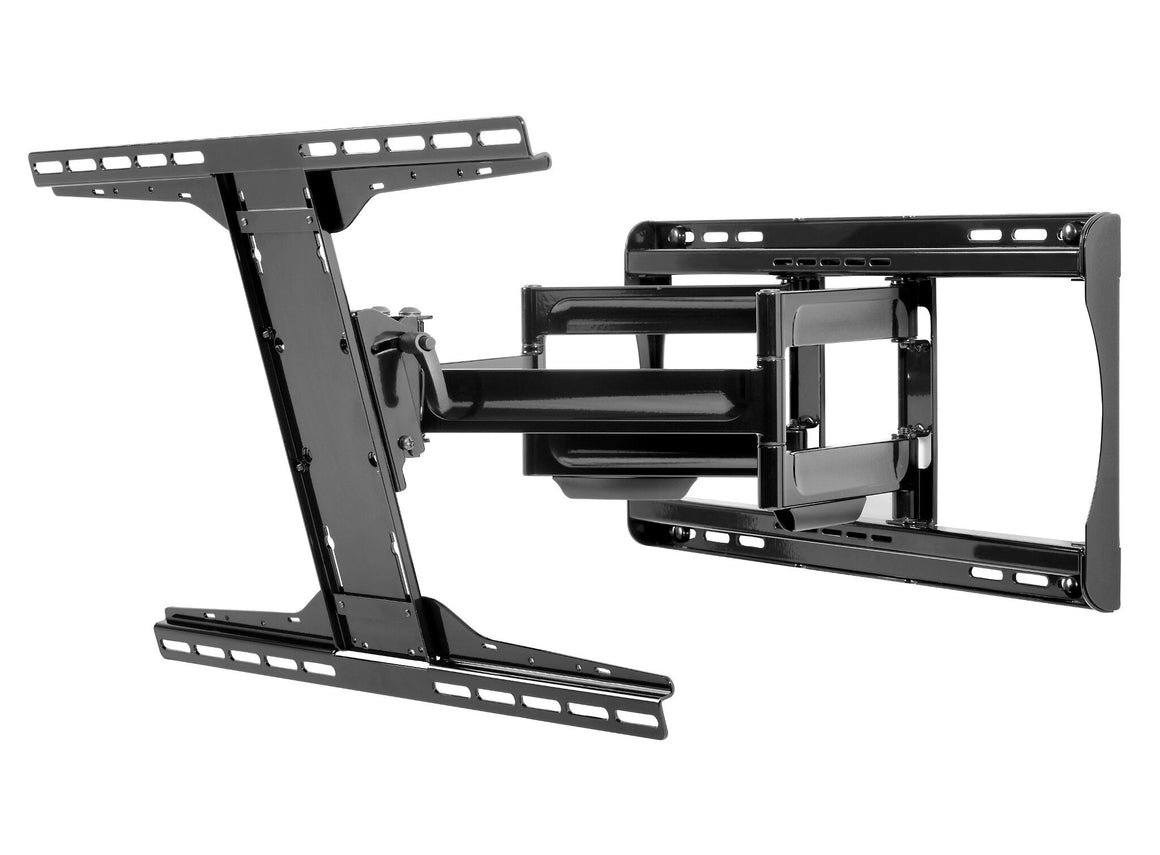

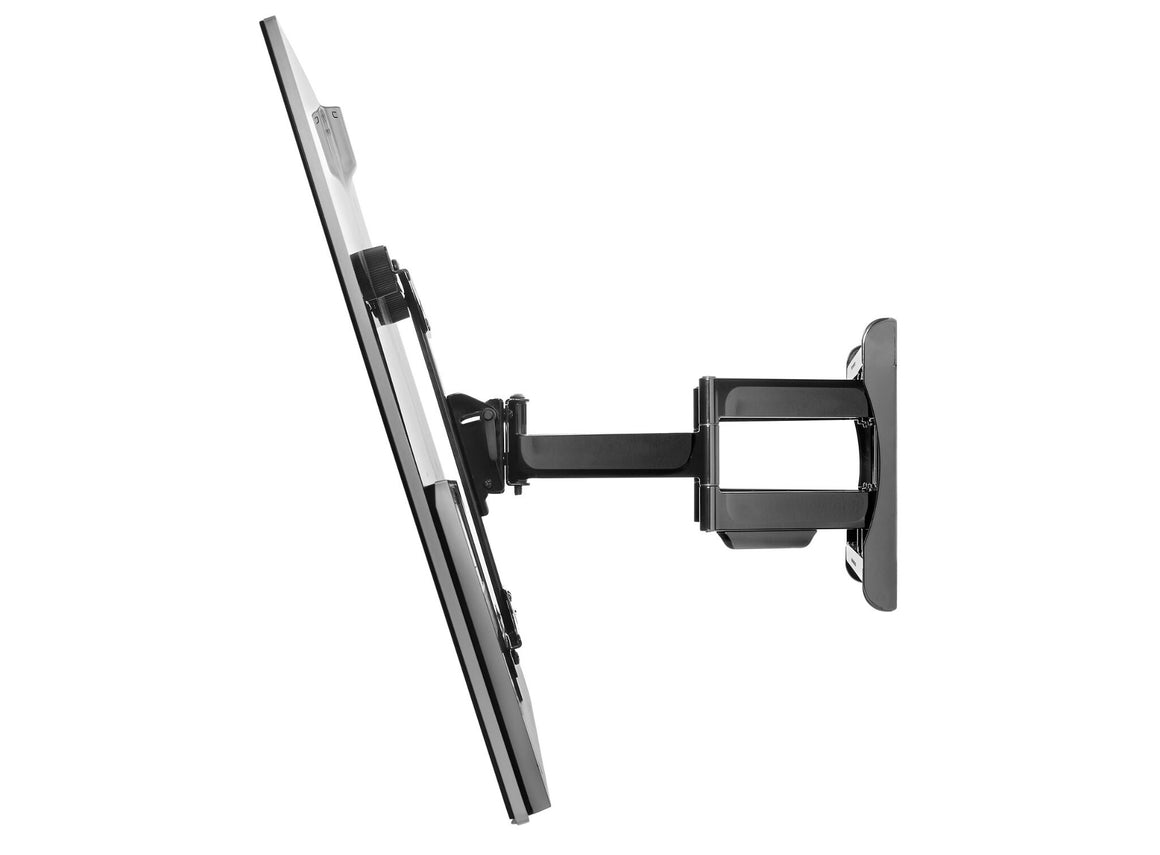

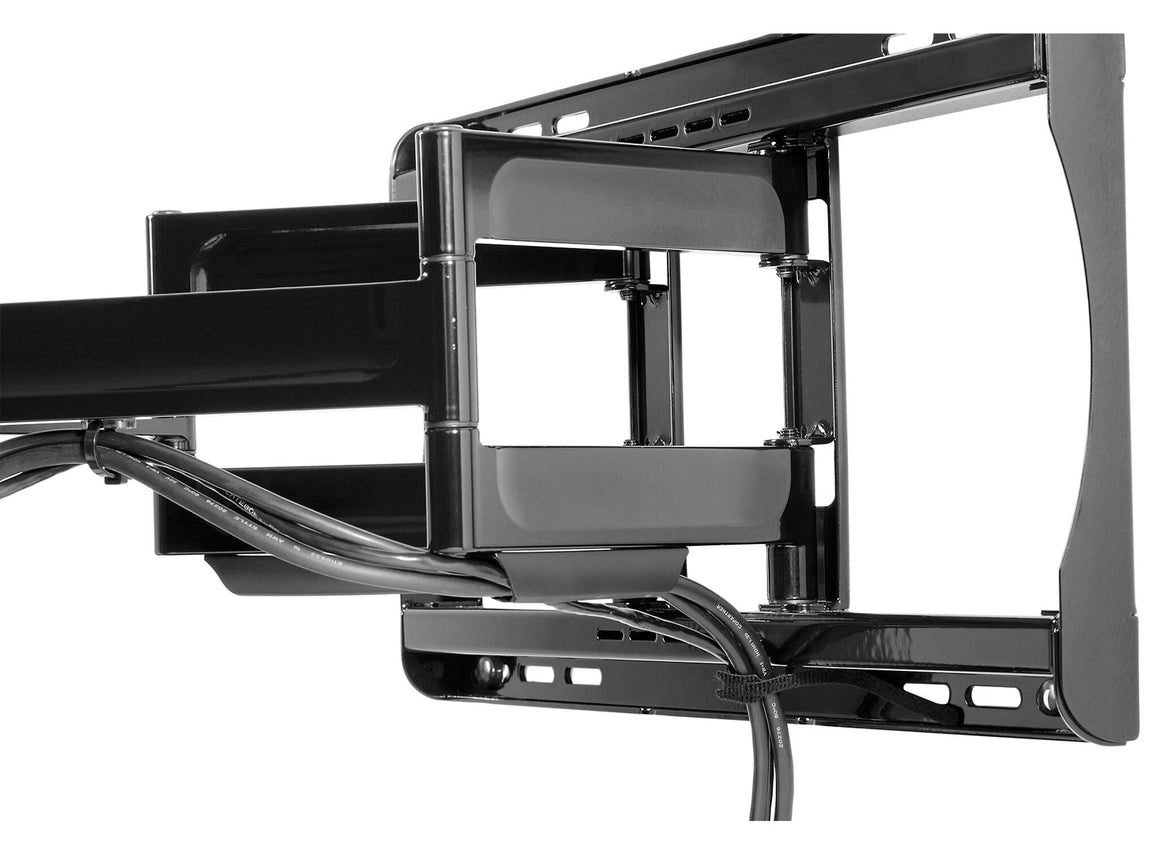

The Paramount™ series wall mounts provide versatile and multi-functional features. With PA762, extend the display up to 21.32" (542mm) or fully-retract it to just 3." (76mm) from the wall for the perfect viewing angle. The Hook-and-Hang™ system offers easy, one-person installation of the display. A ratcheting handle provides locking tilt capability for quick adjustments to the amount of tilt, reducing glare and optimizing the viewing angle. Integrated cable management protects, contains and conceals cables for a clean installation.
| Mounting |
|---|
| Maximum VESA mount |
600 x 400 mm |
| Minimum VESA mount |
600 x 400 mm |
| Mounting type |
Wall |
| Maximum screen size |
2.29 m (90") |
| Minimum screen size |
99.1 cm (39") |
| Maximum weight capacity |
68 kg |
| Ergonomics |
|---|
| Distance to the wall (min) |
7.6 cm |
| Distance to the wall (max) |
54.2 cm |
| Cable management |
Yes |
| Swivel angle range |
-45 - 45° |
| Tilt angle range |
-5 - 15° |
| Tilt adjustment |
Yes |
| Design |
|---|
| Certification |
RoHS, UL |
| Product colour |
Black |
| Packaging content |
|---|
| Manual |
Yes |
| Mounting kit |
Yes |
| Technical details |
|---|
| Package dimensions (LxWxH) |
694 x 89 x 419 mm |
| Weight & dimensions |
|---|
| Weight |
9.56 kg |
| Height |
425 mm |
| Depth (max) |
54.2 cm |
| Depth (min) |
7.6 cm |
| Depth |
76 mm |
| Width |
619 mm |
| Packaging data |
|---|
| Package weight |
11.1 kg |
| Package height |
89 mm |
| Package depth |
419 mm |
| Package width |
694 mm |
| Logistics data |
|---|
| Harmonized System (HS) code |
85299097 |
