Maximum impact in minimum space

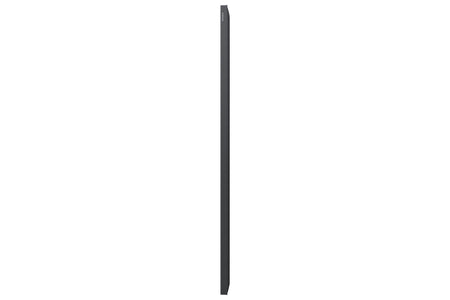

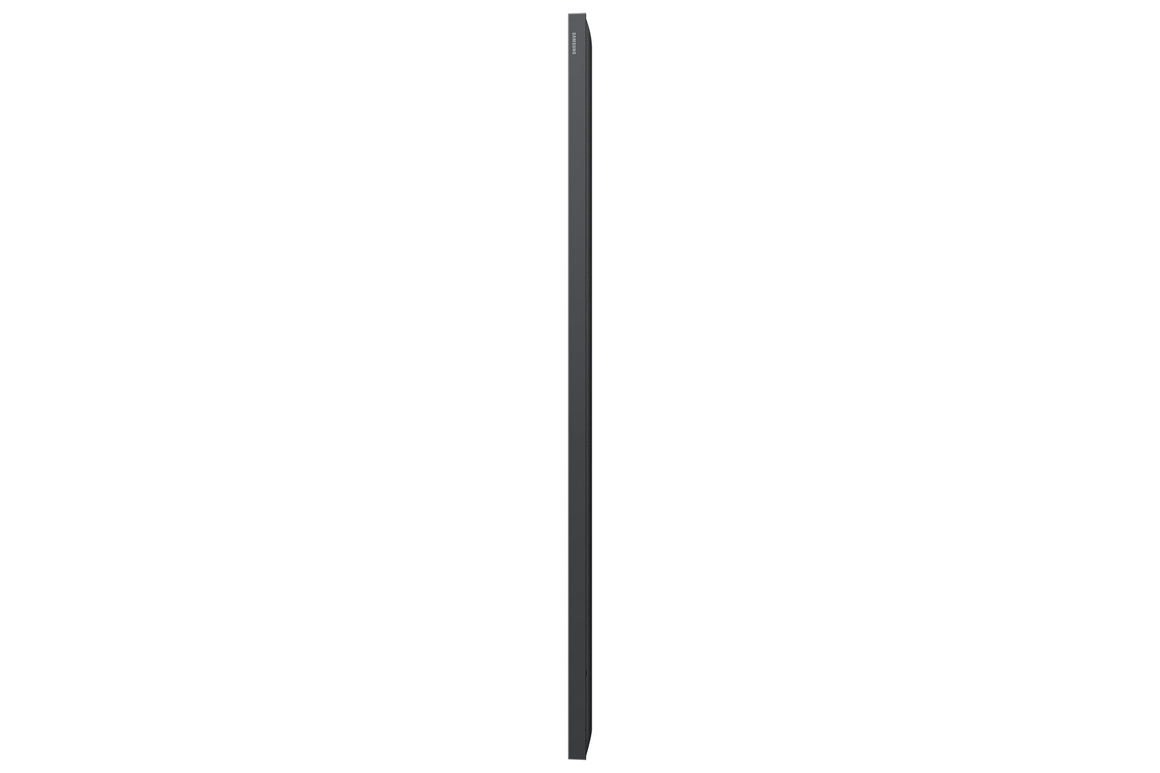

Ultra Slim Depth

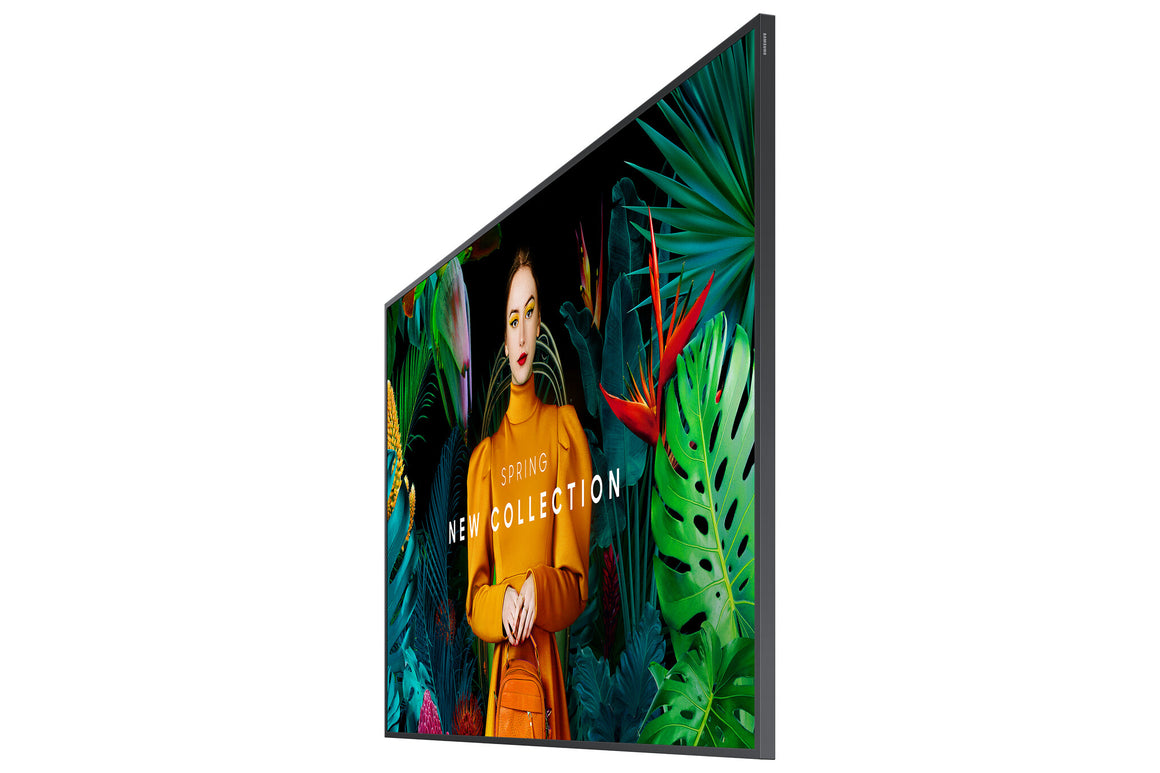

The QMC's unparalleled ultra-slim thickness of 28.5mm makes it the thinnest option in Samsung’s UHD series. It comes with the Slim Fit Wall Mount, which allows you to install it neatly and easily in any environment. QMC optimizes space with its sleek design that blends seamlessly into your business.
Slim design. Stunning performance
Introducing QMC, the slimmest display in the Samsung UHD Signage. It brings elegance to business while maximizing space. Its enhanced internal solutions and intuitive home screen UX make it easy to use. Businesses in various verticals can achieve growth with QMC’s efficiency and design innovation.
Clean visuals in landscape or portrait mode

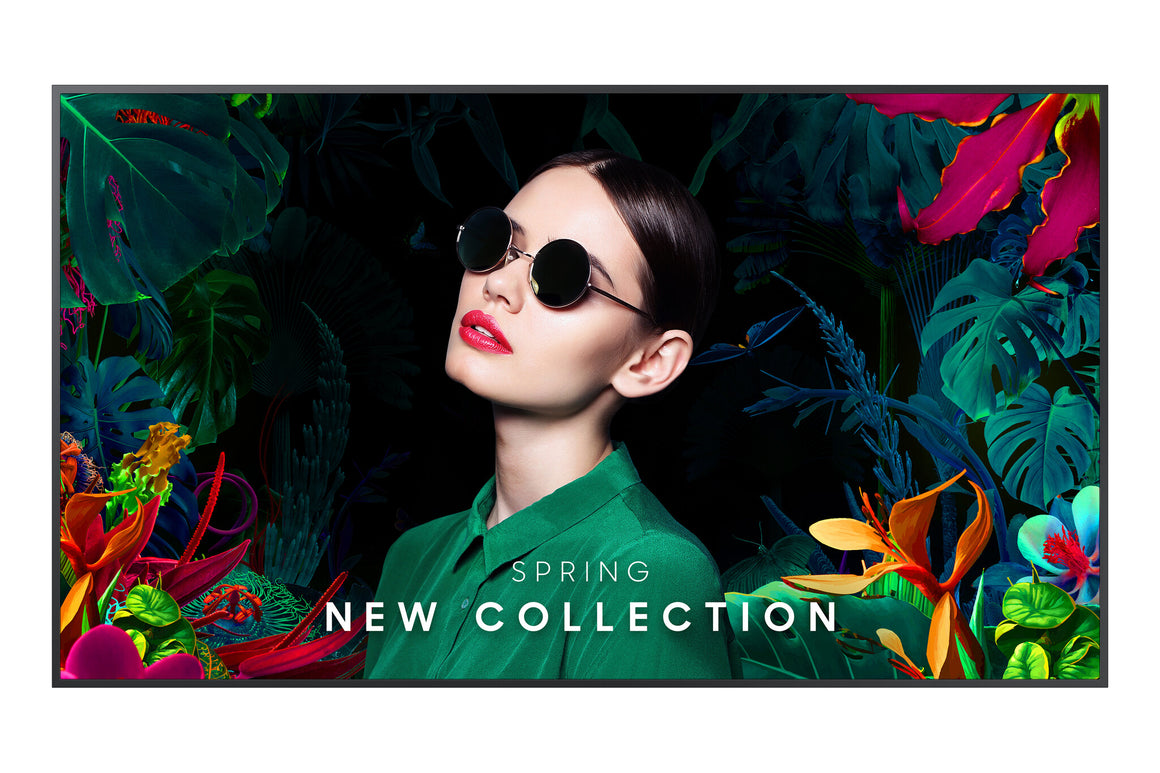

Even Bezel

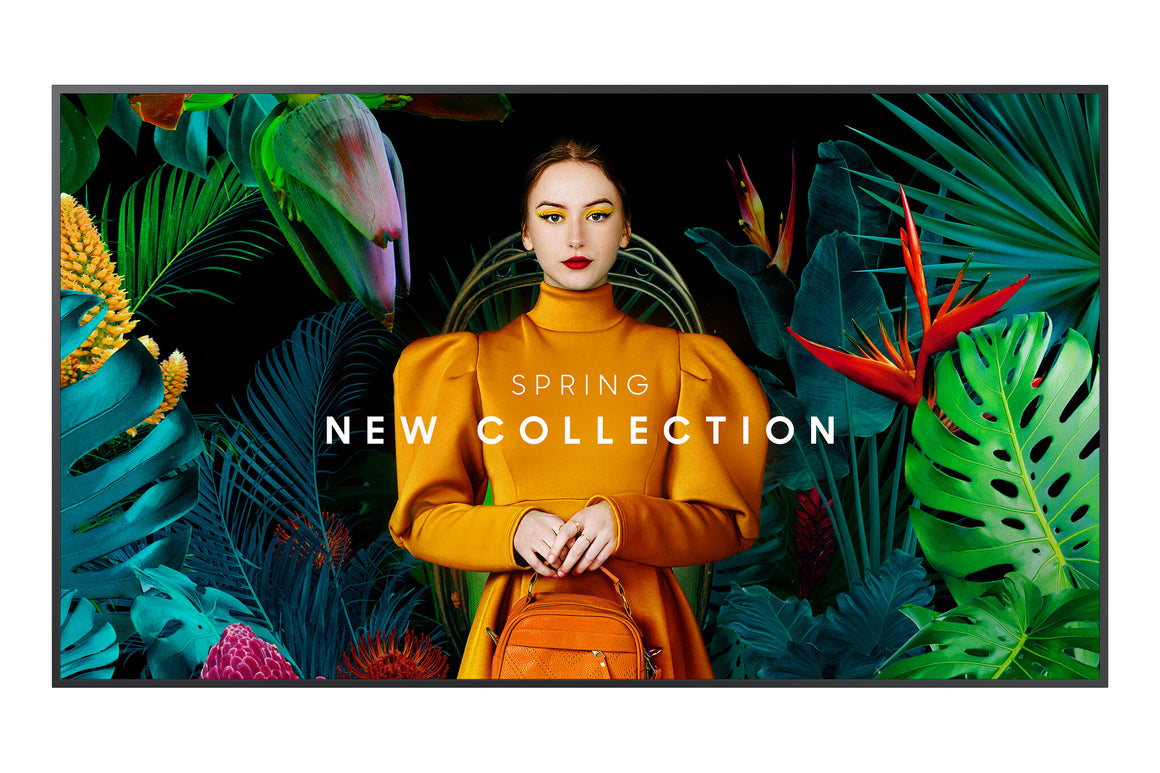

The bezels are consistent and even on all four sides of the display, with the same thickness and dimensions. The new even bezel design prevents any visual issues from arising when the display is adjusted to portrait mode.
Secure and even mounting
Centered VESA Holes

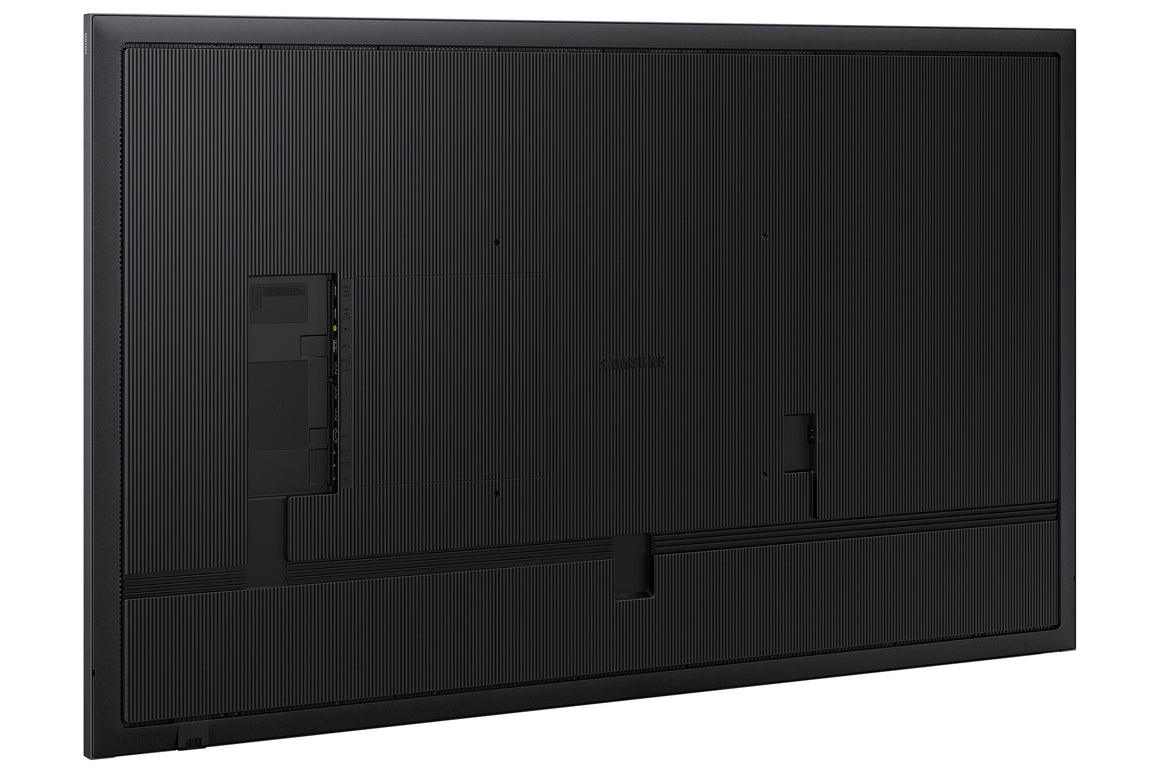

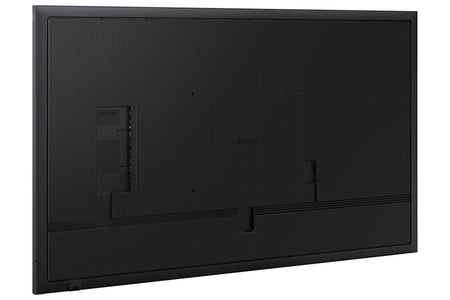

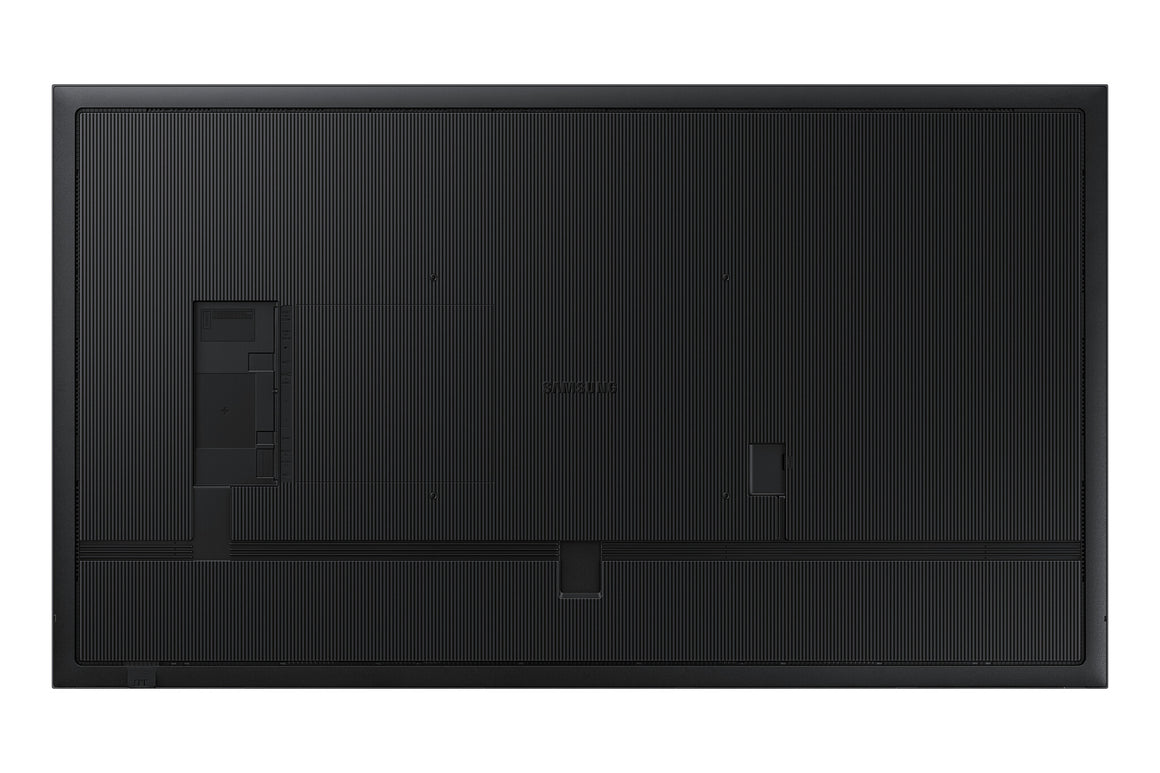

The central positioning of the VESA holes on the back of the display evenly distribute its weight for secure mounting. With the VESA holes now shifted to the center, users can adjust the display to portrait mode without the display tilting unintentionally.
Lifelike color, born in a pure state with fine crystal
Dynamic Crystal Color
Every picture is more immersive with one billion shades of color. Dynamic Crystal Color delivers true-to-life variations, allowing customers to see every subtlety.
View lifelike shades of color in powerful 4K
Quantum Processor Lite 4K
Samsung’s industry-leading video processing technology enhances every piece of content for clarity and consistency. Intelligent UHD upscaling technology, powered by Samsung’s Quantum Processor Lite 4K, elevates lower-resolution video to UHD, providing a professional picture quality.
Ensure critical information is always visible
Non-glare
QMC displays feature reliable, non-glare panels that provide better visibility from all angles, any time of day. The non-glare display enables businesses to deliver accurate information in critical locations, like airports and train stations.
Connect with convenience
Home UI
QMC boasts greater usability with an upgraded home screen UI. Popular categories like Favorites, Sources and Settings are displayed on the same screen for convenient availability. The Favorites folder grants users quick, easy access to frequently used features in a single click.
Collaborate between screens with wire-free speed
Smartview+
SmartView+ enables wireless screen sharing without cable connections, ensuring easy collaboration. Users can now enable the screen sharing function at the start of a meeting, allowing the meeting admin to quickly switch between screens with one click.
Simplified calibration between screens with mobile app
Smart Calibration
Guarantee complete brand consistency across every display in every location. Using the Samsung mobile app, Smart Calibration ensures every display is calibrated correctly, showcasing brand logos and other collateral in the exact colors required.
Enhance professional environments with expert tools
Professional Modes
Built-in professional modes enable more possibilities in specific verticals. Director Mode minimizes post-processing, aligning content to the director’s original intention. Medical teams can simulate medical images such as X-rays with DICOM Simulation Mode, meeting DICOM's full grayscale standards
Change the way to manage your display
Samsung VXT
Samsung VXT CMS is a cloud-based solution that brings together content management and remote device management capabilities, allowing users to remotely manage hardware settings and troubleshoot issues while effortlessly creating and deploying content with no previous training needed.
Everyday Sustainability
Energy Star / EPEAT / TÜV Rheinland Carbon Footprint
Samsung is making diverse efforts to reduce our environmental impact in smart signage, and encouraging users to pursue a more sustainable life. As a result, QMC series has earned a series of certifications for environmentally preferable products from highly recognized institutes in Germany and the U.S.
| Display |
|---|
| Colour gamut |
72% |
| Horizontal scan range |
30 - 81 kHz |
| Vertical scan range |
48 - 75 Hz |
| Haze rate |
25% |
| Pixel frequency (max) |
594 MHz |
| Display diagonal (metric) |
189 cm |
| Pixel pitch |
0.429 x 0.429 mm |
| Viewing angle, vertical |
178° |
| Viewing angle, horizontal |
178° |
| Dynamic contrast ratio marketing name |
Mega Contrast |
| Contrast ratio (typical) |
4000:1 |
| Response time |
8 ms |
| Touchscreen |
No |
| HD type |
4K Ultra HD |
| Display brightness |
500 cd/m² |
| Display resolution |
3840 x 2160 pixels |
| LED backlight |
Yes |
| Panel type |
VA |
| Display technology |
LCD |
| Display diagonal |
190.5 cm (75") |

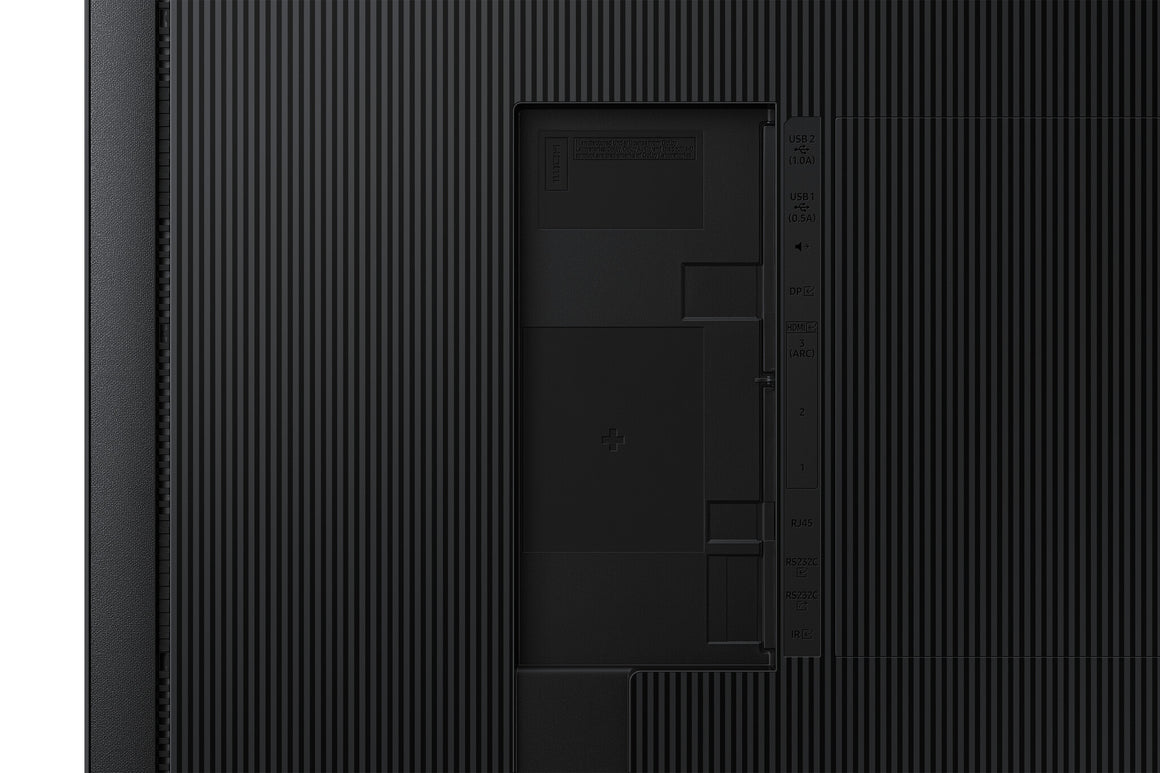

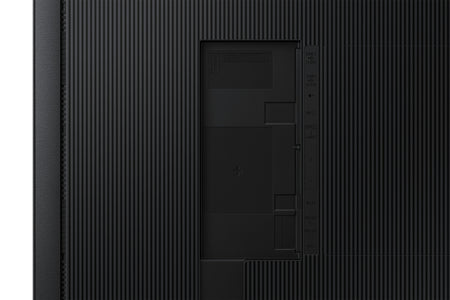

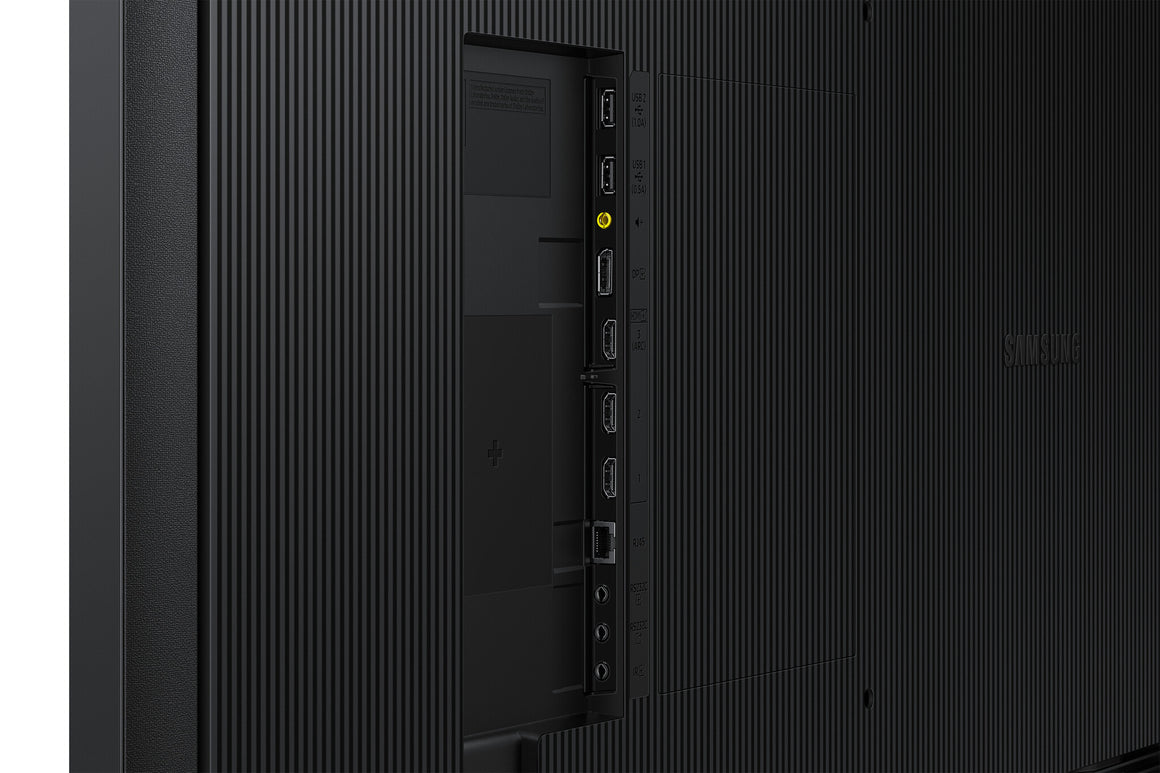

| Ports & interfaces |
|---|
| Infrared data port |
Yes |
| RS-232 interface |
Yes |
| Audio (L/R) out |
1 |
| Wi-Fi |
Yes |
| Ethernet LAN |
Yes |
| USB ports quantity |
2 |
| USB port |
Yes |
| DisplayPort version |
1.2 |
| DisplayPorts in |
1 |
| DisplayPorts quantity |
1 |
| DVI port |
No |
| HDMI input ports quantity |
3 |
| HDMI version |
2.0 |
| HDMI ports quantity |
3 |
| Design |
|---|
| Bezel colour |
Charcoal Black |
| Bezel width (top) |
1.34 cm |
| Bezel width (side) |
1.34 cm |
| Bezel width (bottom) |
1.34 cm |
| Panel mounting interface |
400 x 400 mm |
| VESA mounting |
Yes |
| Screen shape |
Flat |
| Placement supported |
Indoor |
| Product colour |
Black |
| Product design |
Digital signage flat panel |
| Performance |
|---|
| HDCP |
Yes |
| HDCP version |
2.2 |
| Operating hours (hours/days) |
24/7 |
| Purpose |
Universal |
| Power |
|---|
| AC input frequency |
50/60 Hz |
| AC input voltage |
100 - 240 V |
| Power consumption (sleep) |
0.5 W |
| Power consumption (typical) |
214.5 W |
| Computer system |
|---|
| Operating system version |
7.0 |
| Operating system installed |
Tizen |
| Weight & dimensions |
|---|
| Display weight |
33.4 kg |
| Display height |
960.4 mm |
| Display depth |
28.5 mm |
| Display width |
1682.3 mm |
| Packaging data |
|---|
| Package weight |
43.5 kg |
| Package height |
1113 mm |
| Package depth |
180 mm |
| Package width |
1839 mm |
| Operational conditions |
|---|
| Operating relative humidity (H-H) |
10 - 80% |
| Operating temperature (T-T) |
0 - 40 °C |
| Certificates |
|---|
| Certification |
Class B60950-1, 62368-1 |
| General |
|---|
| Product family |
QMC |
| Other features |
|---|
| Optional features |
WMN-B50SCSTN-L4355C |
| Bluetooth |
Yes |
| Flash memory |
16000 MB |
