Industrial-grade | 15kV Air | 8kV Contact | Metal | Mountable | DIN Rail | 5 Gbps
This TAA compliant 10-port industrial USB 3.2 Gen 1 hub gives you the scalability you need in harsh industrial environments, product and repair labs, conference rooms or office workstations. With its rugged industrial grade metal housing, it is designed to meet the advanced requirements of connecting a high number of devices in factories and office environments.
Perfect for Harsh Environments
This industrial USB hub delivers reliable performance with a metal, heavy-duty housing. It supports wide-range 7-24V DC terminal block input, giving you the flexibility to power the hub as required, based on your own power input capabilities.
Perfect for factory environments, the rugged hub also supports a wide operating temperature range (0°C to 70°C) and offers surge and ESD protection to each USB port, which can help prevent damage to your connected devices.
Connect & Charge More USB Devices
Designed for a high volume of connections, this robust USB 3.2 Gen 1 hub offers ten connection ports, for connecting more USB devices and peripherals.
The hub also supports USB battery charging specification 1.2, delivering up to 2.4A on any port to a maximum of 50W total, so you can charge your mobile devices faster than traditional USB ports allow.
Locate the Hub Where You Need it Most

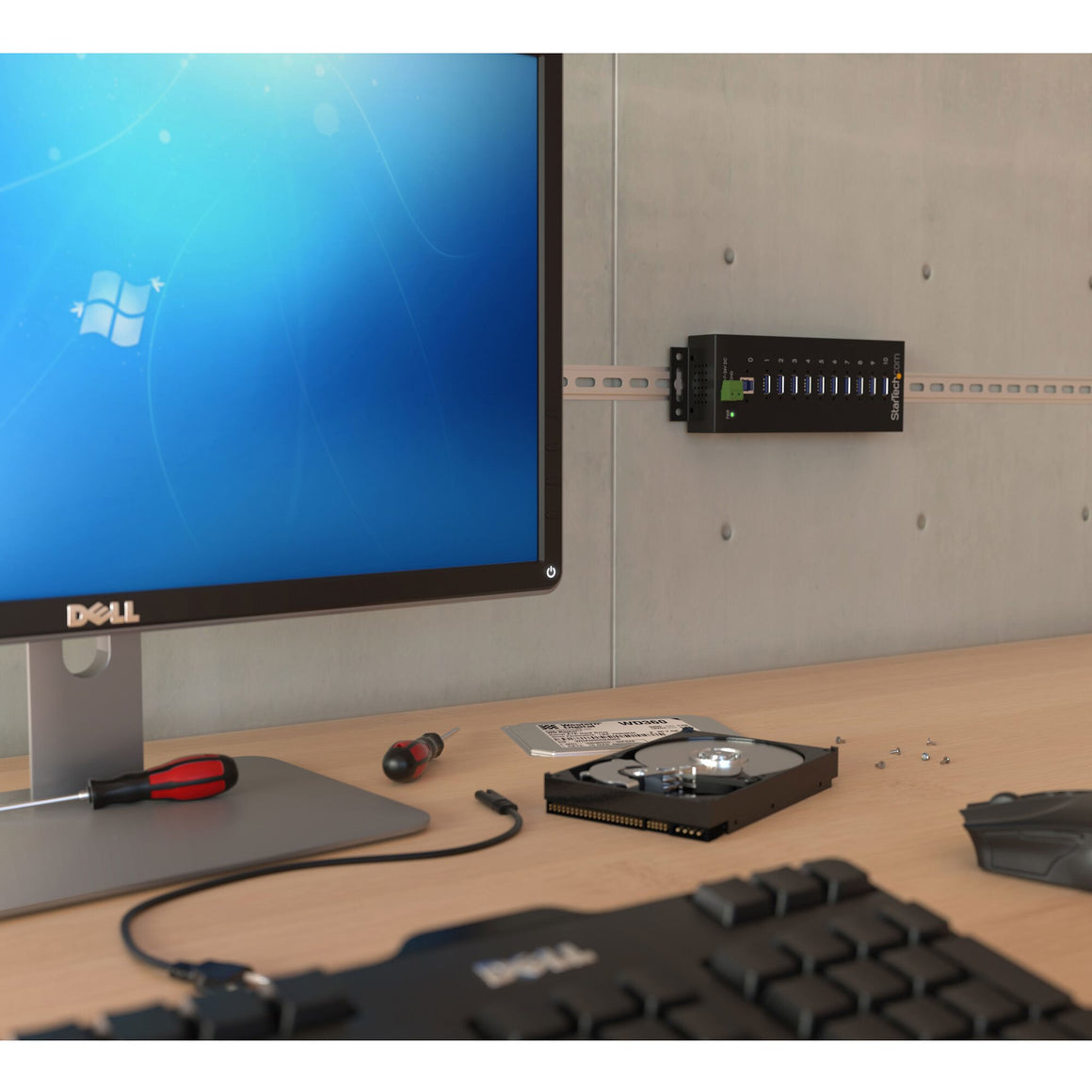

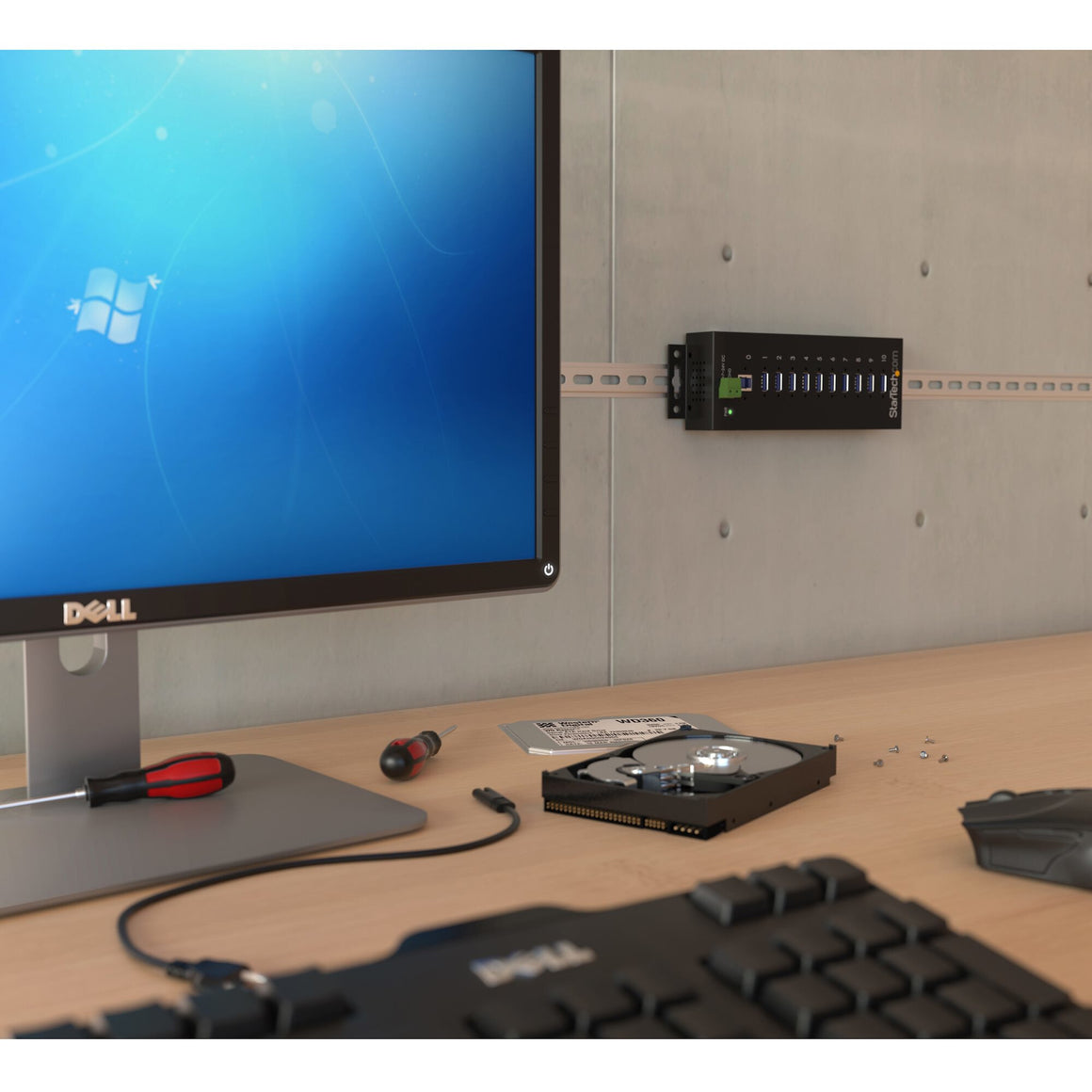

With versatile installation options, you can install the hub where it’s best suited for your environment. With built-in mounting brackets and included DIN mount rails, you can securely mount the USB 3.2 Gen 1 hub to most surfaces such as a wall, under a desk or rack.
StarTech.com offers an external power adapter, ITB20D3250, sold separately. The universal DC power adapter can be used as an alternative, back up or replacement power supply for StarTech.com’s line of industrial USB hubs.
Works With Your Older USB Devices
The rugged USB hub supports the full 5Gbps bandwidth of USB 3.2 Gen 1 and is backward compatible with previous USB devices. You can connect your legacy USB 3.2 Gen 1 and 1.x peripherals alongside your newer USB 3.2 Gen 1 devices without any disruptions.
The ST1030USBM is backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
| Ports & interfaces |
|---|
| Terminal block port |
Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
10 |
| Hub interfaces |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A |
| Host interface |
USB 3.2 Gen 1 (3.1 Gen 1) Type-B |
| Ports quantity |
10 |
| Features |
|---|
| Certification |
RoHS, CE, FCC, TAA, REACH |
| Cable length |
2.032 m |
| LED indicators |
Power |
| Surge protection |
Yes |
| Product colour |
Black |
| Housing material |
Steel |
| Data transfer rate |
5000 Mbit/s |
| Power |
|---|
| Input voltage |
7 - 24 V |
| Weight & dimensions |
|---|
| Weight |
357 g |
| Height |
31 mm |
| Depth |
198 mm |
| Width |
56 mm |
| Packaging data |
|---|
| Package weight |
600 g |
| Package height |
57 mm |
| Package depth |
246 mm |
| Package width |
169 mm |
| Packaging content |
|---|
| Cables included |
USB |
| Manual |
Yes |
| DIN rail kit included |
Yes |
| Terminal block included |
Yes |
| Operational conditions |
|---|
| Operating relative humidity (H-H) |
5 - 95% |
| Storage temperature (T-T) |
-20 - 85 °C |
| Operating temperature (T-T) |
0 - 70 °C |
| Performance |
|---|
| Mean time between failures (MTBF) |
119388 h |
| Logistics data |
|---|
| Harmonized System (HS) code |
84719000 |
| Products per master (outer) case |
25 pc(s) |
| Master (outer) case height |
338 mm |
| Master (outer) case length |
526 mm |
| Master (outer) case width |
444 mm |
| Other features |
|---|
| Chipset |
Genesys Logic - GL3520 |
