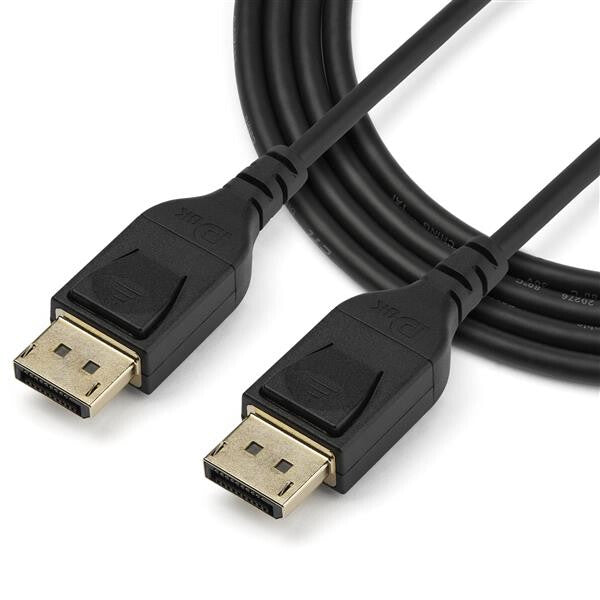

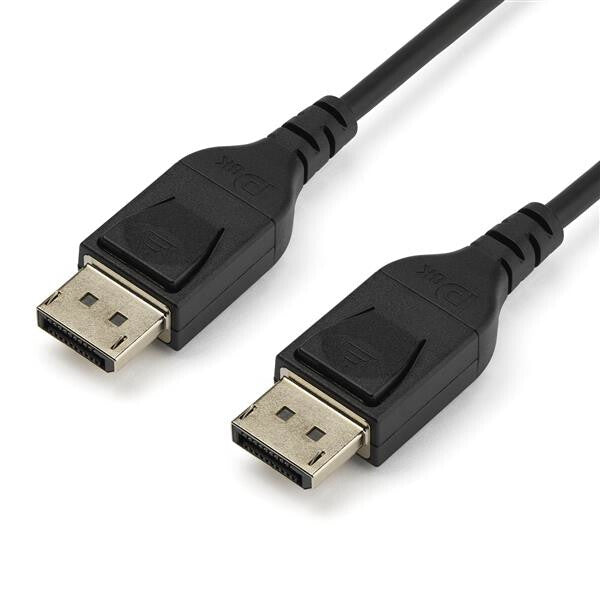

Slim DP Monitor Cable | 8K@60Hz | HBR3 | HDR | Gold-Plated | Lifetime Warranty

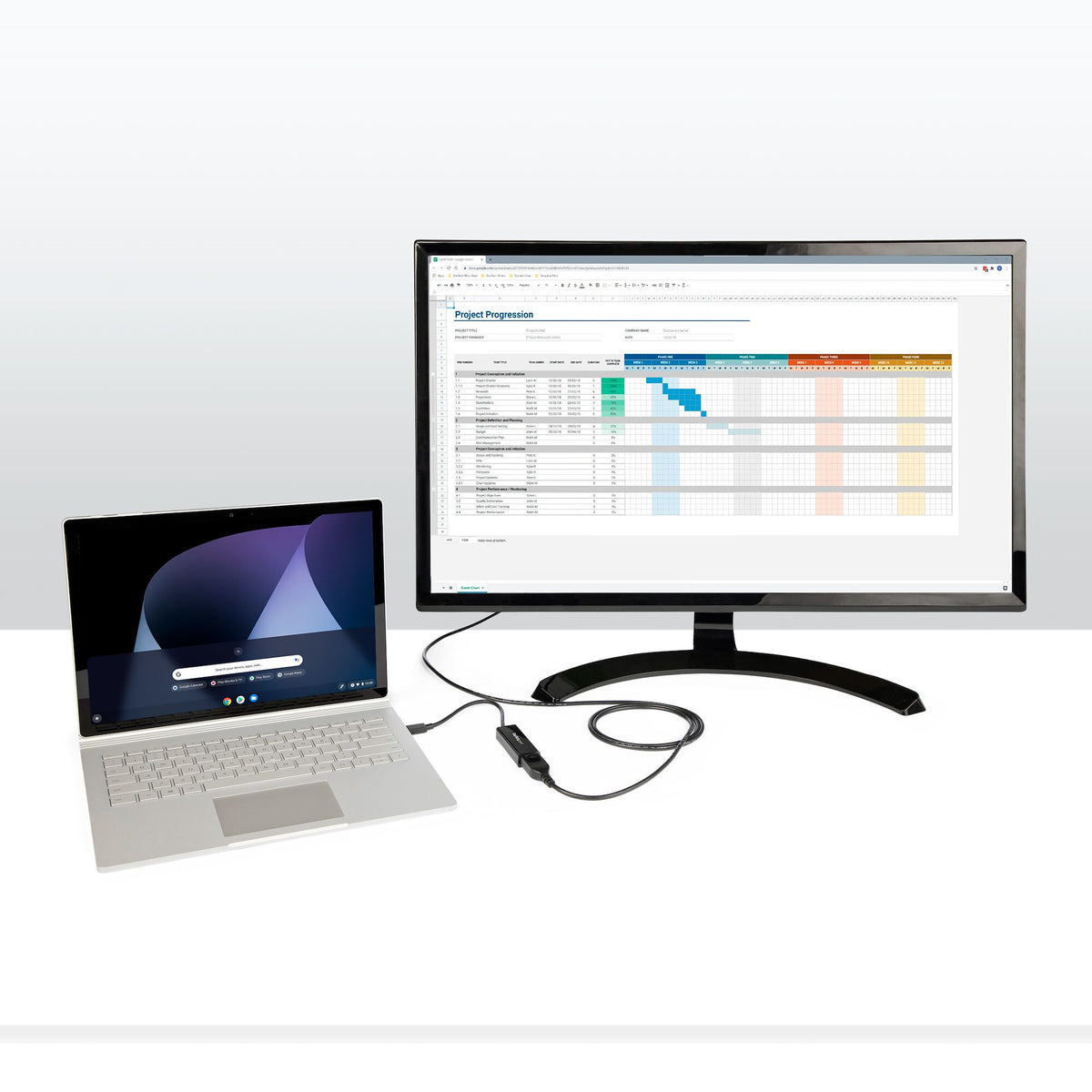

This DisplayPort 1.4 cable connects your DisplayPort™ laptop, Chromebook or desktop computer to a "super ultra-high definition" 8K monitor, TV or projector. It supports resolutions up to 8K (7680x4320) @ 60Hz.
The DisplayPort monitor cable provides the essential connection to support the next generation of super ultra-high definition video.
This cable is VESA® to ensure full compliance and efficient operation of the higher link rate of HBR3. It has been tested to meet all DP 1.4 specifications to ensure quality and reliability.
The Superior Performance of DisplayPort 1.4
This 8K DisplayPort cable supports all DP 1.4 features:
• High Bit Rate 3 (HBR3) Bandwidths of 32.4 Gbps supporting the latest in industry standards
• High Dynamic Range (HDR) for higher contrast ratio and vivid colors
• Multi-Stream Transport (MST) for daisy-chaining multiple monitors
• Display Stream Compression 1.2 (DSC) for maximum resolution output
• Forward Error Correction to manage data transmission errors
• High-Bandwidth Digital Content Protection (HDCP 2.2) for a secure connection between source and display
• 32 Uncompressed Digital Audio Channels

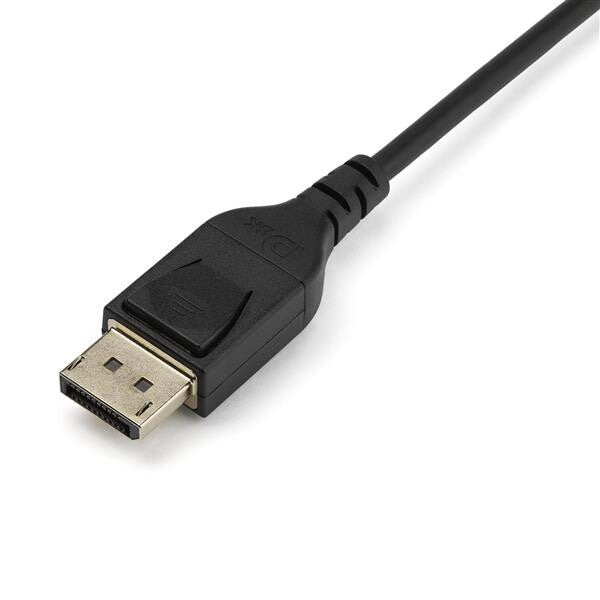

Flexible Cable with Reliable Latched Connectors
The cable has a slim professional grade 34 AWG construction that allows for flexible installation while offering superior reliability for a clean quality installation. Each connector features latches that provide secure connections between your devices.
8K: Enabling Business Continuity
8K has a resolution of 7680 x 4320 and is also known as 4320p and Super Ultra High Definition (SUHD). It is seen in digital signage and other commercial displays that require the highest available resolution. This cable is backward compatible with 4K and 5K displays making it the perfect peripheral to start futureproofing your cabling infrastructure.
Comprehensive Product Testing & Expert Technical Support
StarTech.com conducts thorough compatibility and performance testing on all our products to ensure we are meeting or exceeding industry standards and providing high-quality products to our customers. Our local StarTech.com Technical Advisors have a broad product expertise and work directly with StarTech.com Engineers to provide support for our customers both pre and post-sales.
DP14MM2M is backed by a StarTech.com lifetime warranty.
The StarTech.com Advantage
| Features |
|---|
| Number of conductors |
19 |
| Fire-resistance rating |
VW-1 |
| Multi-Stream Transport (MST) |
Yes |
| HBR3 support |
Yes |
| Plug and Play |
Yes |
| Bandwidth |
32400 MB/s |
| High Dynamic Range (HDR) supported |
Yes |
| AWG wire size |
34 |
| Jacket material |
Polyvinyl chloride (PVC) |
| Cable shielding |
Aluminum mylar foil |
| Product colour |
Black |
| Latching connectors |
Yes |
| HDCP |
Yes |
| Maximum refresh rate |
120 Hz |
| Supported graphics resolutions |
2560 x 1600 (WQXGA), 3840 x 2160, 7680 x 4320 |
| Maximum resolution |
7680 x 4320 pixels |
| DisplayPort version |
1.4 |
| Connector contacts plating |
Gold |
| Connector 2 form factor |
Straight |
| Connector 1 form factor |
Straight |
| Connector 2 gender |
Male |
| Connector 1 gender |
Male |
| Connector 2 |
DisplayPort |
| Connector 1 |
DisplayPort |
| Cable length |
2 m |
| Certificates |
|---|
| Certification |
CE |
| Compliance certificates |
RoHS |
| Weight & dimensions |
|---|
| Weight |
252 g |
| Cable diameter |
4.5 mm |
| Packaging data |
|---|
| Package weight |
270 g |
| Package height |
10 mm |
| Package depth |
330 mm |
| Package width |
250 mm |
| Packaging content |
|---|
| Quantity per pack |
1 pc(s) |
| Logistics data |
|---|
| Products per master (outer) case |
30 pc(s) |
| Master (outer) case height |
270 mm |
| Master (outer) case length |
550 mm |
| Master (outer) case width |
355 mm |
| Harmonized System (HS) code |
84733080 |
