Easily install one 2.5” solid-state drive or hard drive into a 3.5” bay, without requiring any additional hardware or tools

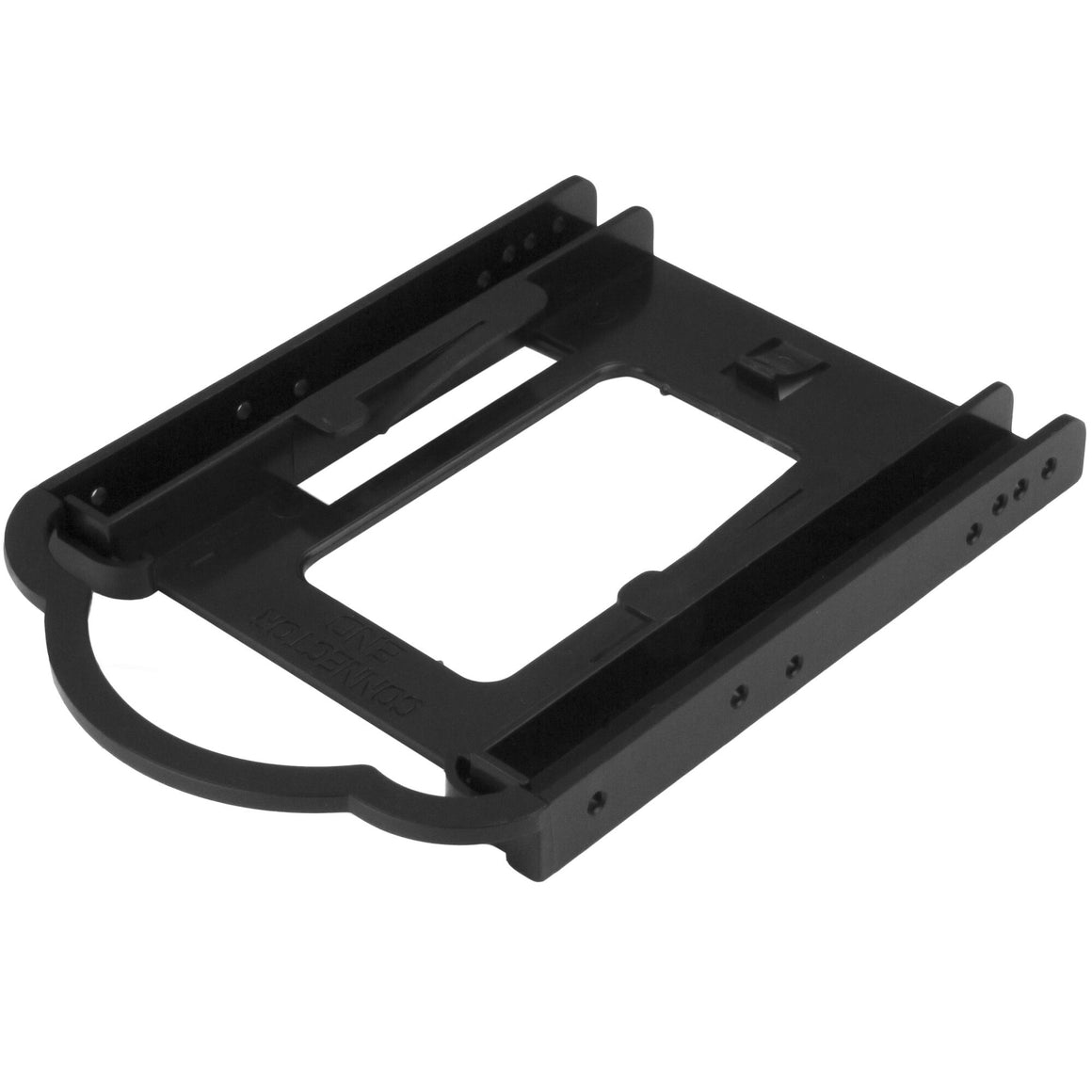

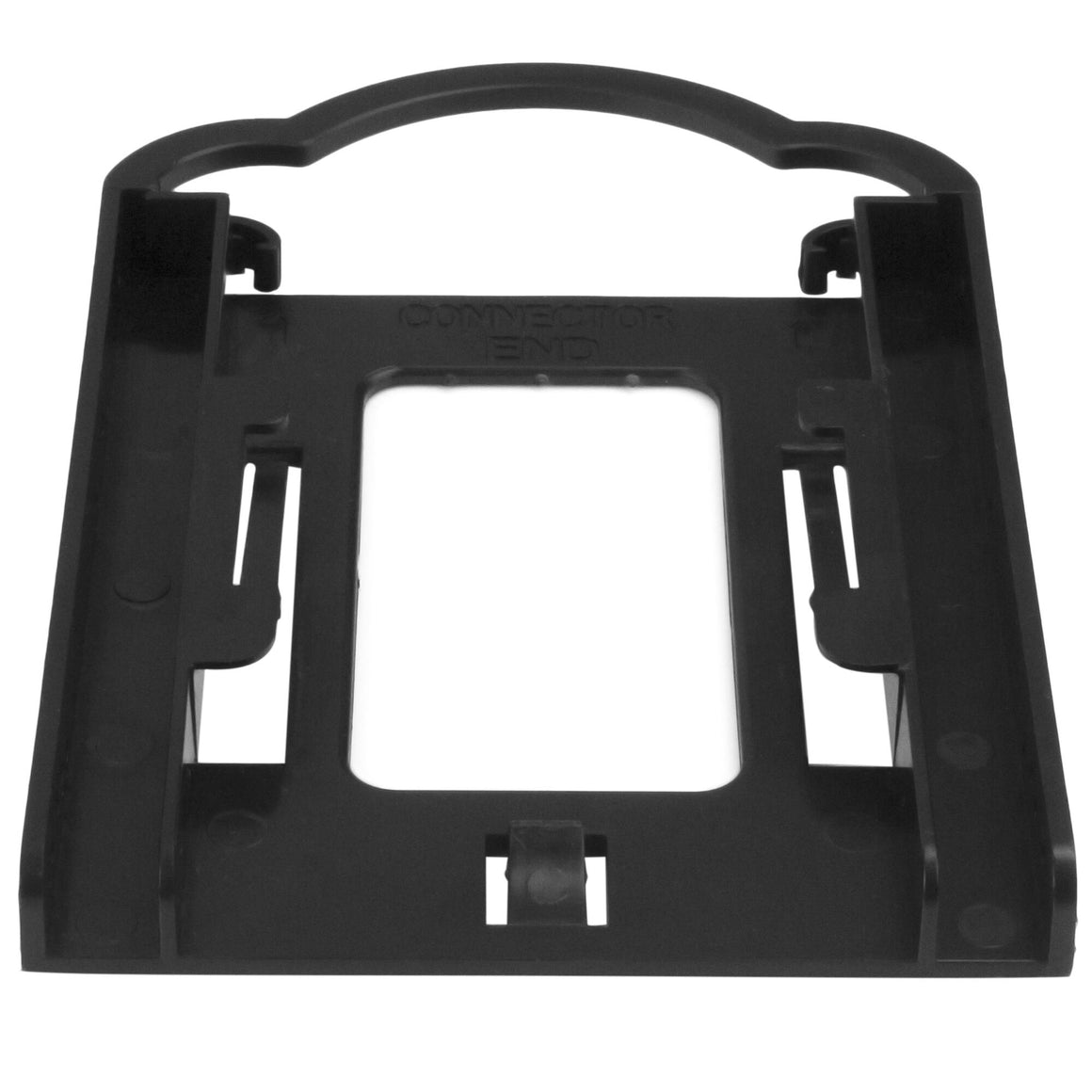

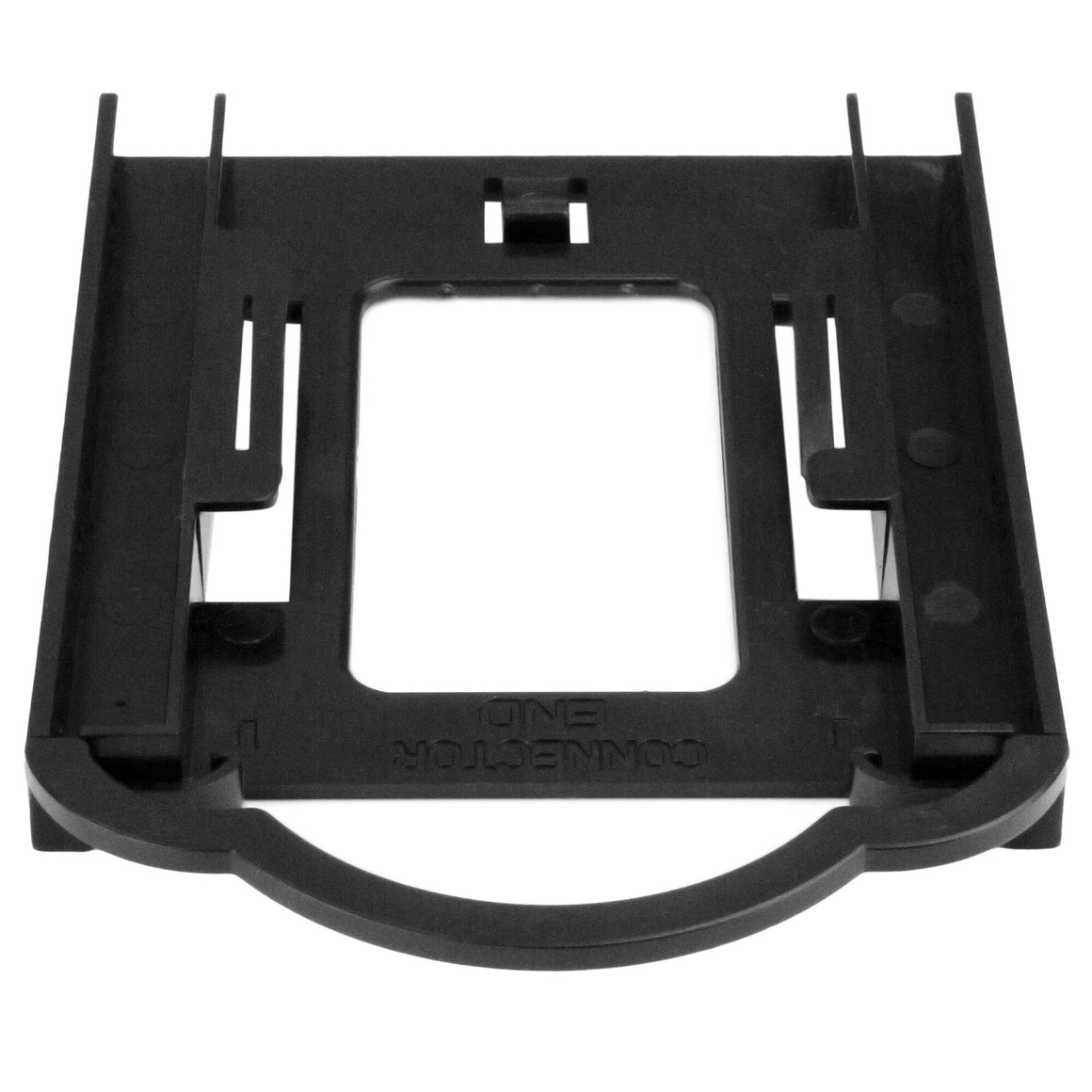

This mounting bracket lets you quickly install a 2.5" SSD or HDD into a single 3.5" bay in a desktop PC or server, with no tools required. The tool-less mounting bracket supports a 2.5" solid-state drive or hard drive from 7 mm to 9.5 mm in height.
Save time with easy, tool-less drive installation
The mounting bracket’s tool-less design makes it fast and easy to install a 2.5" drive in a computer or server, without the need for additional hardware or tools. It’s ideal for system administrators and integrators who are building or upgrading a computing solution for a wide range of businesses and organizations, including schools and hospitals, saving valuable time and effort on installation projects.
Designed for trouble-free use

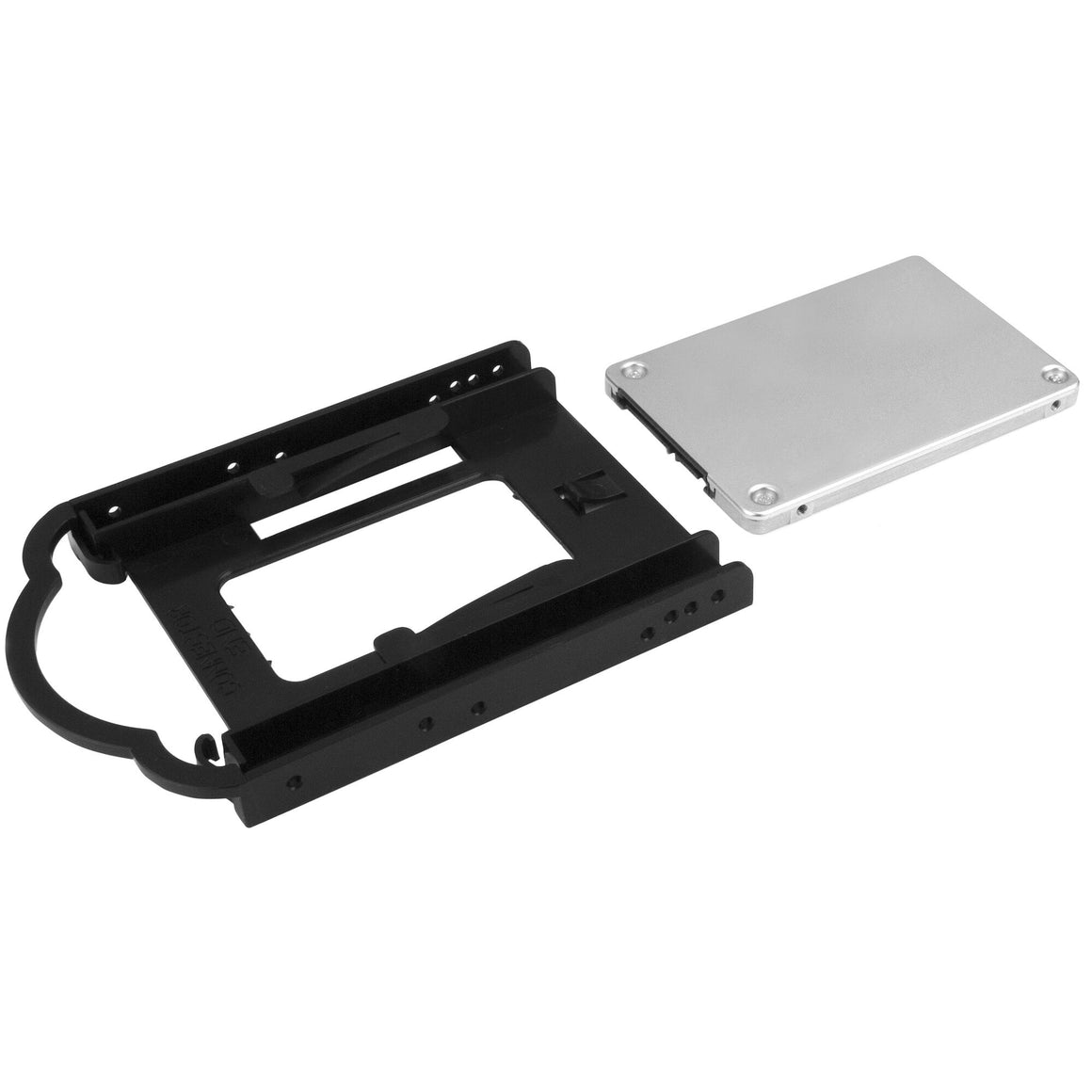

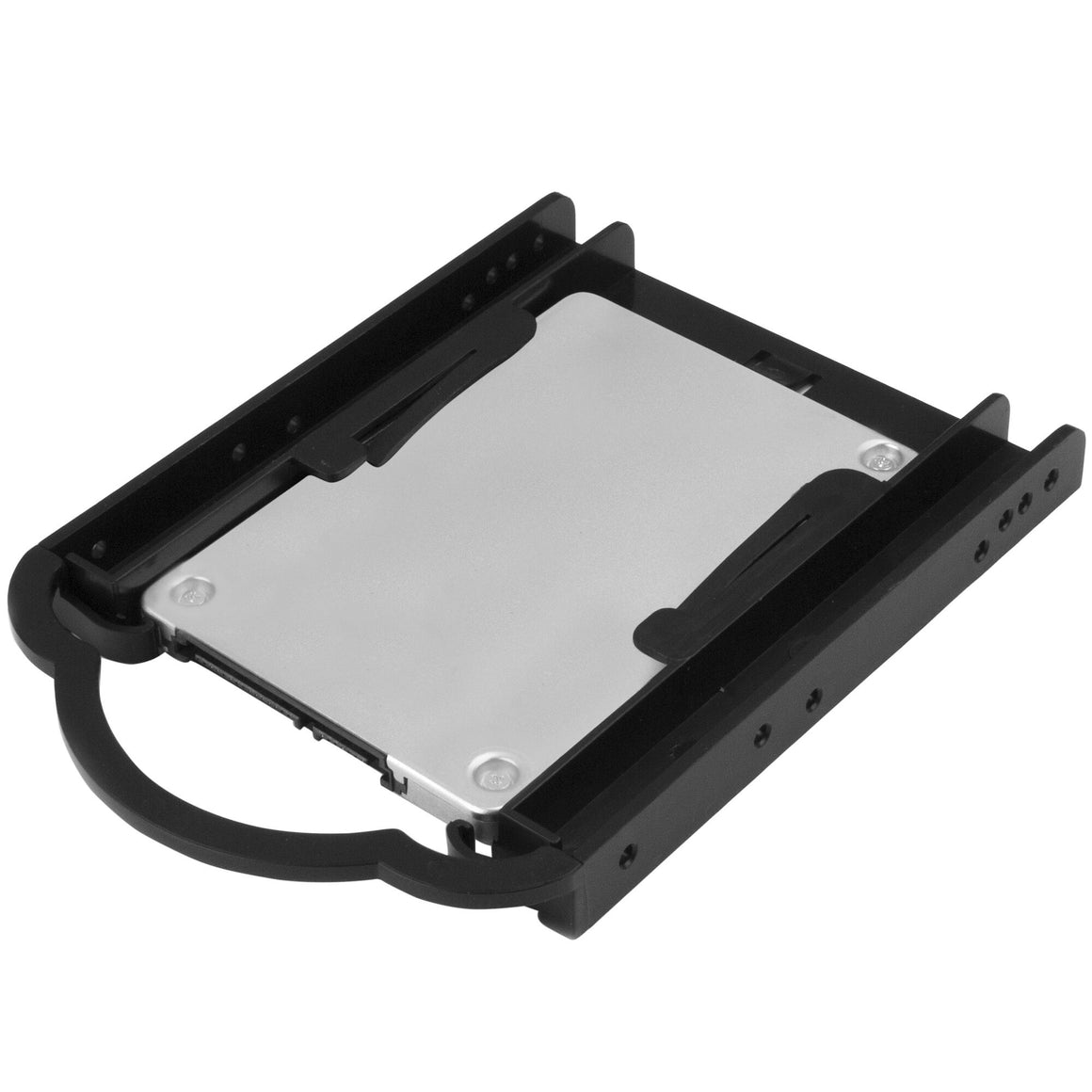

The lightweight mounting bracket is designed for trouble-free, reliable performance. To install a drive, you simply secure it into the mounting bracket, without using tools. Then, you put the bracket into a 3.5" drive bay in your computer and the bracket holds the drive in place using the tool-less plastic pegs.
The BRACKET125PT is backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
| Features |
|---|
| Supported storage drive heights |
7,9.5 mm |
| Material |
Plastic |
| HDD interface |
IDE/ATA, Serial ATA, Serial ATA II, Serial ATA III, Serial Attached SCSI (SAS) |
| HDD size |
2.5" |
| Number of HDDs supported |
1 |
| Product colour |
Black |
| Type |
Carrier panel |
| Size (imperial) |
8.89 cm (3.5") |
| Weight & dimensions |
|---|
| Width |
102 mm |
| Depth |
150 mm |
| Height |
13 mm |
| Weight |
33 g |
| Packaging data |
|---|
| Package weight |
60 g |
| Package depth |
156 mm |
| Package height |
21 mm |
| Package width |
111 mm |

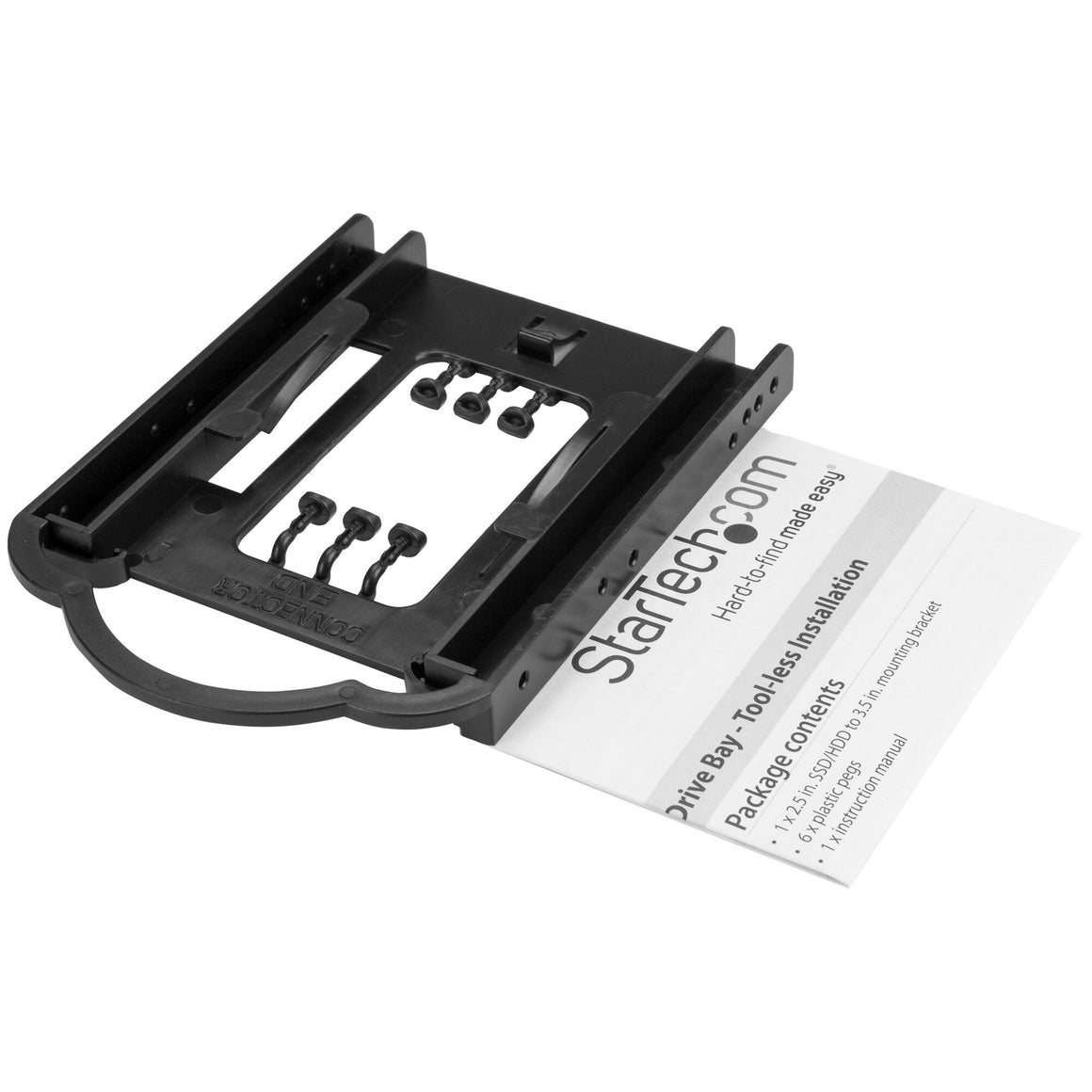

| Packaging content |
|---|
| Number of pegs |
6 |
| Quick start guide |
Yes |
| Sustainability |
|---|
| Sustainability compliance |
Yes |
| Technical details |
|---|
| Compliance certificates |
CE, RoHS |
| Logistics data |
|---|
| Harmonized System (HS) code |
84733080 |
| Products per master (outer) case |
100 pc(s) |
| Master (outer) case width |
332 mm |
| Master (outer) case length |
538 mm |
| Master (outer) case height |
254 mm |
