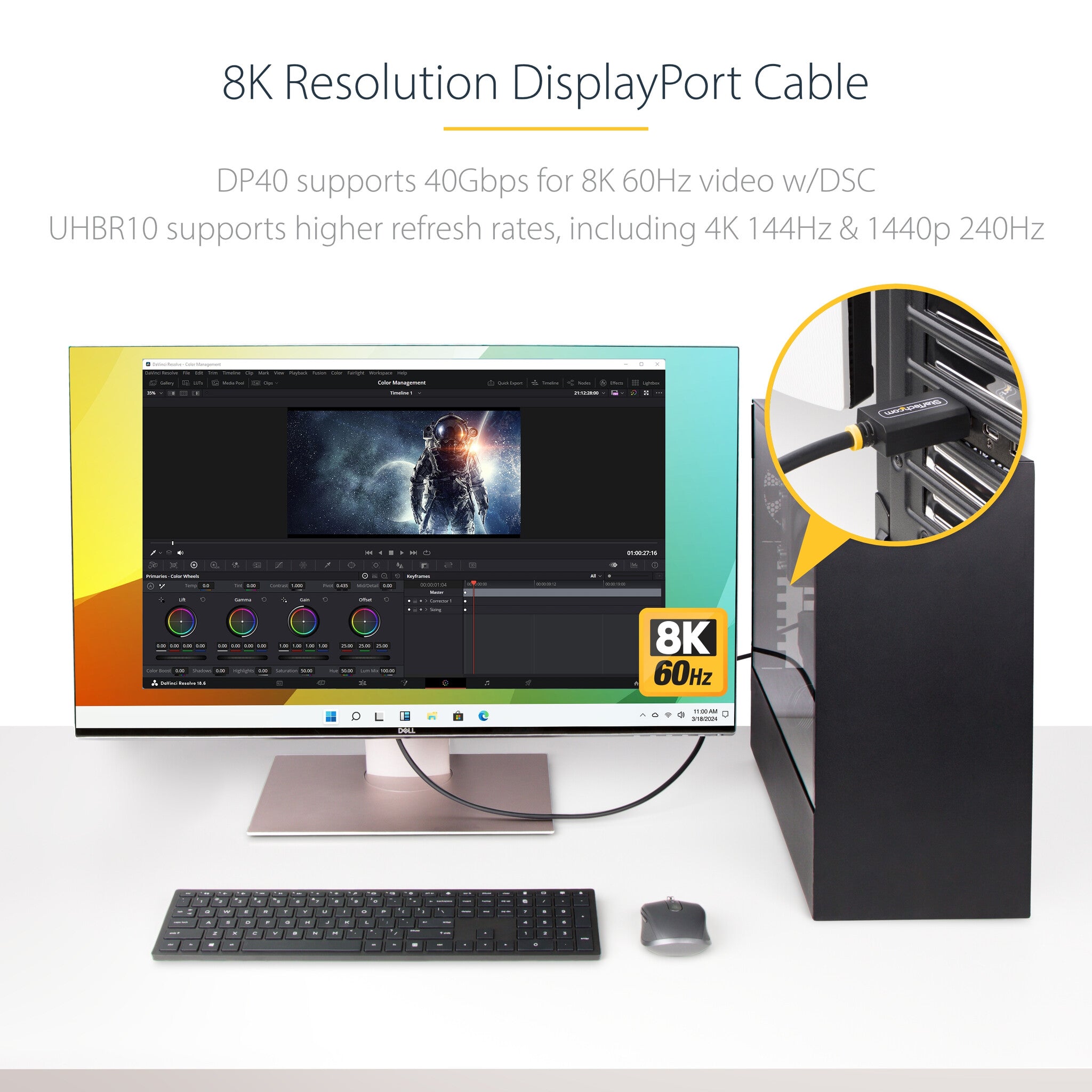

Facilitate higher refresh rates and 8K 60Hz video on UHBR10-enabled DisplayPort devices

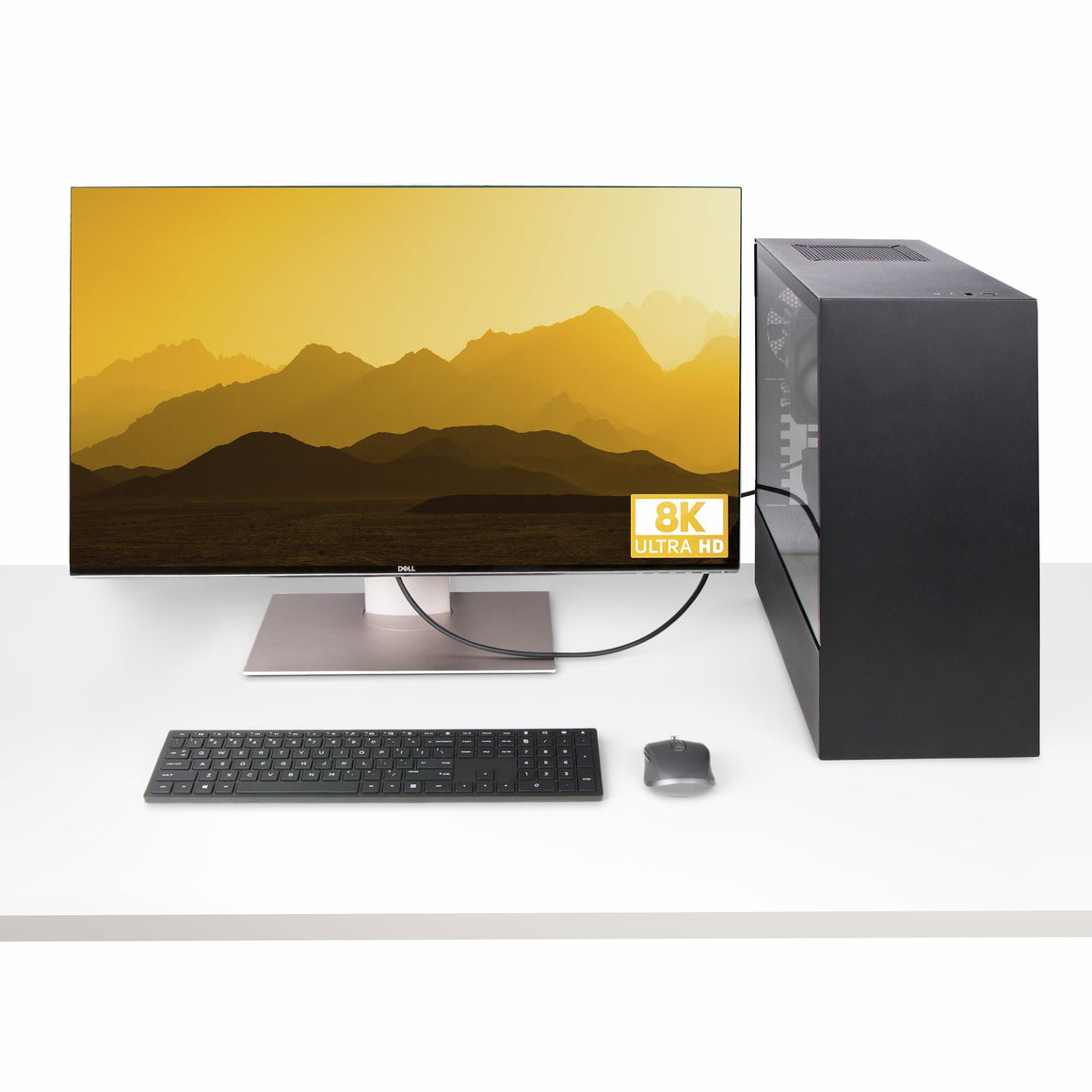

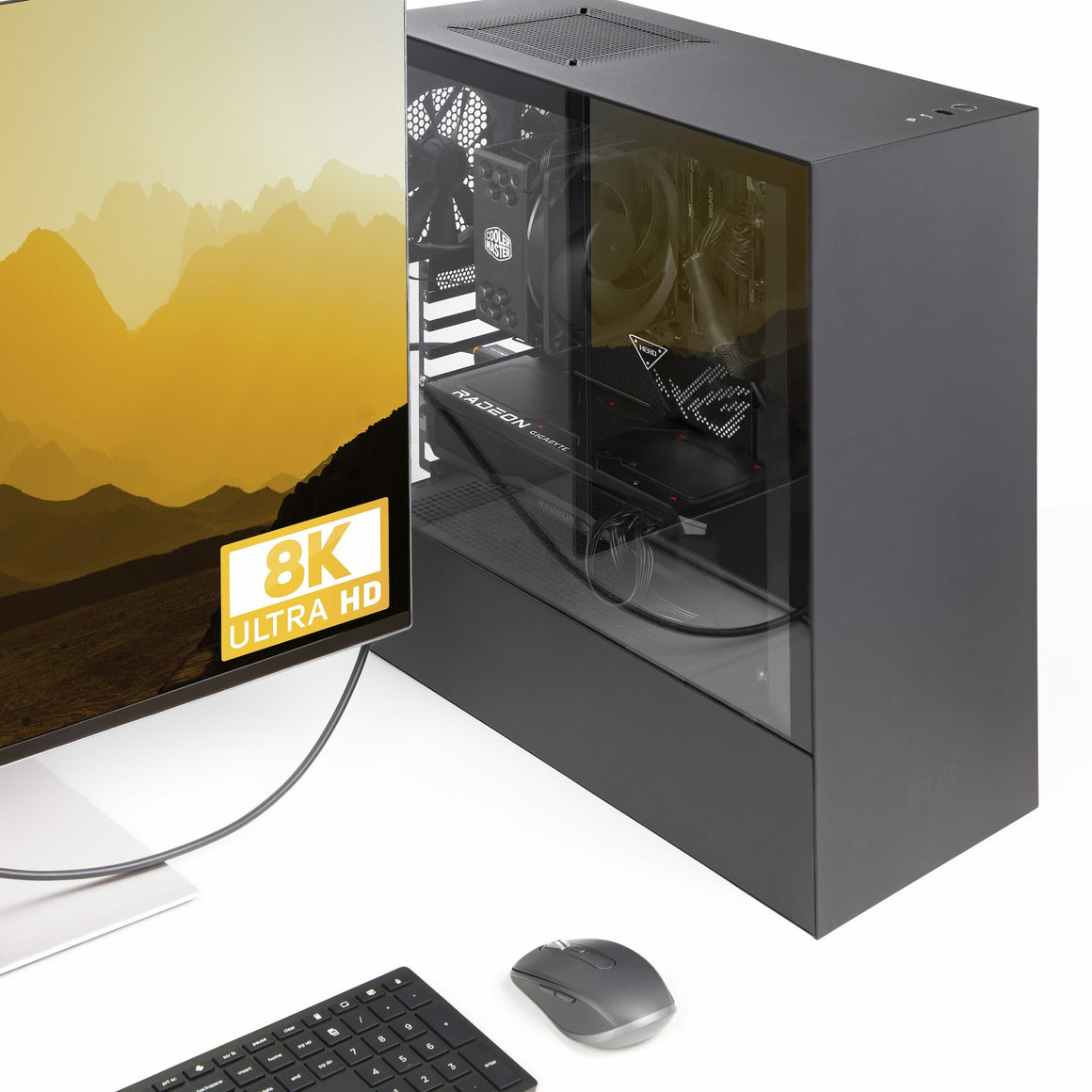

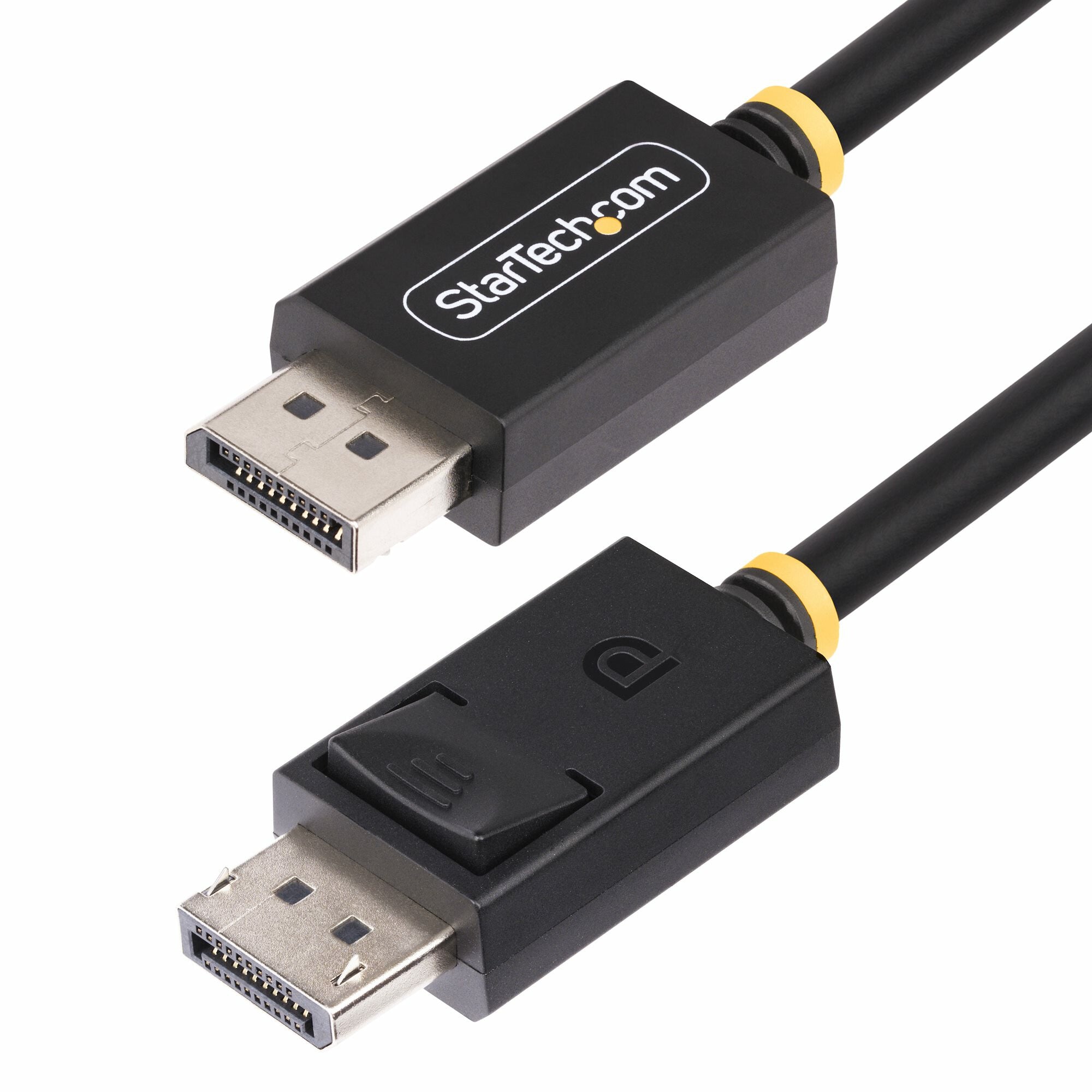

Connect an 8K/4K UHD DisplayPort monitor to a host computer or MST hub, using this VESA-Certified DisplayPort 2.1 DP40 Cable. This cable facilitates high bandwidth video and multi-channel audio and is ideal for 8K workstations, high performance GPUs, and dedicated AV applications including media production and content creation.
Seamless Compatibility

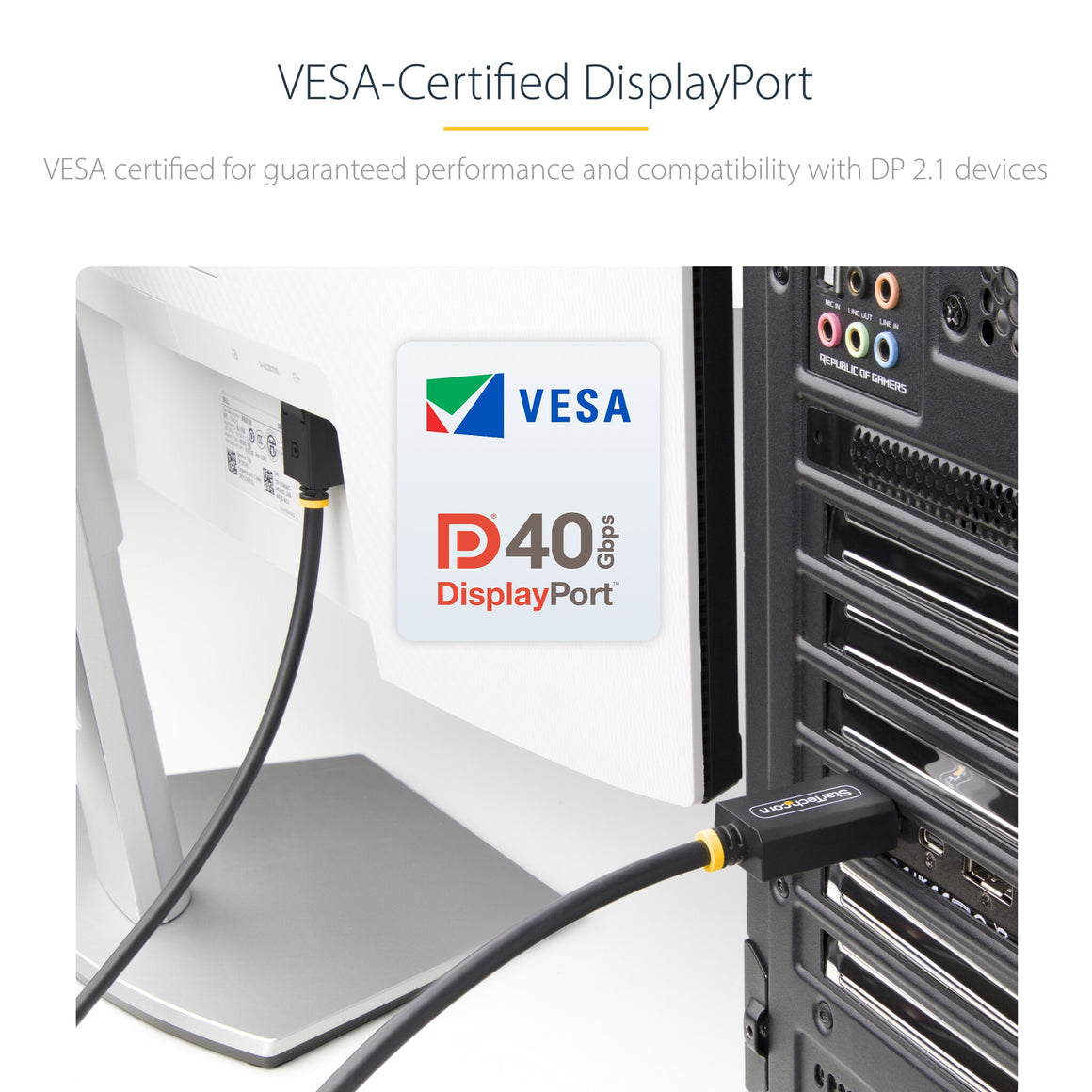

For seamless operation between DisplayPort-enabled devices, the DisplayPort 2.1 Cable is VESA Certified for guaranteed DP 2.1 and backward compatibility (DP 2.0/1.4/1.2). It supports G-Sync and FreeSync, enhancing Variable Refresh Rate (VRR) performance for optimal picture quality between high-capacity GPUs and supported displays.

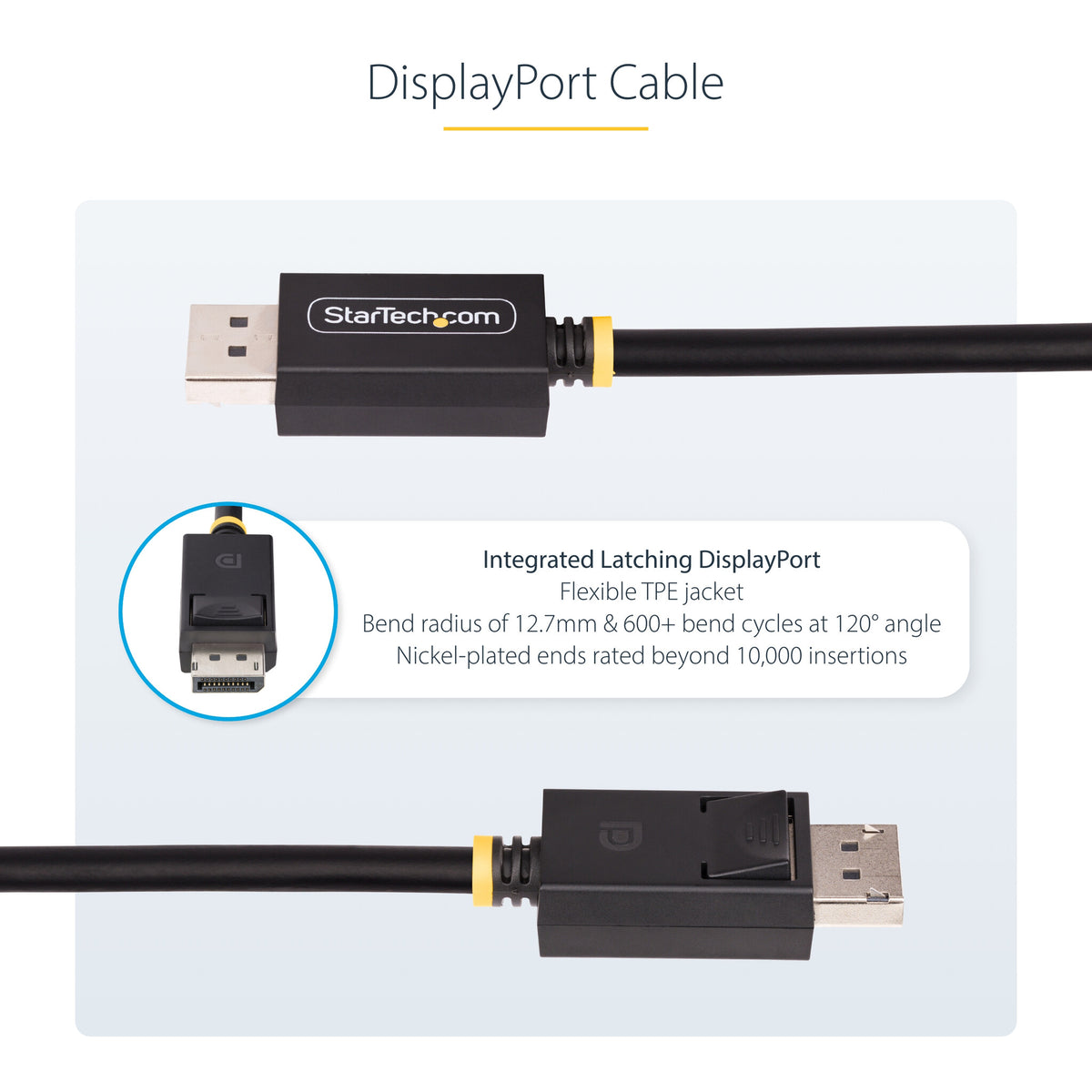

Durable Design

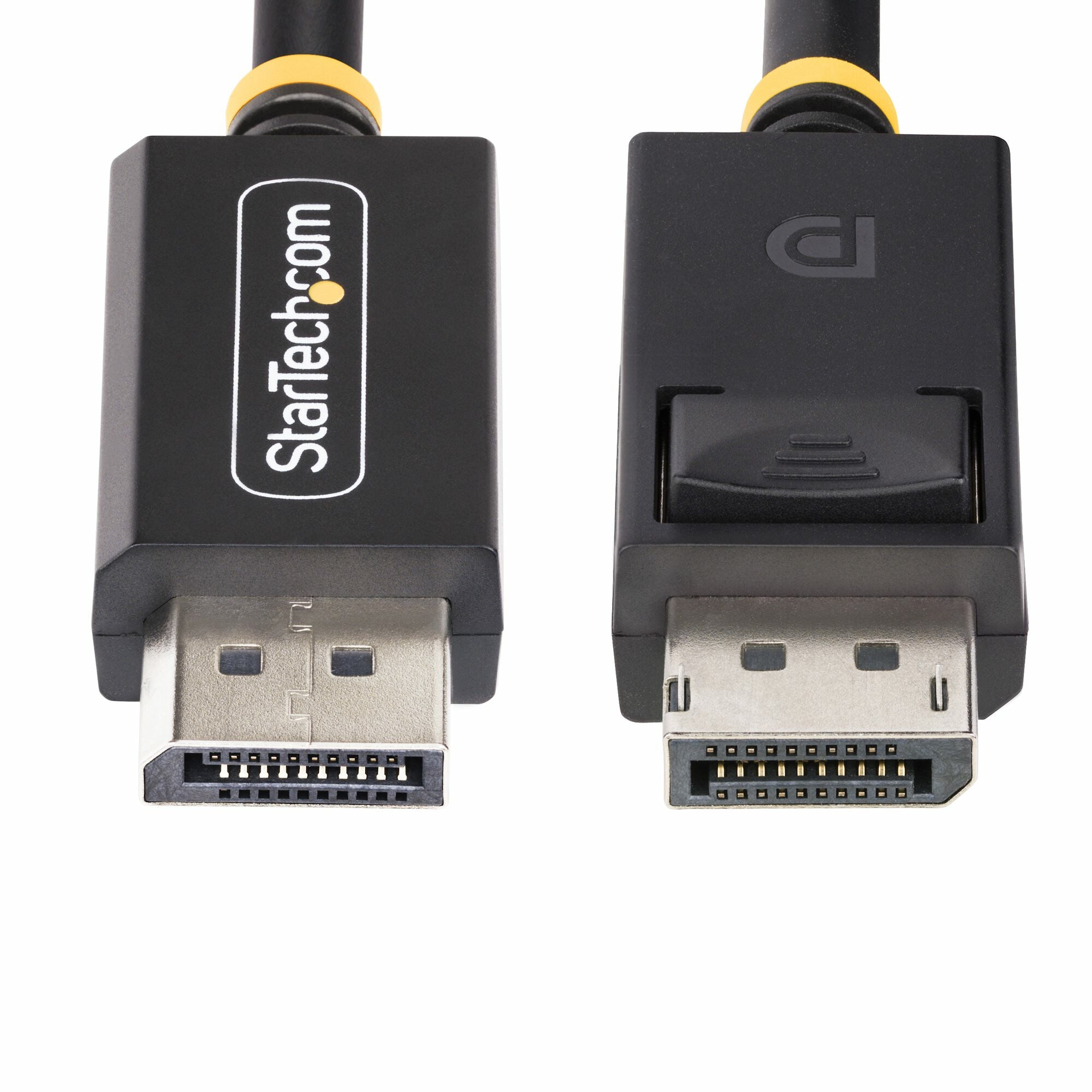

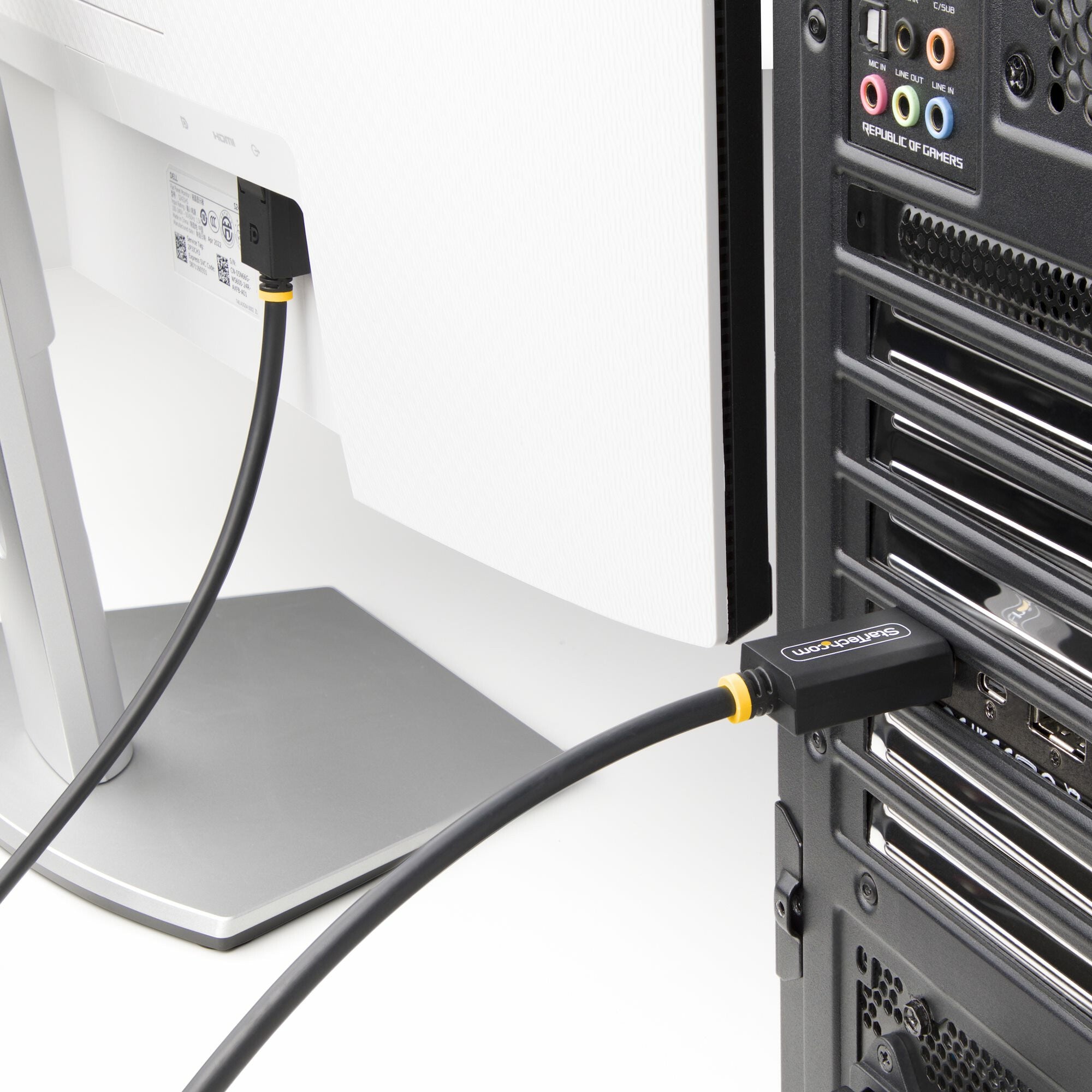

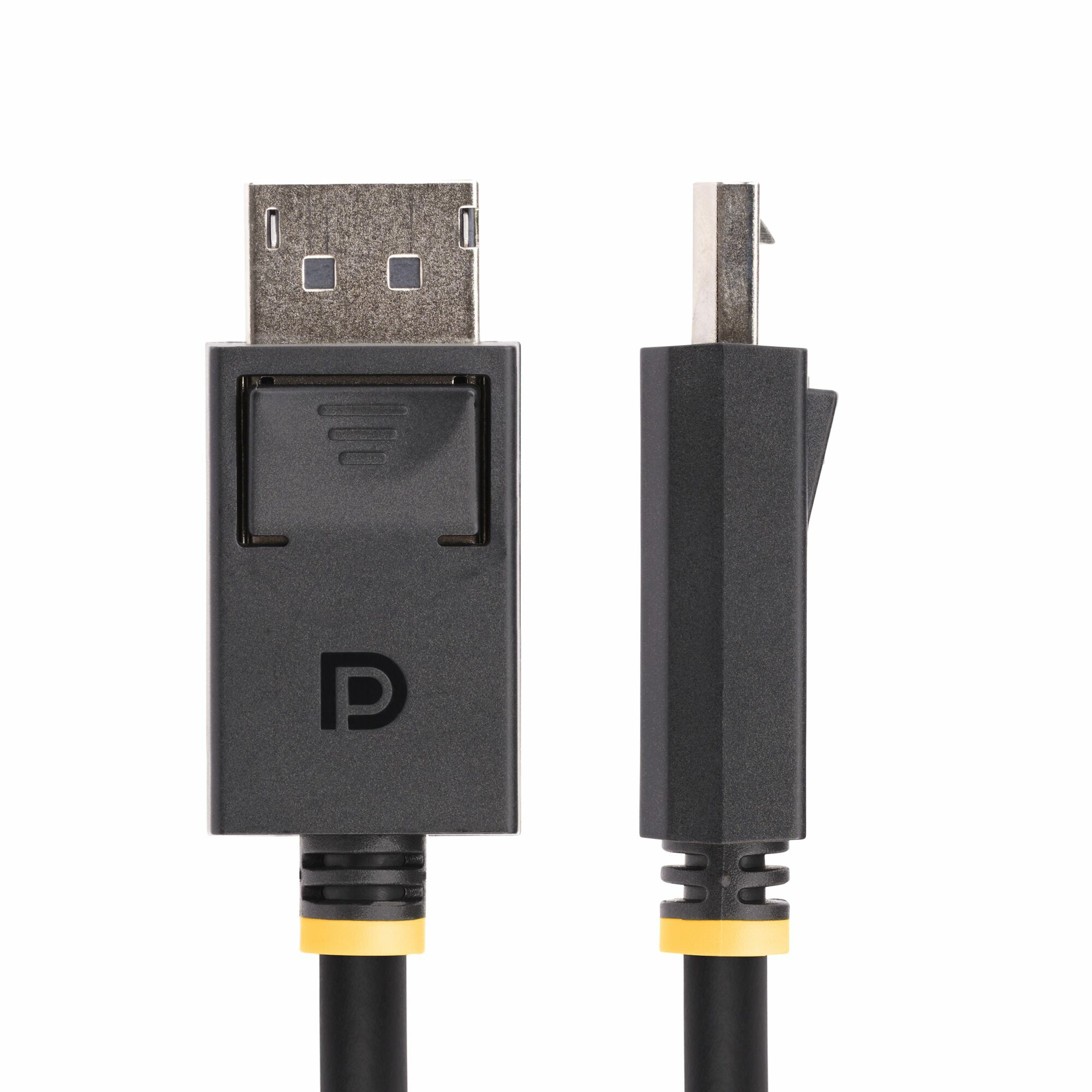

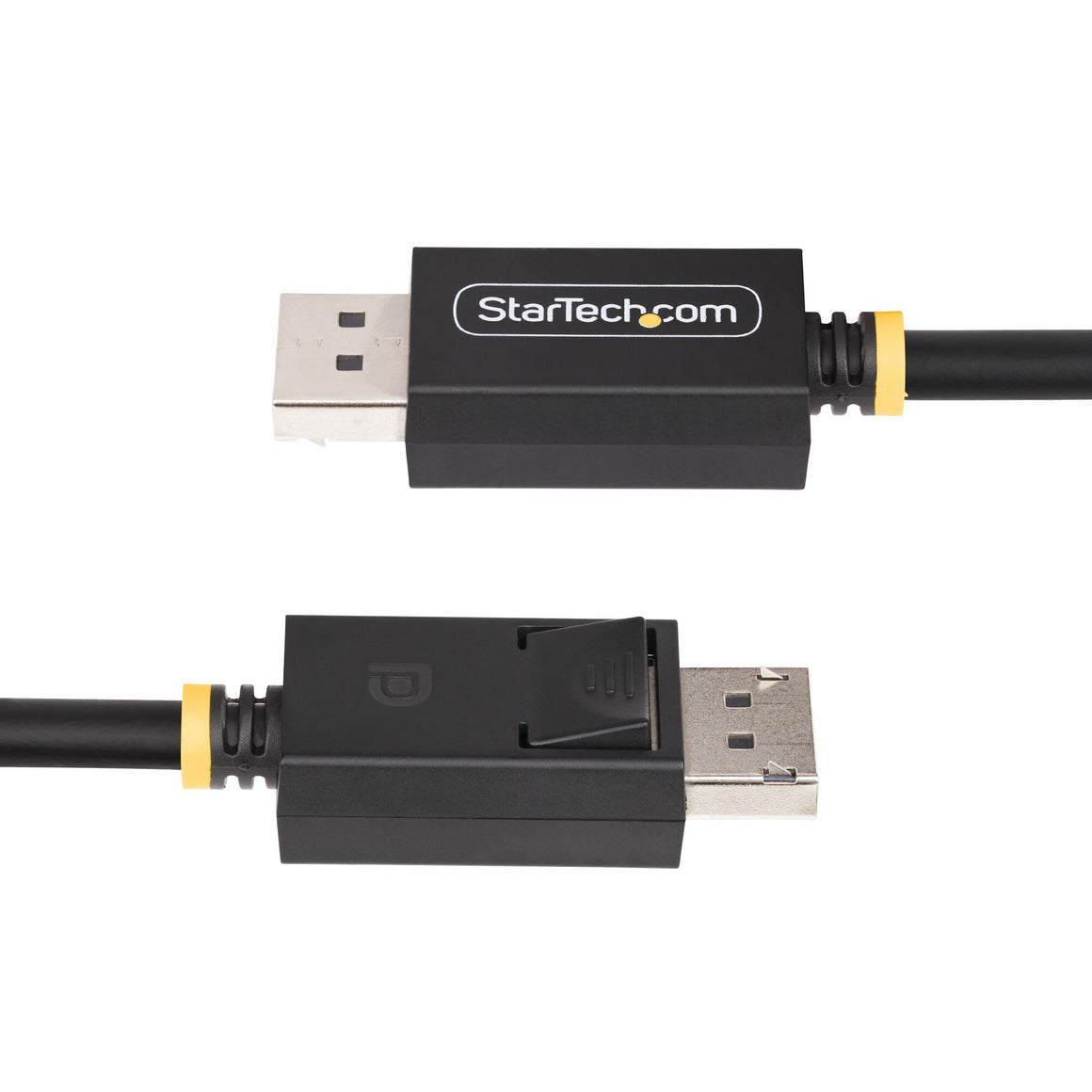

This DisplayPort cable features a flexible TPE outer jacket that is tested to withstand 600 bending cycles at -/+60 degrees, and routes easily around corners and desk edges. Robust strain reliefs enable convenient positioning of the cable, and latching nickel-plated DP connectors attach securely to prevent accidental disconnection. The connectors are rated to operate beyond 10,000 insertions.
Supported DisplayPort 2.1 Features:
This DP40 DisplayPort cable supports the following DP 2.1 features:

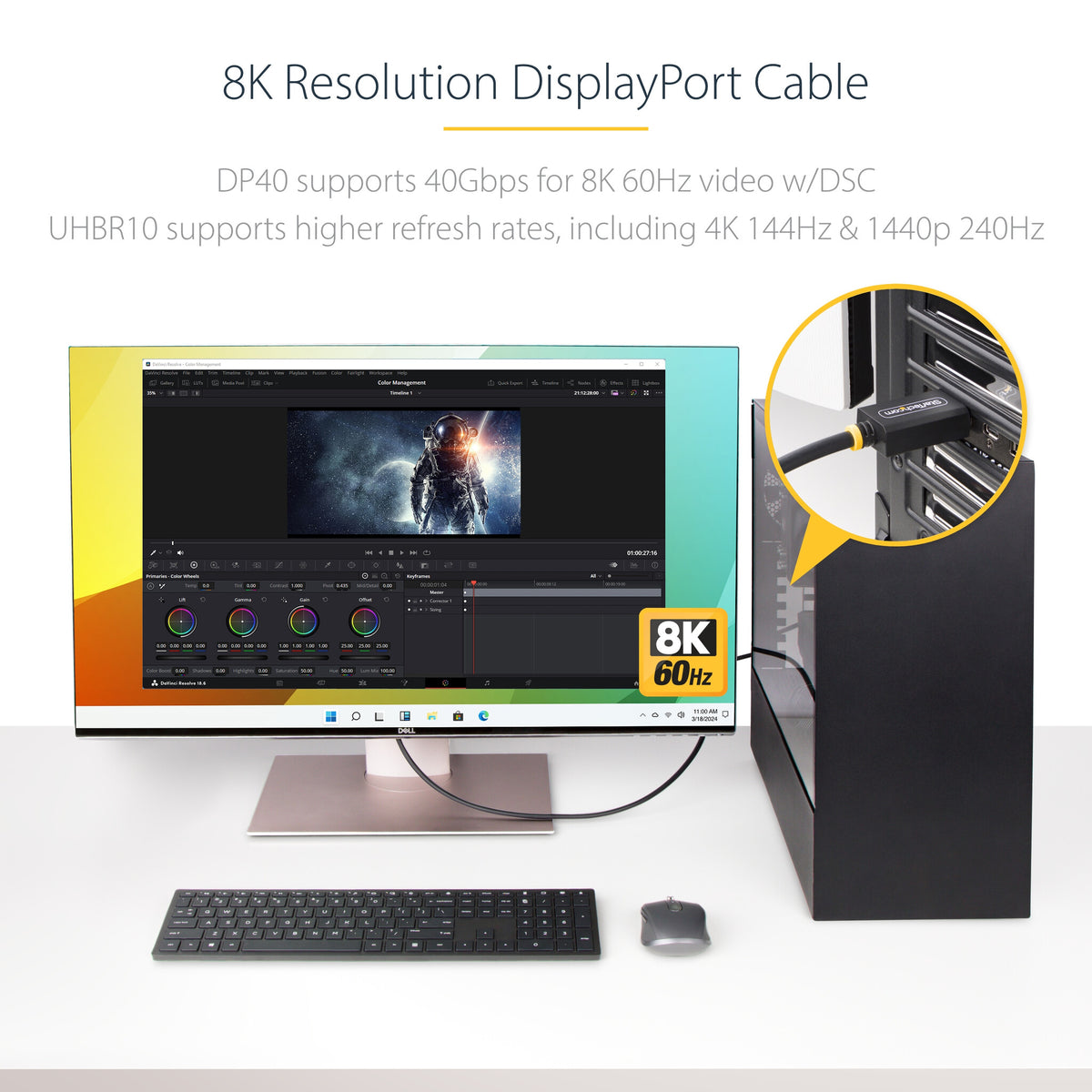

• Resolutions up to 8K 60Hz w/DSC, using a compatible DP source and display
• UHBR10 supports high refresh rates including 4K 120Hz and 1440p 240Hz
• High-Bandwidth Digital Content Protection (HDCP) 2.2 for a secure connection between source and display
• High Dynamic Range 10 (HDR10) for higher contrast ratio and vibrant picture quality
• Display Stream Compression (DSC) 1.2a for maximum resolution output
• Multi-Stream Transport (MST) for daisy-chaining multiple monitors
• 32 Uncompressed Digital Audio Channels
• Backward compatible with previous DP versions
This DP 2.1 Cable is constructed with braided aluminum mylar shielding to minimize EMI for clear, consistent audio/video output and long-term reliable performance.
The StarTech.com Advantage
| Features |
|---|
| Fire-resistance rating |
VW-1 |
| Channels quantity |
32 channels |
| Data transfer rate |
40 Gbit/s |
| High Dynamic Range (HDR) supported |
Yes |
| AWG wire size |
30 |
| Jacket material |
Thermoplastic elastomer (TPE) |
| Cable shielding |
Aluminum mylar foil |
| Cable material |
Copper |
| Product colour |
Black |
| Display Stream Compression (DSC) version |
1.2a |
| Display Stream Compression (DSC) |
Yes |
| HDCP version |
2.2 |
| HDCP |
Yes |
| Maximum refresh rate |
144 Hz |
| Maximum resolution |
7680 x 4320 pixels |
| DisplayPort version |
2.1 |
| Connector contacts plating |
Nickel |
| Connector 2 form factor |
Straight |
| Connector 1 form factor |
Straight |
| Connector 2 gender |
Male |
| Connector 1 gender |
Male |
| Connector 2 |
DisplayPort |
| Connector 1 |
DisplayPort |

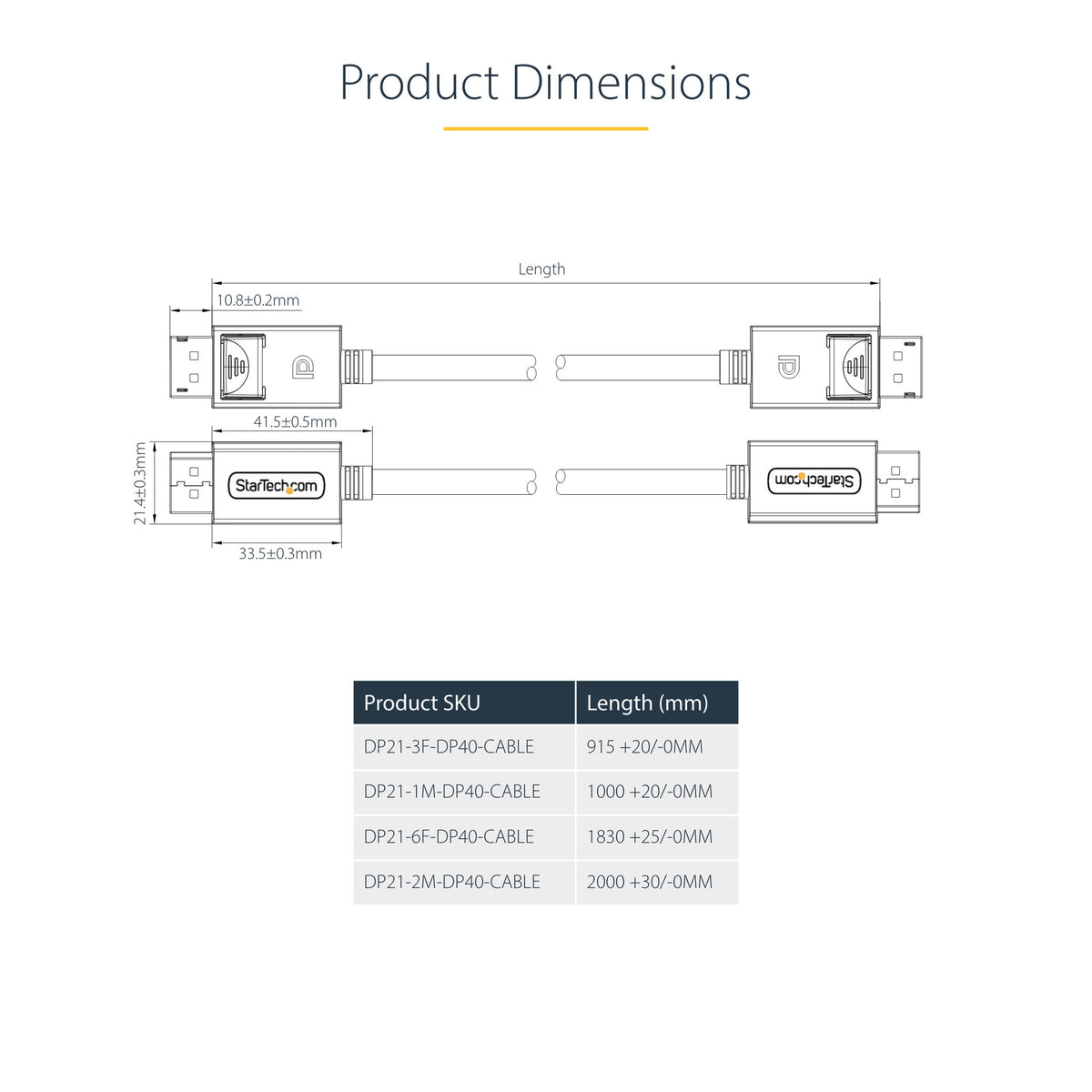

| Cable length |
2 m |
| Operational conditions |
|---|
| Operating relative humidity (H-H) |
10 - 85% |
| Storage temperature (T-T) |
-20 - 70 °C |
| Operating temperature (T-T) |
0 - 45 °C |
| Certificates |
|---|
| Compliance certificates |
RoHS |
| Sustainability |
|---|
| Sustainability compliance |
Yes |
| Weight & dimensions |
|---|
| Weight |
106 g |
| Cable diameter |
6.5 mm |
| Packaging data |
|---|
| Package weight |
120 g |
| Packaging content |
|---|
| Quantity per pack |
1 pc(s) |
