VESA Monitor Mount | Single Monitor up to 20lb | Articulating

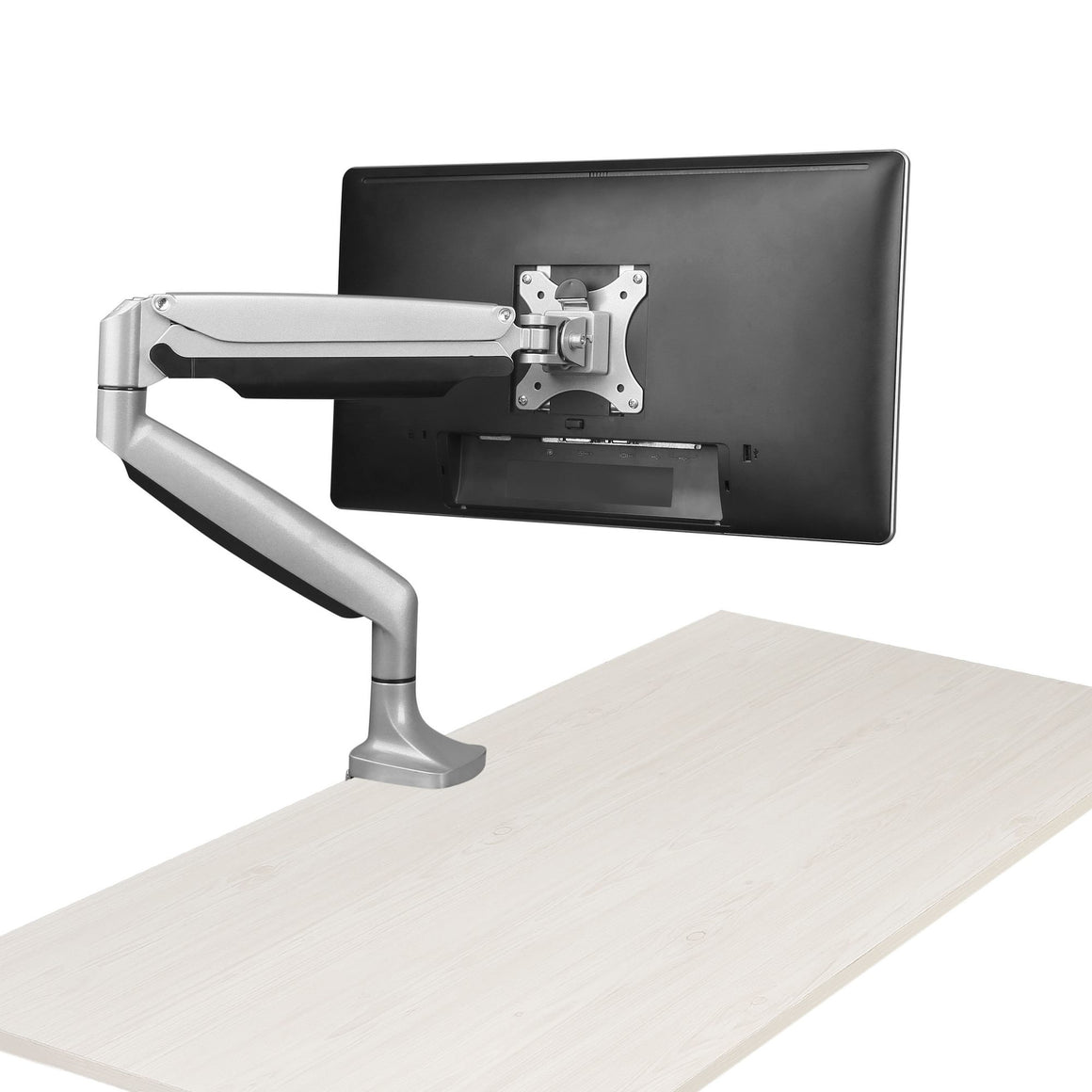

Free up space while creating a more comfortable and productive work environment. This desk-mount monitor arm makes it easy to mount your VESA mount (75x75, 100x100) display above your desk or table and adjust the height with one touch for ideal viewing. Its sleek silver finish enhances the aesthetics of your workspace.
Mount your Monitor to Save Valuable Space

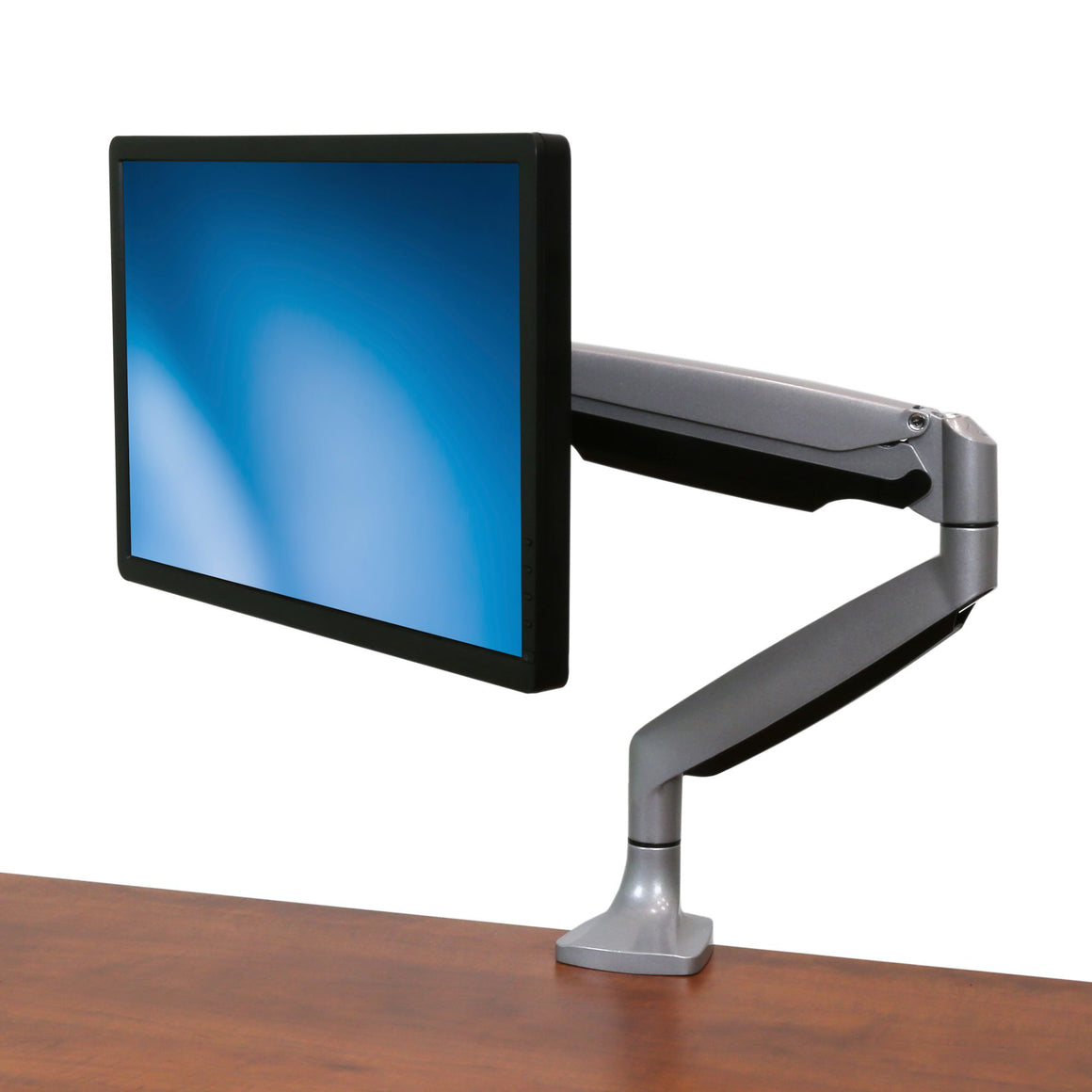

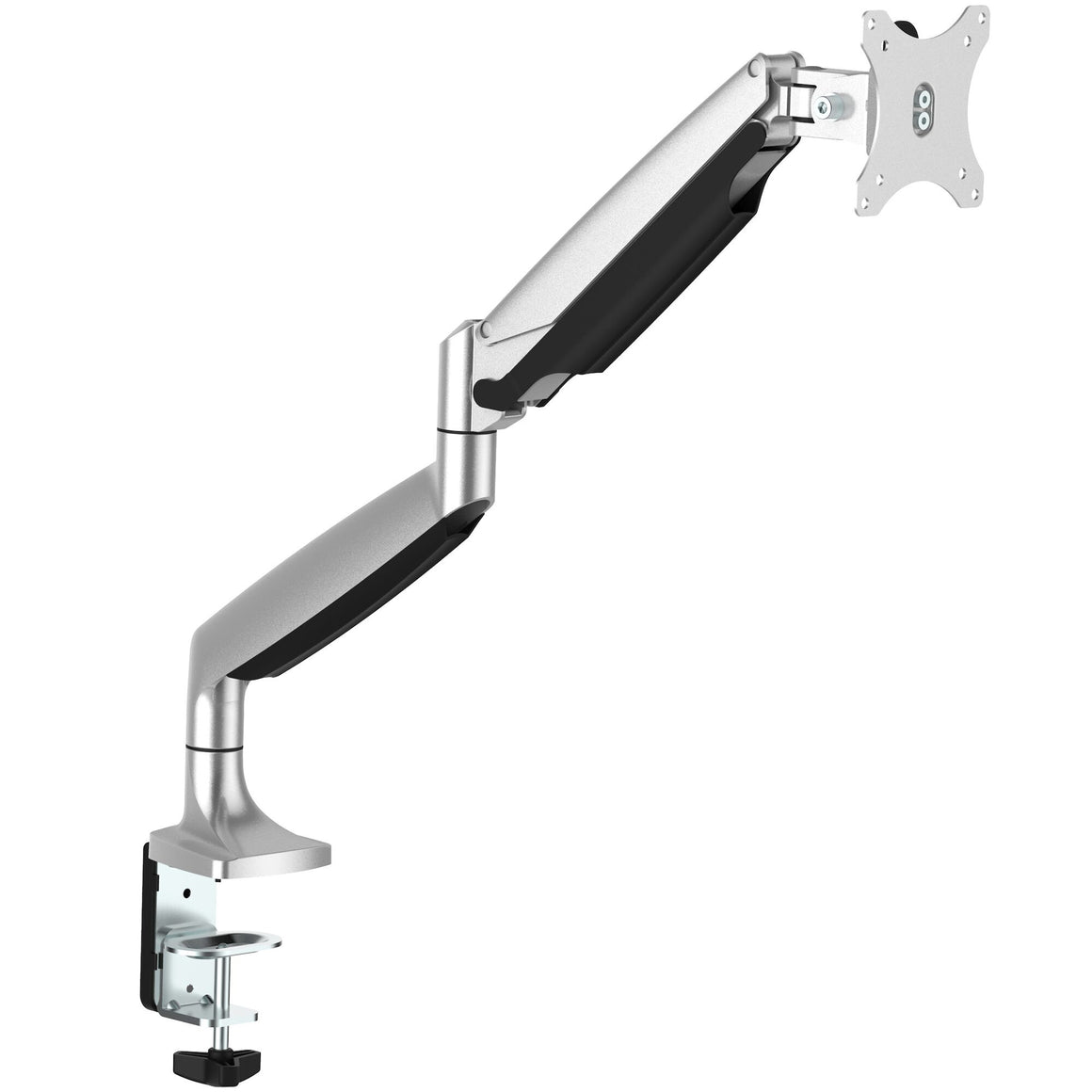

This heavy-duty aluminum monitor arm helps you save space, by securely mounting a computer monitor from 13" to 32" in size and up to 19.9 lb. (9 kg) in weight. It's ideal for many different office applications, such as healthcare or financial settings, shared workspaces, or when you wish to show your display to clients or colleagues.
Easy One-Touch Height Adjustment

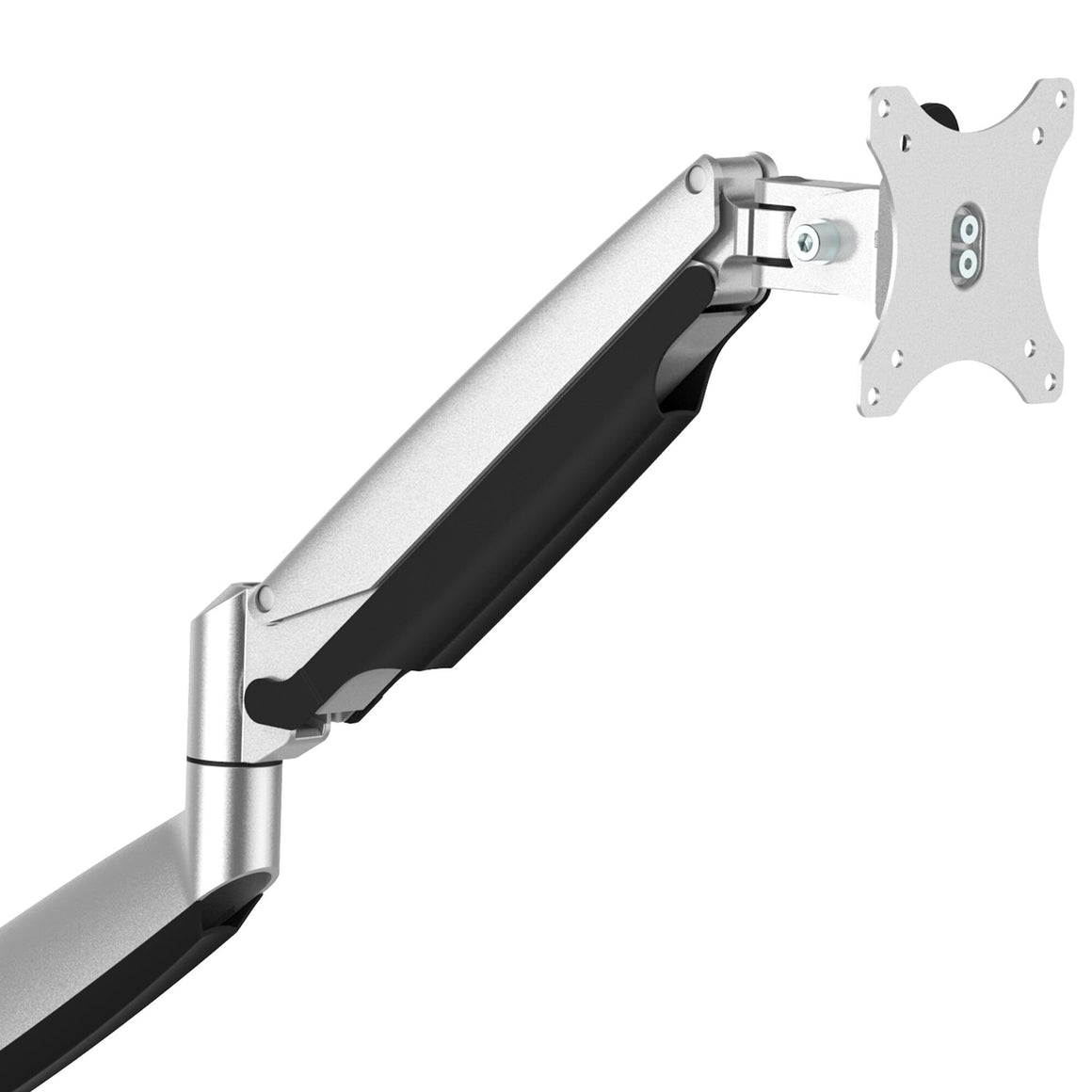

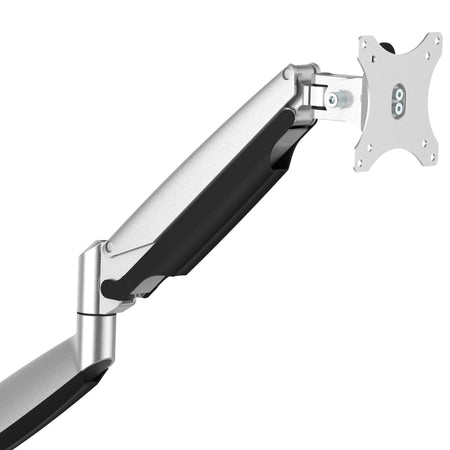

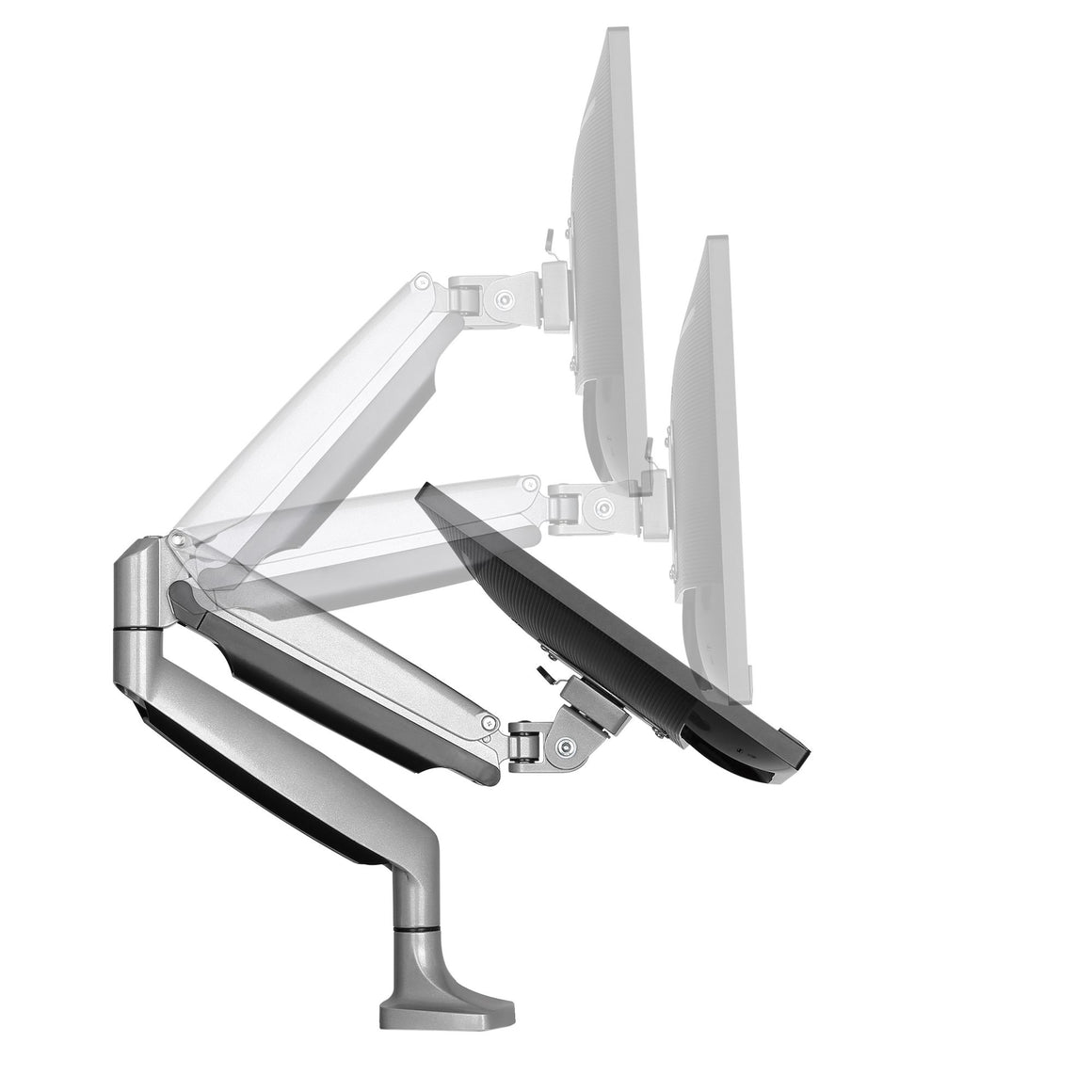

The single monitor arm provides one-touch height adjustment, with a gas-spring cylinder that makes it easy to raise or lower your display. Adjust the tension according to the weight of your monitor, so you can re-position the monitor height effortlessly. The monitor mount provides 13.1" (335 mm) of height adjustment.
Adjust your Monitor Easily

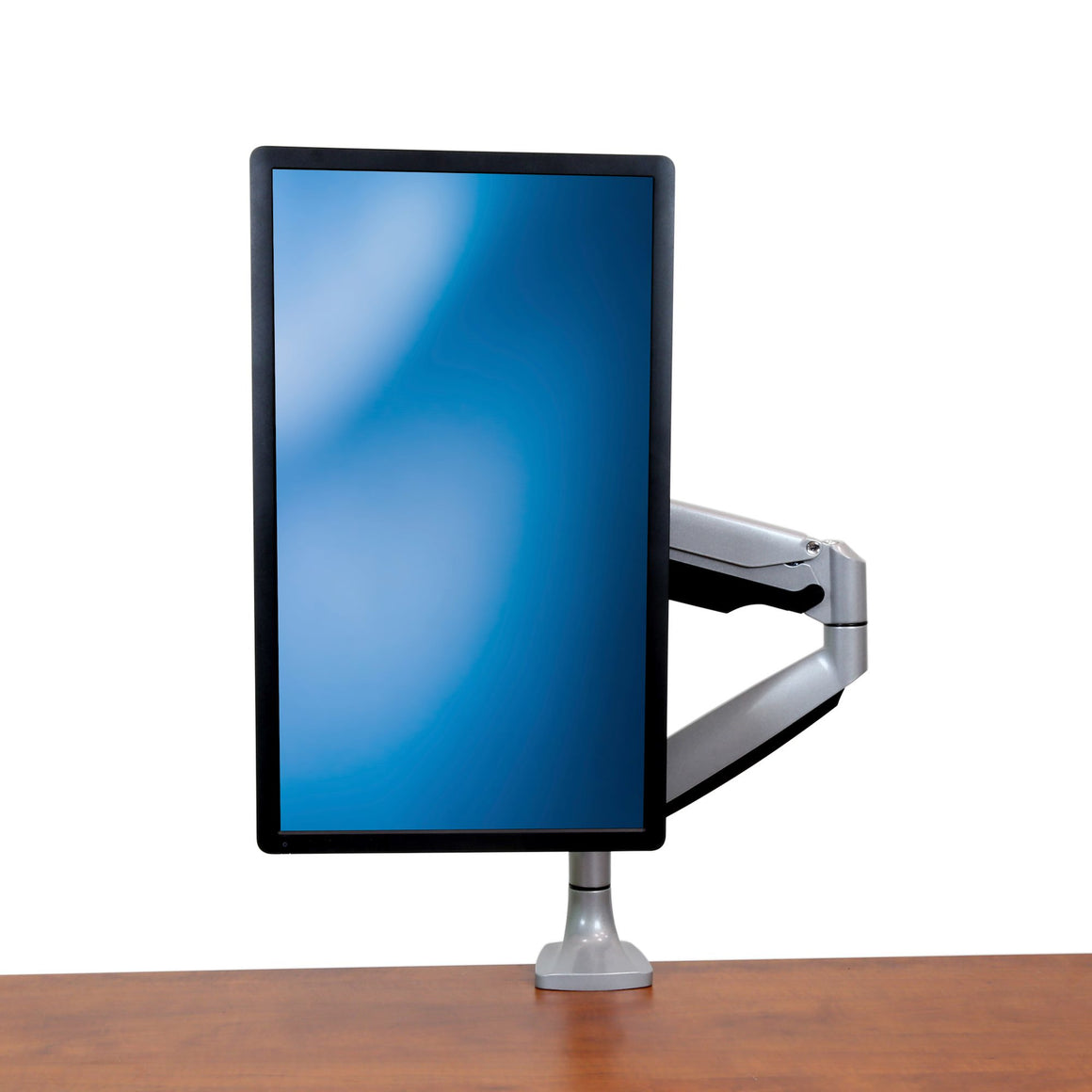

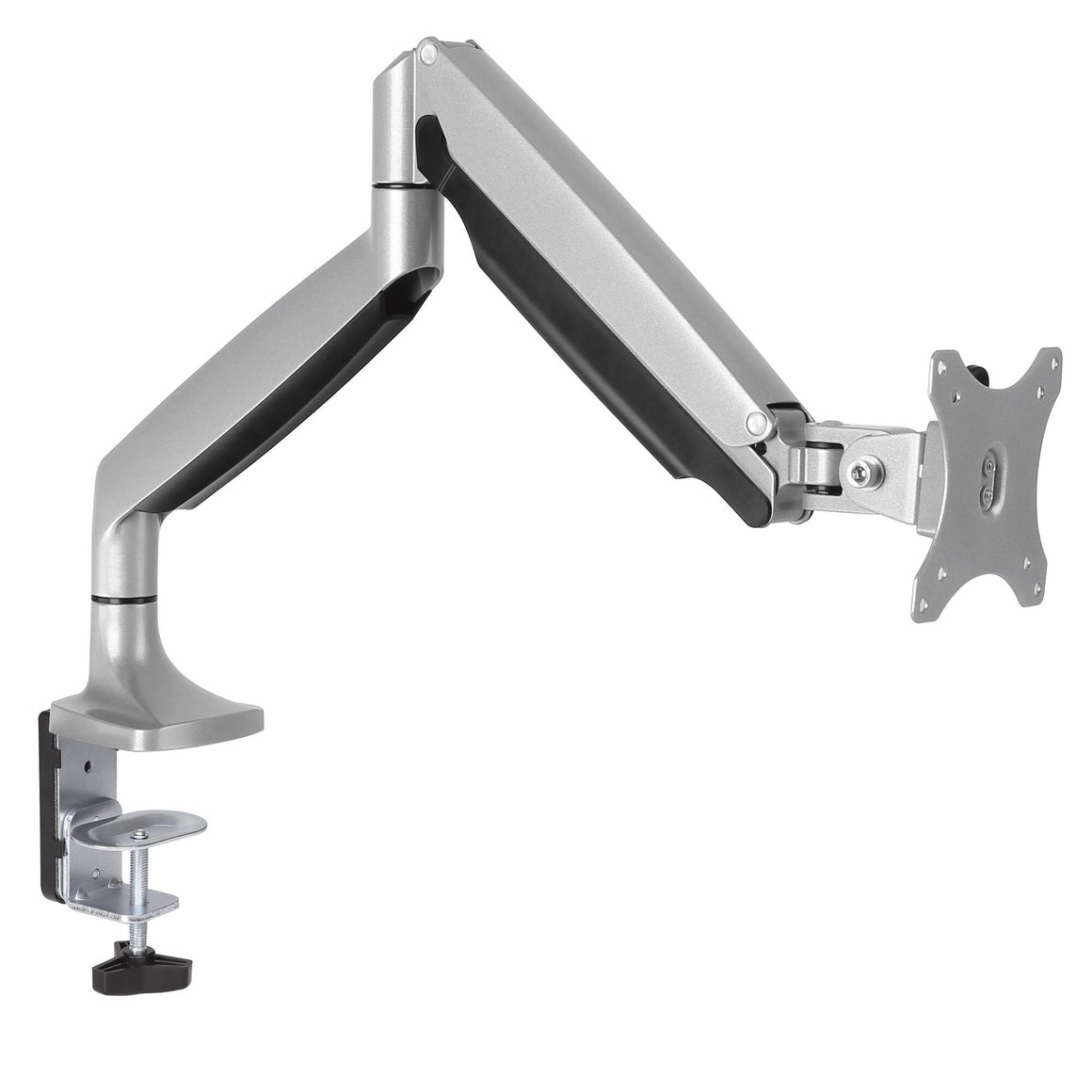

The full-motion articulating arm makes it easy to find the right viewing angle. Swivel your monitor 180 degrees to share your display. The articulating arm also supports 180-degree rotation, for landscape or portrait orientation. For comfortable viewing, tilt your screen +90 to -90 degrees.
Durable Construction and Easy Installation

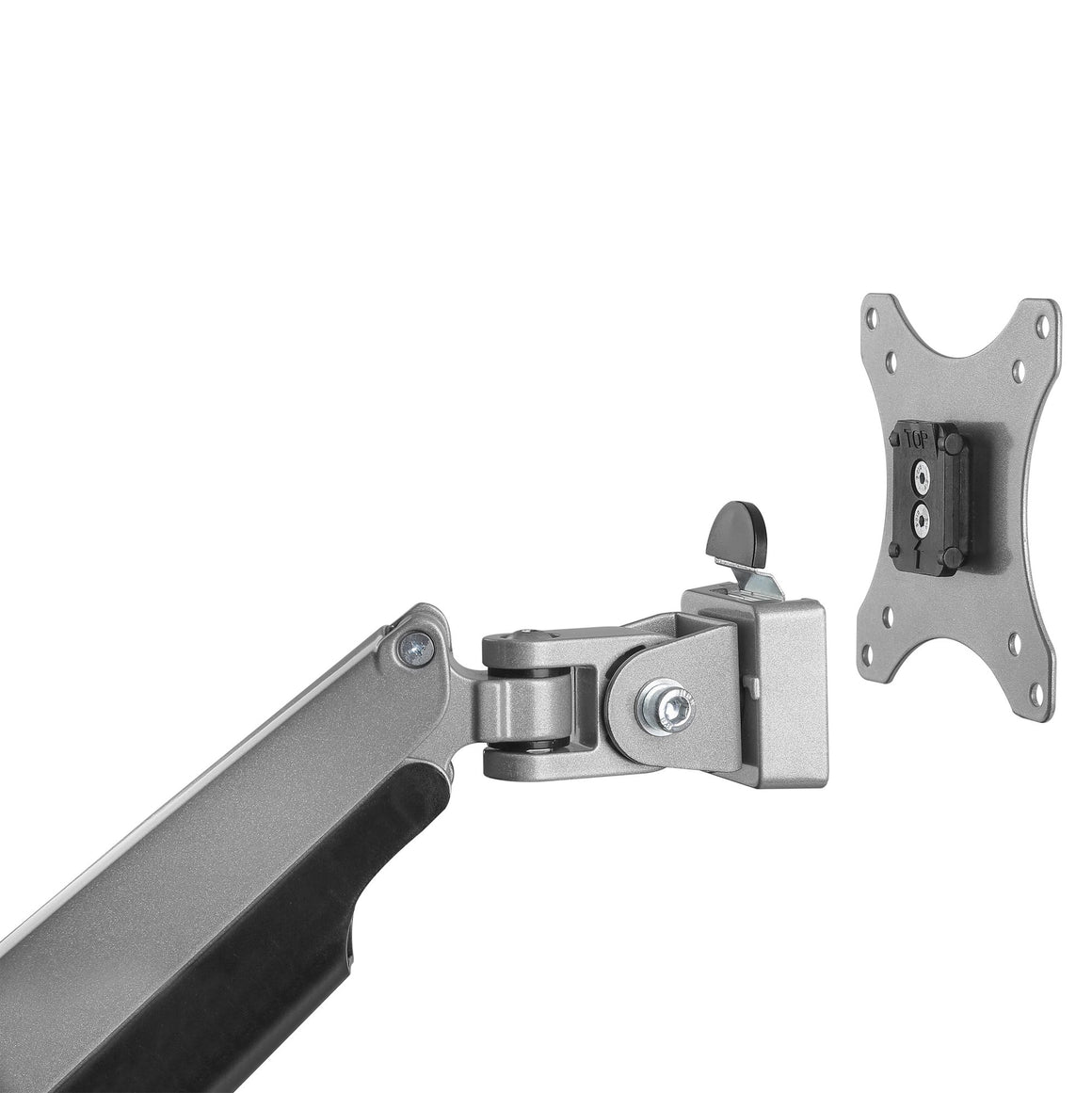

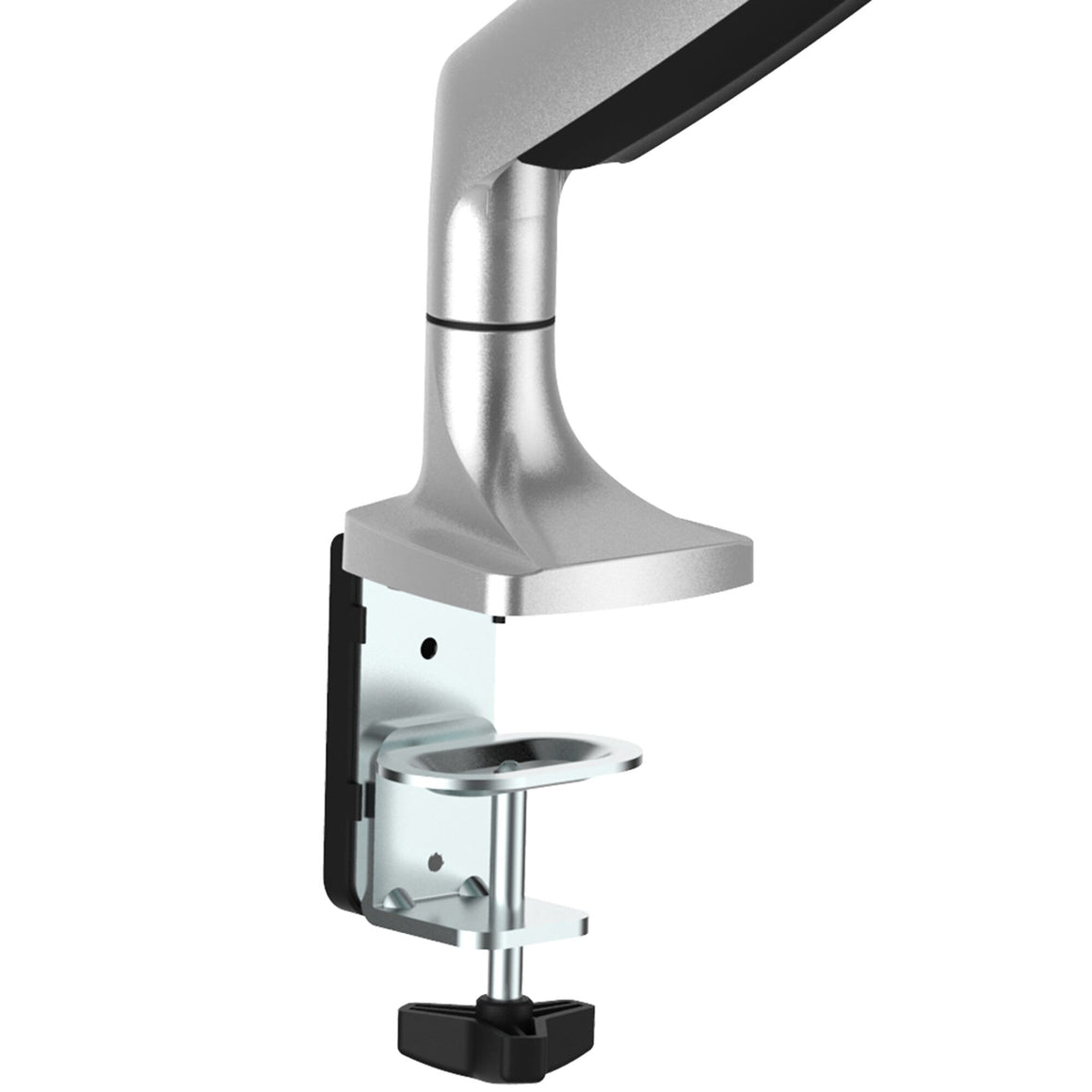

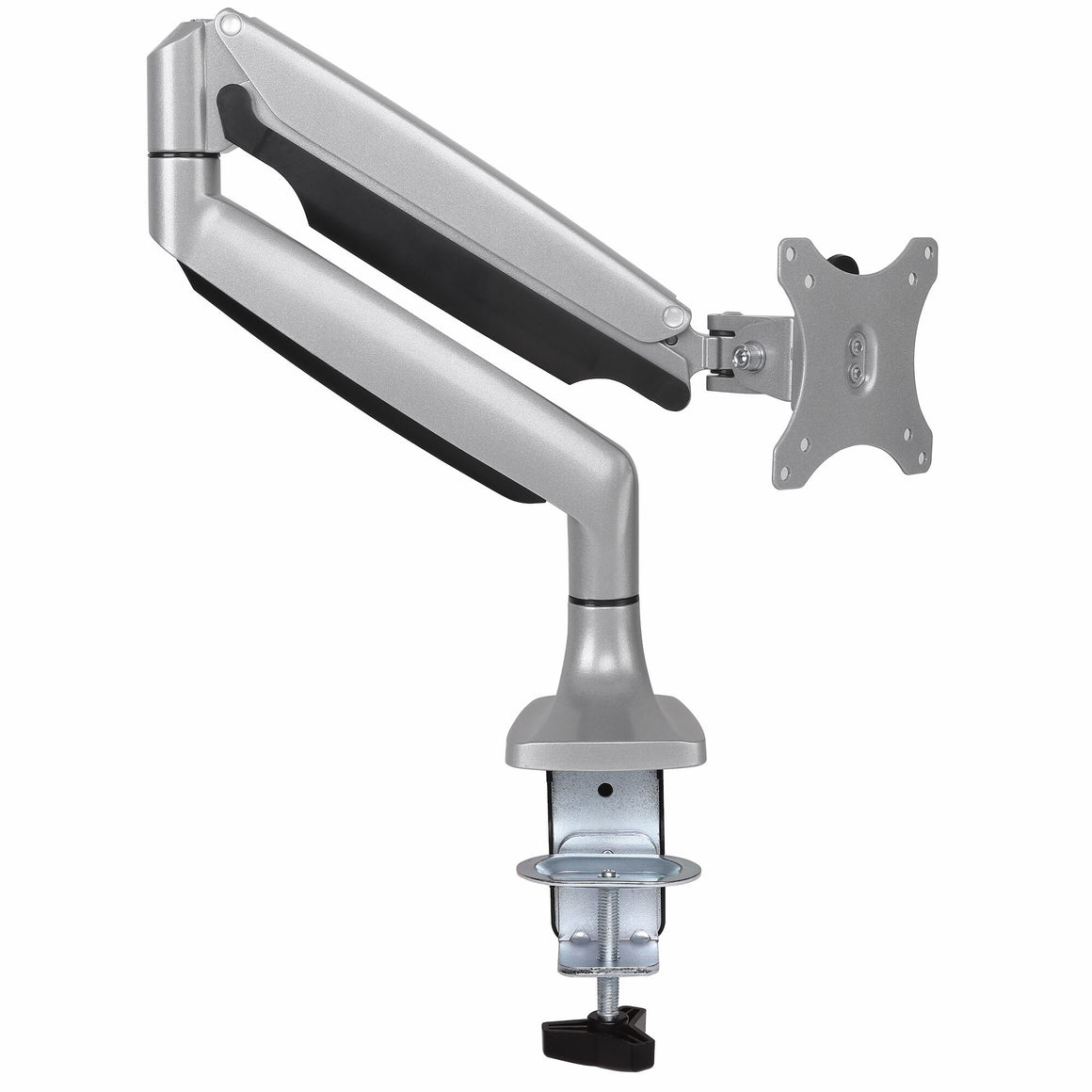

Made of aluminum, the single monitor mount requires minimal assembly and is easy to install with the desk clamp or grommet mount. A detachable VESA mount panel makes it simple to attach or remove your monitor. Built-in cable management helps keep your cables organized.
The ARMPIVOTHD is backed by a StarTech.com 5-year warranty and free lifetime technical support.
The StarTech.com Advantage
| Mounting |
|---|
| Desk thickness (max) |
8.5 cm |
| Desk thickness (min) |
1 cm |
| Number of displays supported |
1 |
| Panel mounting interface |
75 x 75,100 x 100 mm |
| Maximum VESA mount |
100 x 100 mm |
| Minimum VESA mount |
75 x 75 mm |
| Mounting |
Clamp |
| Mounting type |
Desk |
| Maximum screen size |
81.3 cm (32") |
| Minimum screen size |
33 cm (13") |
| Maximum weight capacity |
9 kg |
| Ergonomics |
|---|
| Rubber feet |
Yes |
| Cable management |
Yes |
| Angle of rotation |
180° |
| Swivel angle |
180° |
| Tilt angle range |
-90 - 90° |
| Height adjustment range |
170 - 505 mm |
| Height adjustment |
Yes |
| Design |
|---|
| Product colour |
Silver |
| Weight & dimensions |
|---|
| Weight |
3.1 kg |
| Height |
529 mm |
| Depth |
96 mm |
| Width |
284 mm |
| Packaging data |
|---|
| Package weight |
4.46 kg |
| Package height |
113 mm |
| Package depth |
495 mm |
| Package width |
320 mm |

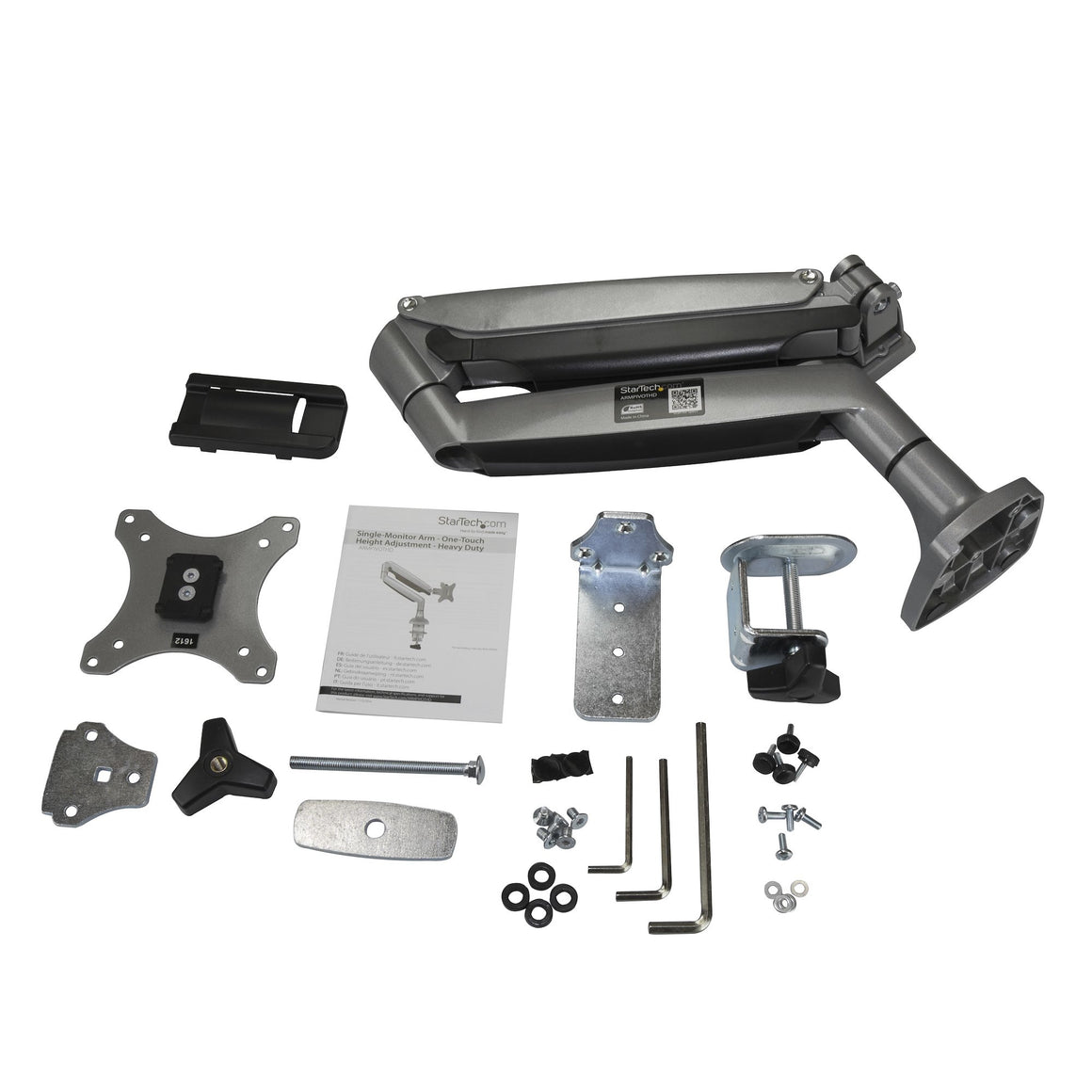

| Packaging content |
|---|
| Manual |
Yes |
| Number of spacers included |
4 |
| Number of washers included |
4 |
| Number of screws |
10 |
| Screws included |
Yes |
| Clamp included |
Yes |
| Wrench type |
Hexagonal wrench |
| Wrench included |
Yes |
| Other features |
|---|
| Certification |
REACH, CE |
| Compliance certificates |
RoHS |
| Logistics data |
|---|
| Harmonized System (HS) code |
85299097 |
| Products per master (outer) case |
4 pc(s) |
| Master (outer) case height |
479 mm |
| Master (outer) case length |
513 mm |
| Master (outer) case width |
328 mm |
