Display Wall Mount | Steel | For 32" to 55" Displays
Maximize space while creating an impressive display. This full-motion TV wall mount, made of heavy-duty steel, securely supports flat-screen TVs from 32" to 55". The arm extends easily to provide smooth, full-motion positioning for ideal viewing.
Mount Your Monitor to Save Valuable Space

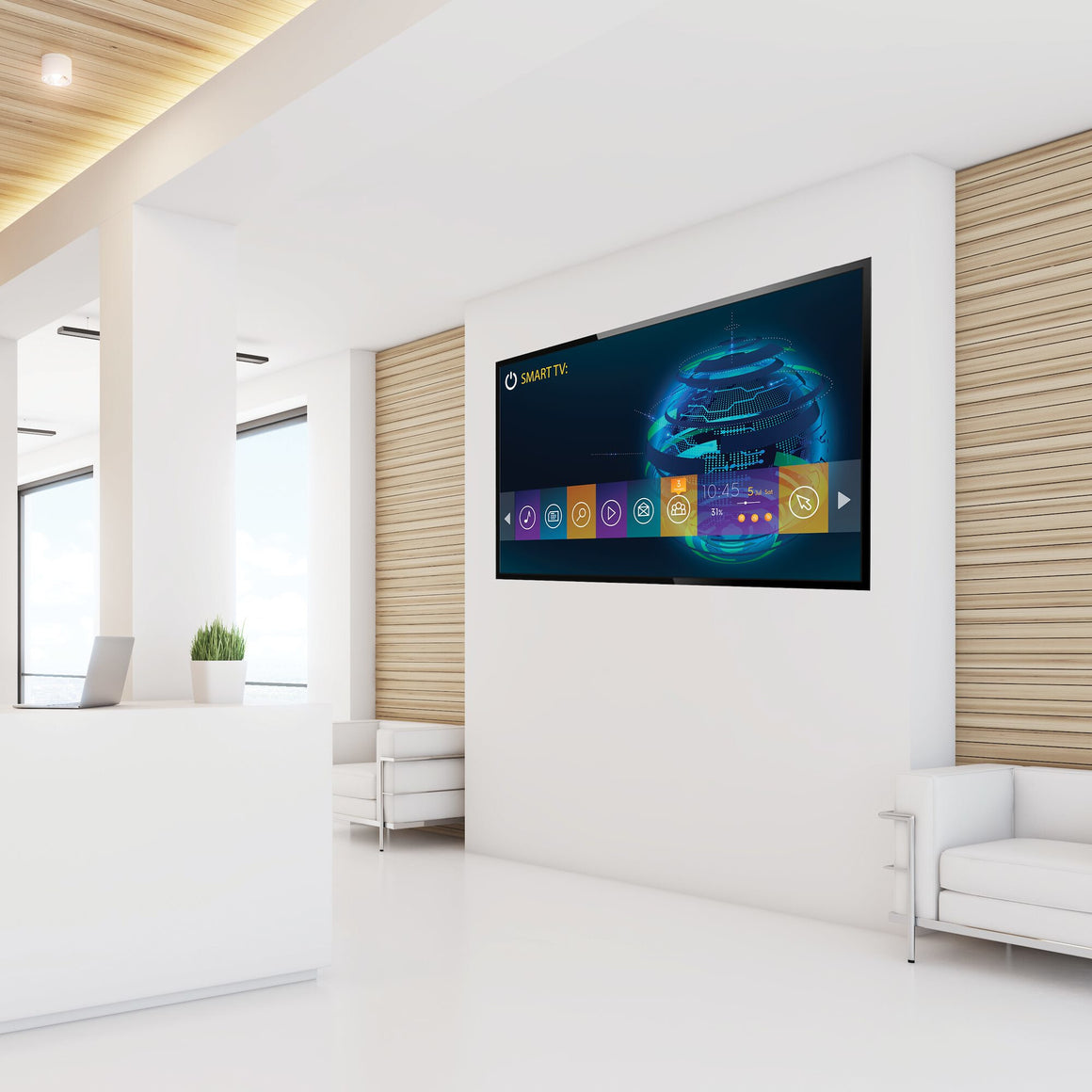

Mount your flat-screen TV in a location that's convenient for visitors, clients and employees. This TV wall mount is ideal for the lobby, boardroom or other venues, providing an impressive and secure way to display a flat-panel TV or mount digital signage. It also frees up valuable space. The TV wall mount supports most 32" to 55" (558.8 to 1397 mm) LED or LCD flat panel TVs weighing up to 77 lb. (35 kg).
Full-Motion Adjustment
The TV wall mount provides full-motion adjustment capability. The arm extends up to 19.8" (503 mm) from the wall to provide a wide range of movement and accommodate different screen positions and angles. The arm can also fold to tuck-in closely to the wall, providing a minimized profile, which enables you to position your display just 1.9" (49 mm) from the wall.

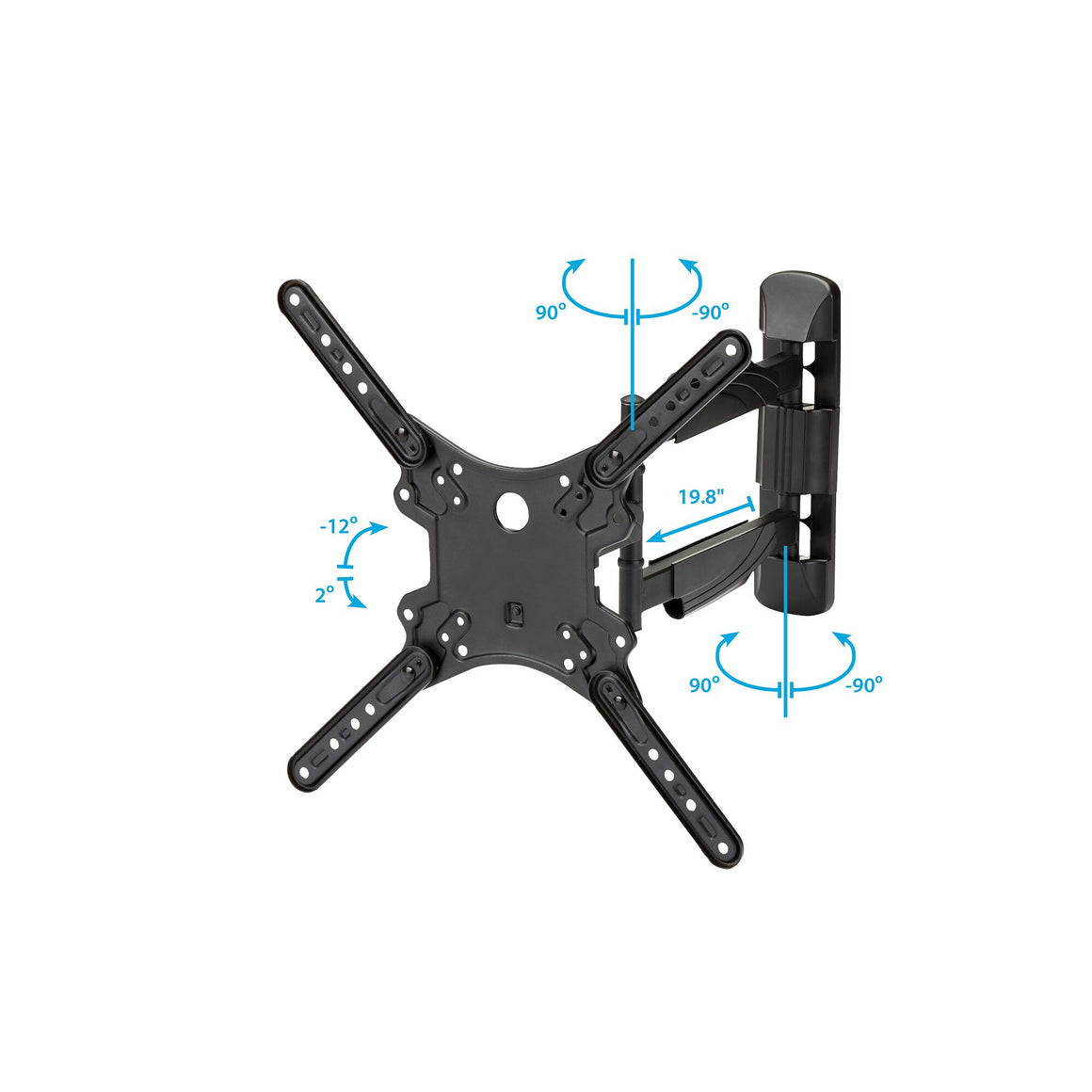

The TV wall mount swivels +90 / -90 degrees to provide maximum viewing flexibility. The mount also tilts +2 / -12 degrees, letting you angle your TV display toward your audience. With the tilt feature, you can mount your TV lower or higher than eye level and still view it comfortably.
Heavy-Duty Construction
The robust steel design safely and securely supports your flat-screen TV, to protect your investment. The TV wall mount also includes plastic brackets for cable management to keep cables neatly out of sight.
The FPWARTB1M is backed by a StarTech.com 5-year warranty and free lifetime technical support.
The StarTech.com Advantage
- 55" TV WALL MOUNT: This heavy-duty TV wall mount supports VESA compatible displays incl. curved TVs up to 55 inch (77 lb/35 kg) w/ a durable full-motion steel frame and a powder-coated finish
- WIDE RANGE OF MOTION: Articulating & adjustable TV wall mount offers +/-90° swivel, +2/-12° tilting & +/-5° LCD screen level adjustment without the use of additional tools to ensure display is level
- EXTENDABLE ARM: Arm can extend from 1.9" (49mm) to 19.8" (503mm) from the wall; With the length of the arm, center of the display has an overall lateral range (left to right) of 39.6" (1006mm)
| Mounting |
|---|
| Number of displays supported |
1 |
| Panel mounting interface |
100 x 100,100 x 150,100 x 200,200 x 100,200 x 200,200 x 300,200 x 400,300 x 200,300 x 300,400 x 200,400 x 400,400 x 300 |
| Maximum VESA mount |
400 x 400 mm |
| Minimum VESA mount |
100 x 100 mm |
| Mounting type |
Wall |
| Maximum screen size |
139.7 cm (55") |
| Minimum screen size |
55.9 cm (22") |
| Maximum weight capacity |
35 kg |
| Ergonomics |
|---|
| Distance to the wall (min) |
4.9 cm |
| Distance to the wall (max) |
50.3 cm |
| Built-in spirit level |
Yes |
| Cable management |
Yes |
| Swivel angle range |
-90 - 90° |
| Tilt angle range |
-12 - 2° |
| Design |
|---|
| Anti-theft function |
No |
| Housing material |
Steel |
| Product colour |
Black |

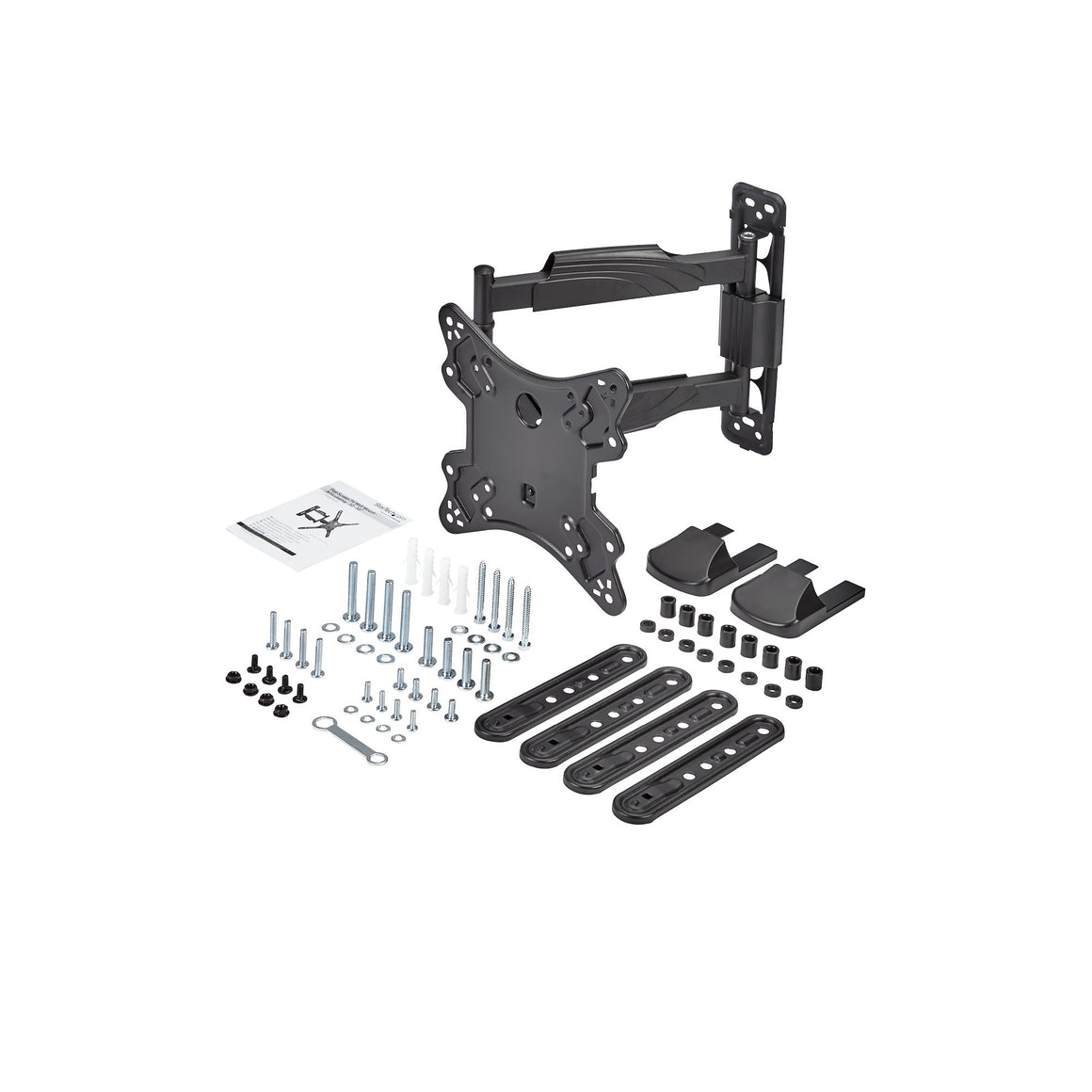

| Packaging content |
|---|
| Manual |
Yes |
| Mounting kit |
Yes |
| Number of screws |
32 |
| Screws included |
Yes |
| Number of spacers included |
16 |
| Spacer included |
Yes |
| Number of washers included |
12 |
| Washers included |
Yes |
| Wrench included |
Yes |
| Number of adapter brackets included |
4 |
| Adapter bracket included |
Yes |
| Technical details |
|---|
| Compliance certificates |
RoHS |
| Weight & dimensions |
|---|
| Weight |
2.8 kg |
| Height |
400 mm |
| Depth (max) |
61.4 cm |
| Depth |
614 mm |
| Width |
400 mm |
| Packaging data |
|---|
| Package weight |
3.5 kg |
| Package height |
50 mm |
| Package depth |
395 mm |
| Package width |
323 mm |
| Logistics data |
|---|
| Harmonized System (HS) code |
85299097 |
| Products per master (outer) case |
6 pc(s) |
| Master (outer) case height |
311 mm |
| Master (outer) case length |
420 mm |
| Master (outer) case width |
348 mm |
