Turn any laptop into a console for headless servers, PCs, ATMs, kiosks and more

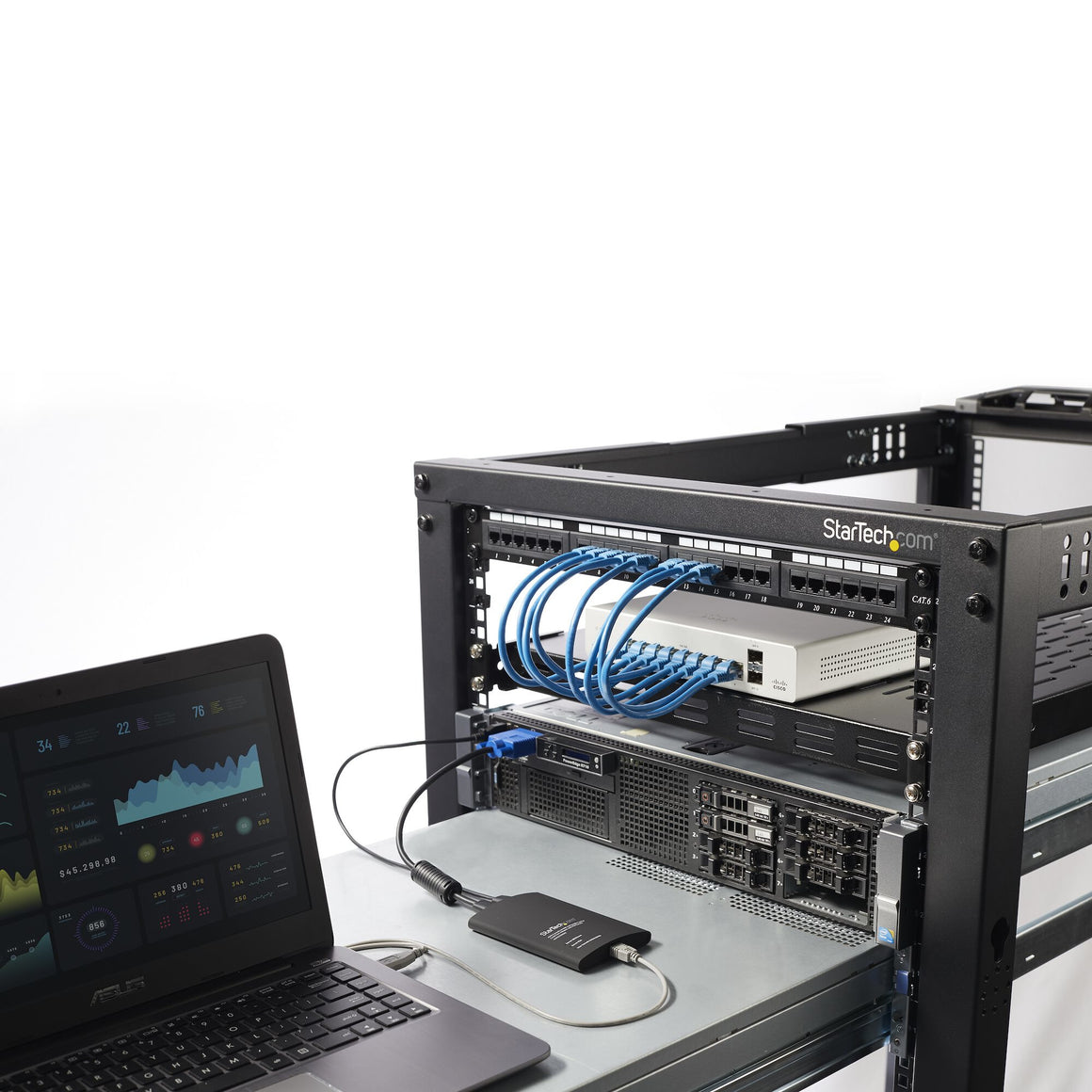

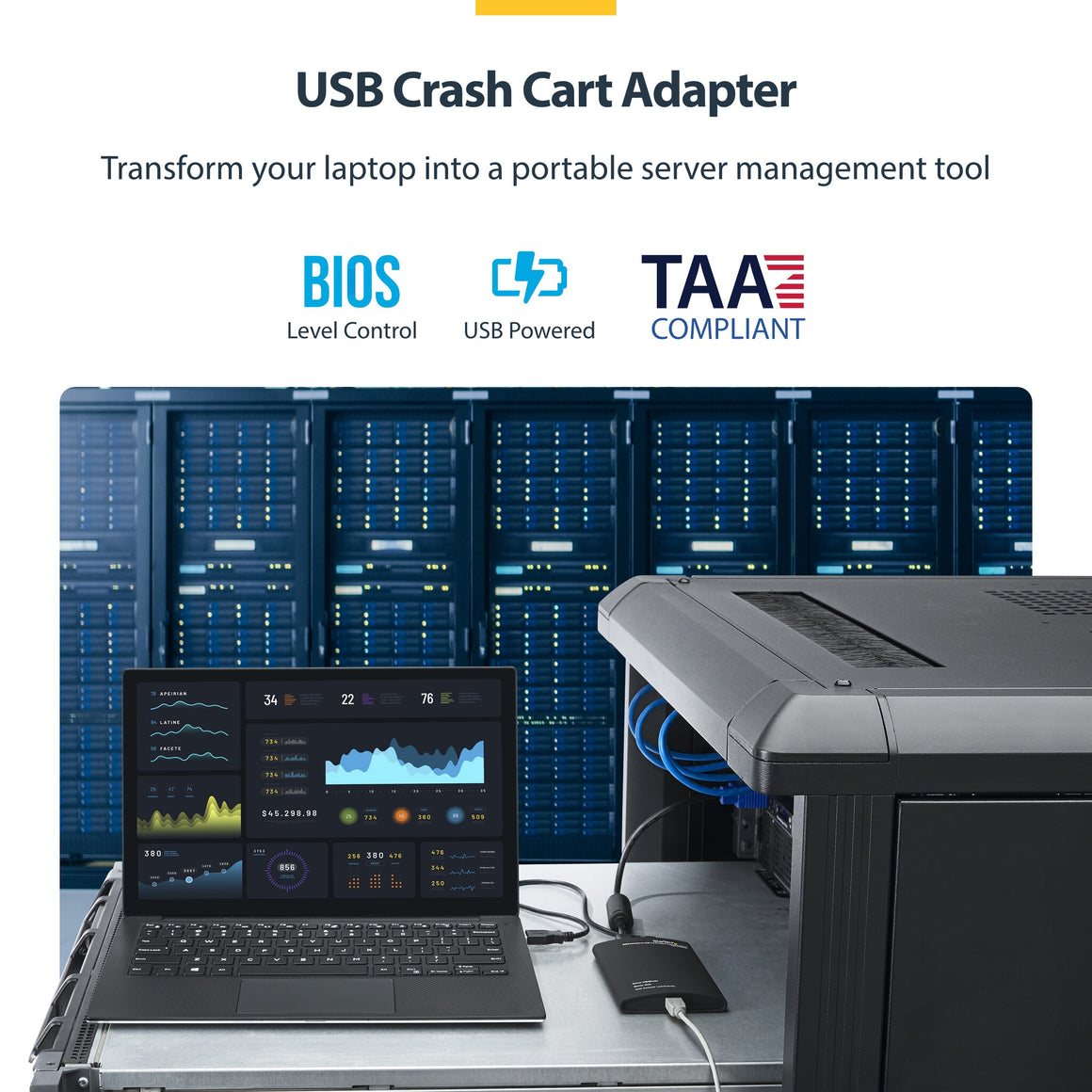

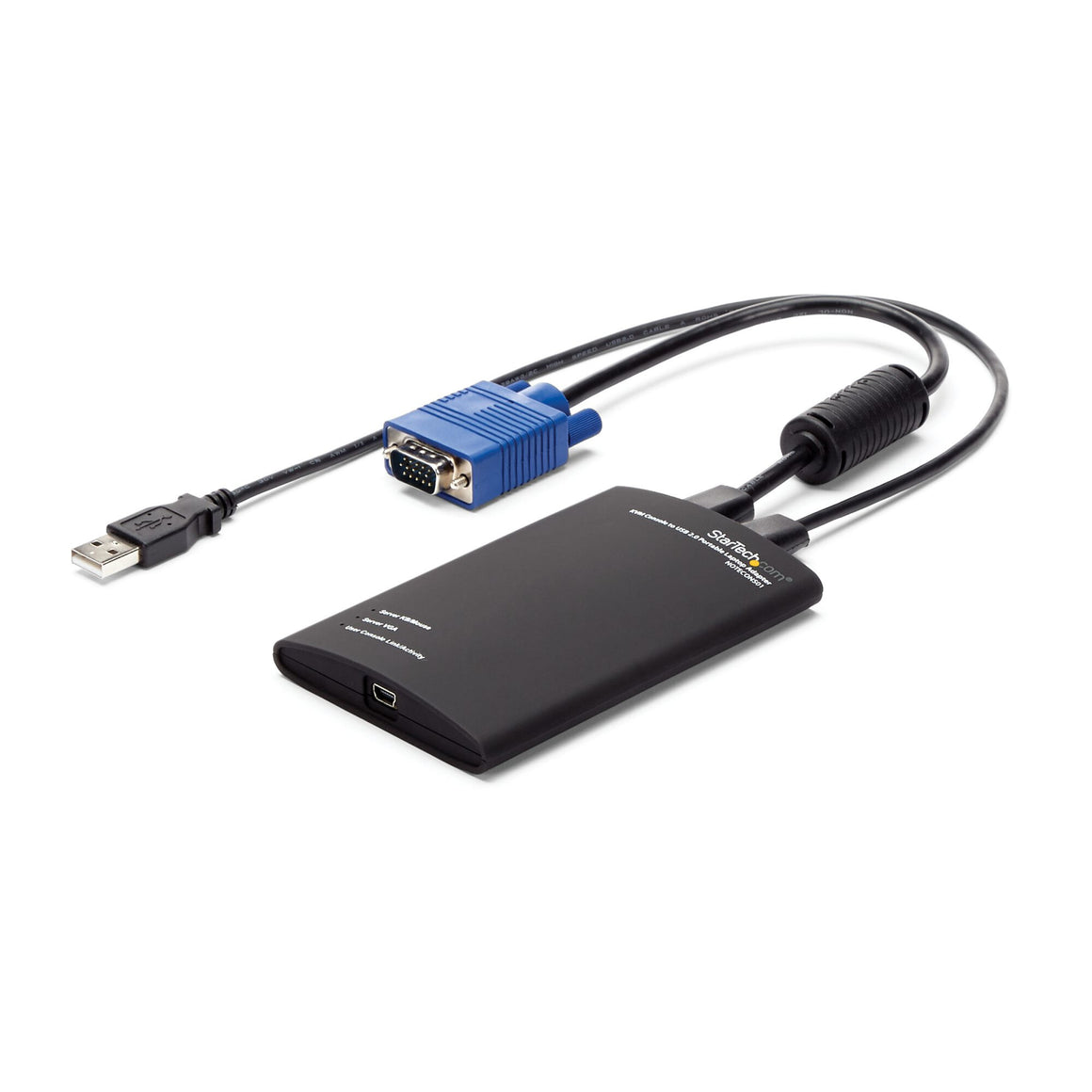

The NOTECONS01 KVM Console to USB 2.0 Portable Laptop Crash Cart Adapter turns your notebook or netbook into a portable server crashcart, eliminating the need to lug around a large, heavy and awkward video screen, keyboard, and mouse. This adapter delivers the VGA stream from any host computer to a laptop and emulates the laptop mouse and keyboard outputs for simple access and control of connected servers, PCs or other "headless" devices.

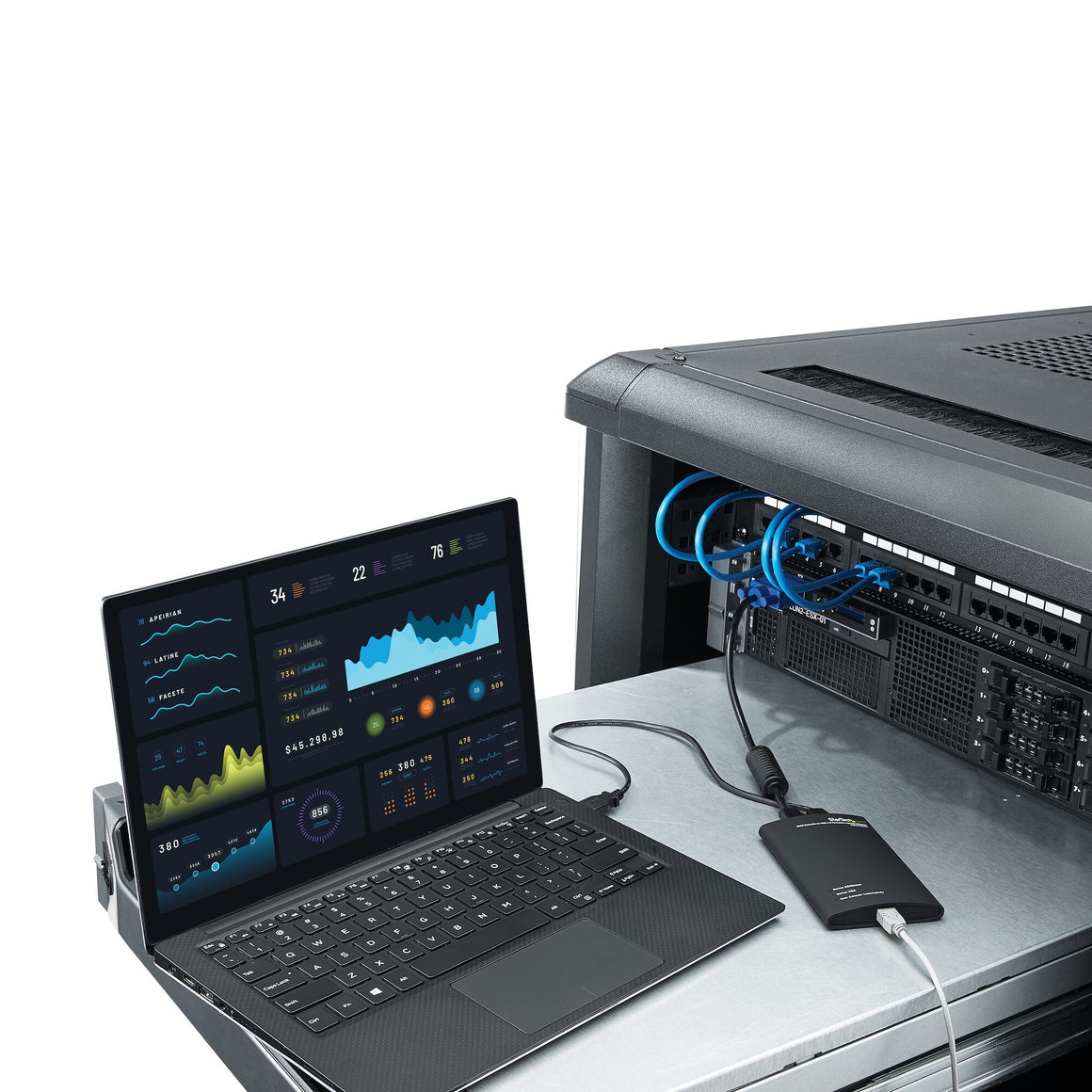

"StarTech.com's USB KVM may be your new best friend for trips to the datacenter... you can use this from the back of the rack. So if you are handling issues that require moving cables or network connections... this can be a major timesaver."
— everythingUSB.com
"The CRN Test Center recommends StarTech's Crash Cart Adapter for any company with a data center or with technicians servicing computers in the field"
— CRN

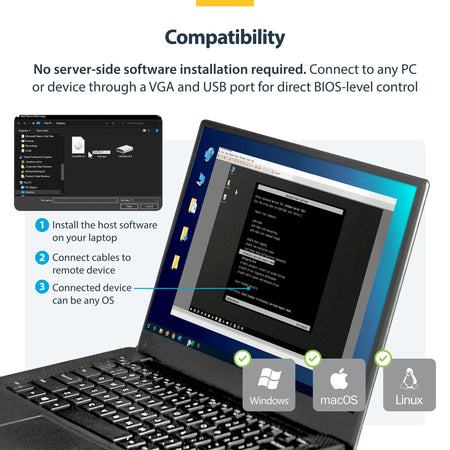

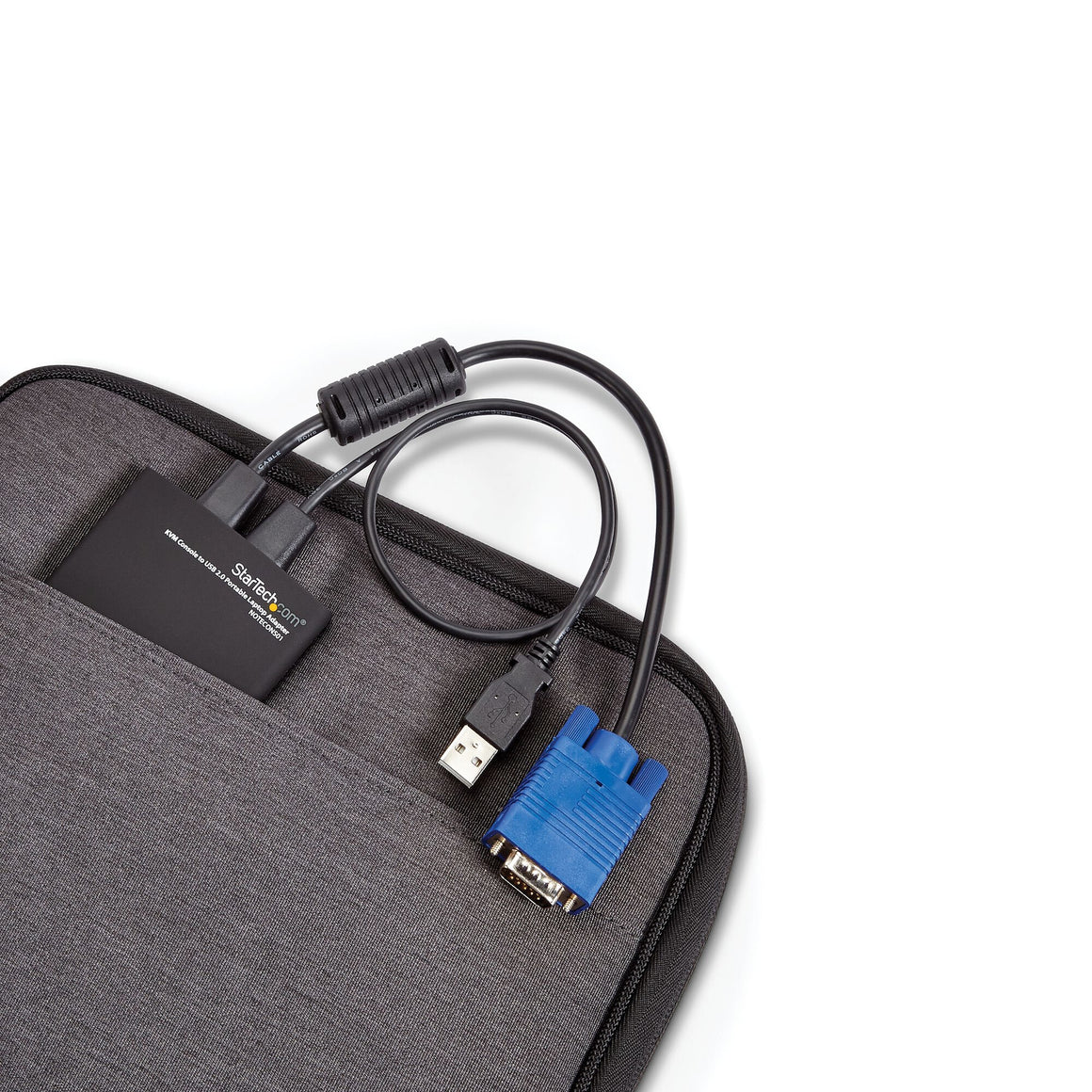

With portability for the mobile administrator or repair technician in mind, this USB-powered adapter features a small-footprint design that requires no additional accessories to connect to most servers, and requires no server-side software installation. Plus, the pocket-sized adapter draws its power from the server-side USB connections, allowing the laptop/netbook to last longer without consuming battery power.
Ensuring full control of the connected units, the Laptop KVM Server Console Adapter provides immediate access to the POST screen and BIOS, plus the ability to handle full configuration of the attached PC or machine; administrators can connect to a headless server/device without the need of an expensive LCD rackmount console or bulky monitor, keyboard and mouse solution.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
How it works:
The StarTech.com Advantage

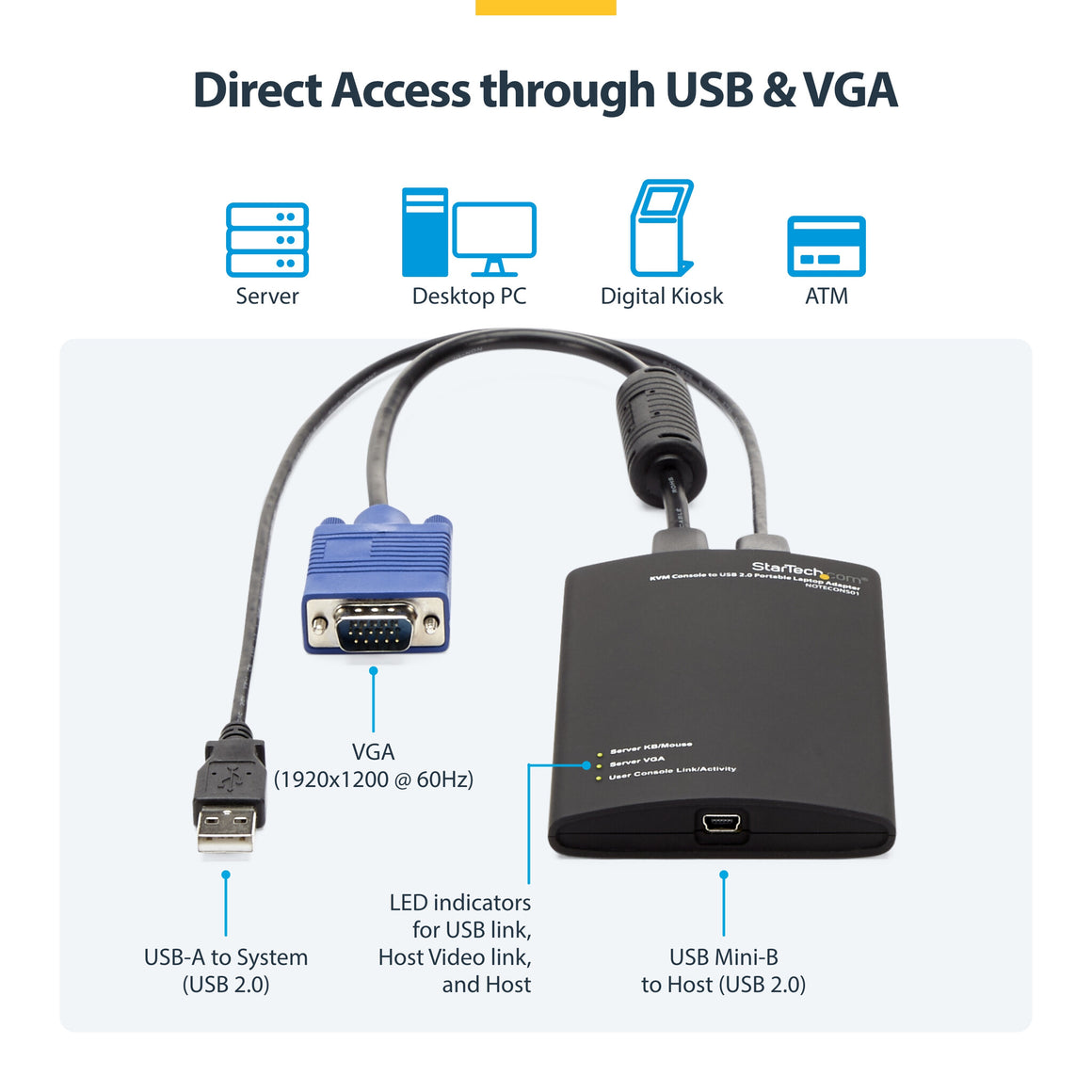

| Performance |
|---|
| Connector 2 gender |
Male |
| Connector 1 gender |
Female |
| Connector 2 |
PS/2 + USB 2.0 A + VGA |
| Connector 1 |
USB Mini-B |
| Video port type |
VGA |
| Mouse port type |
USB |
| Keyboard port type |
USB |
| Product colour |
Black |
| Certificates |
|---|
| Compliance certificates |
CE, RoHS |
| Sustainability |
|---|
| Sustainability compliance |
Yes |
| Packaging data |
|---|

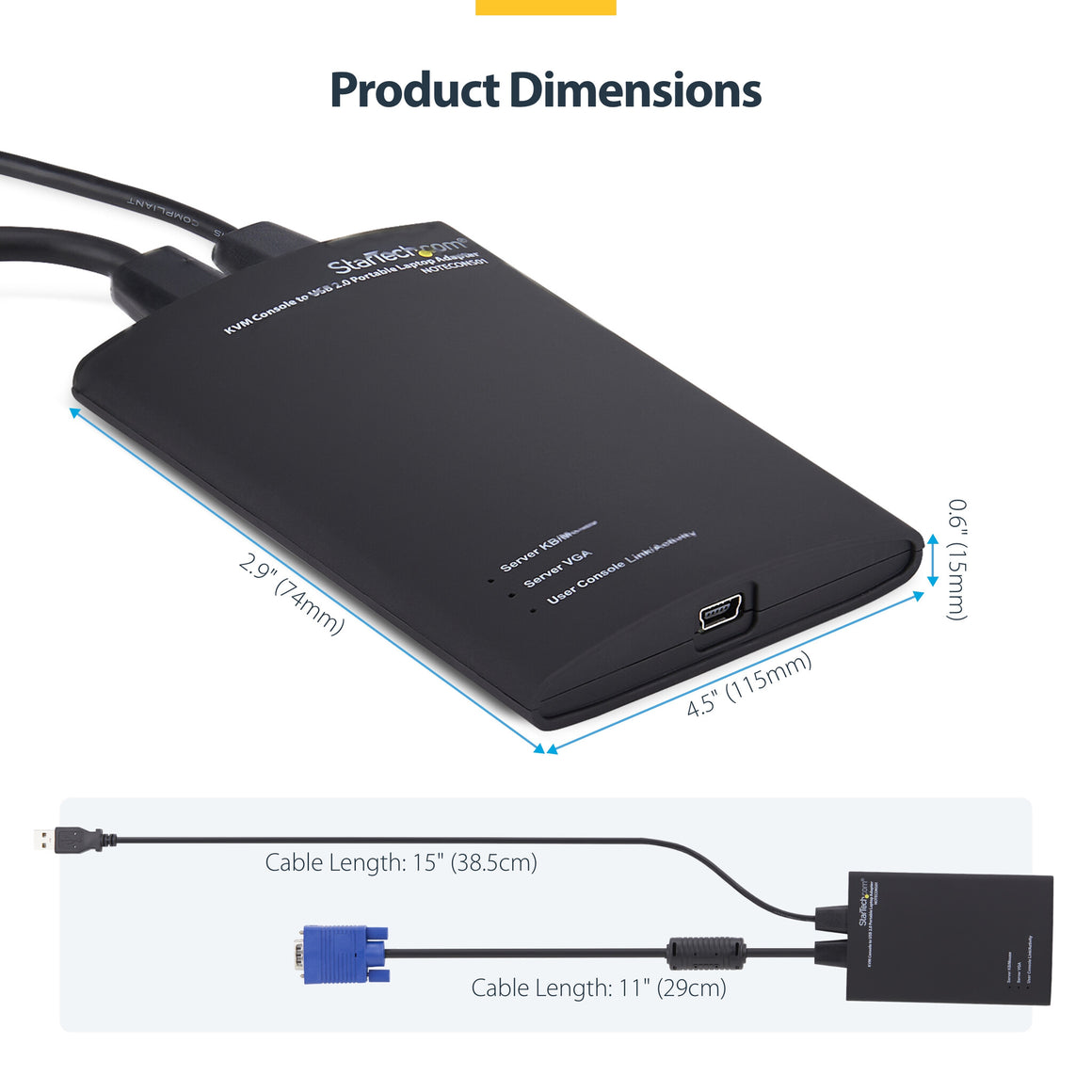

| Package weight |
400 g |
| Package height |
160 mm |
| Package depth |
45 mm |
| Package width |
300 mm |
| Weight |
170 g |
| Other features |
|---|

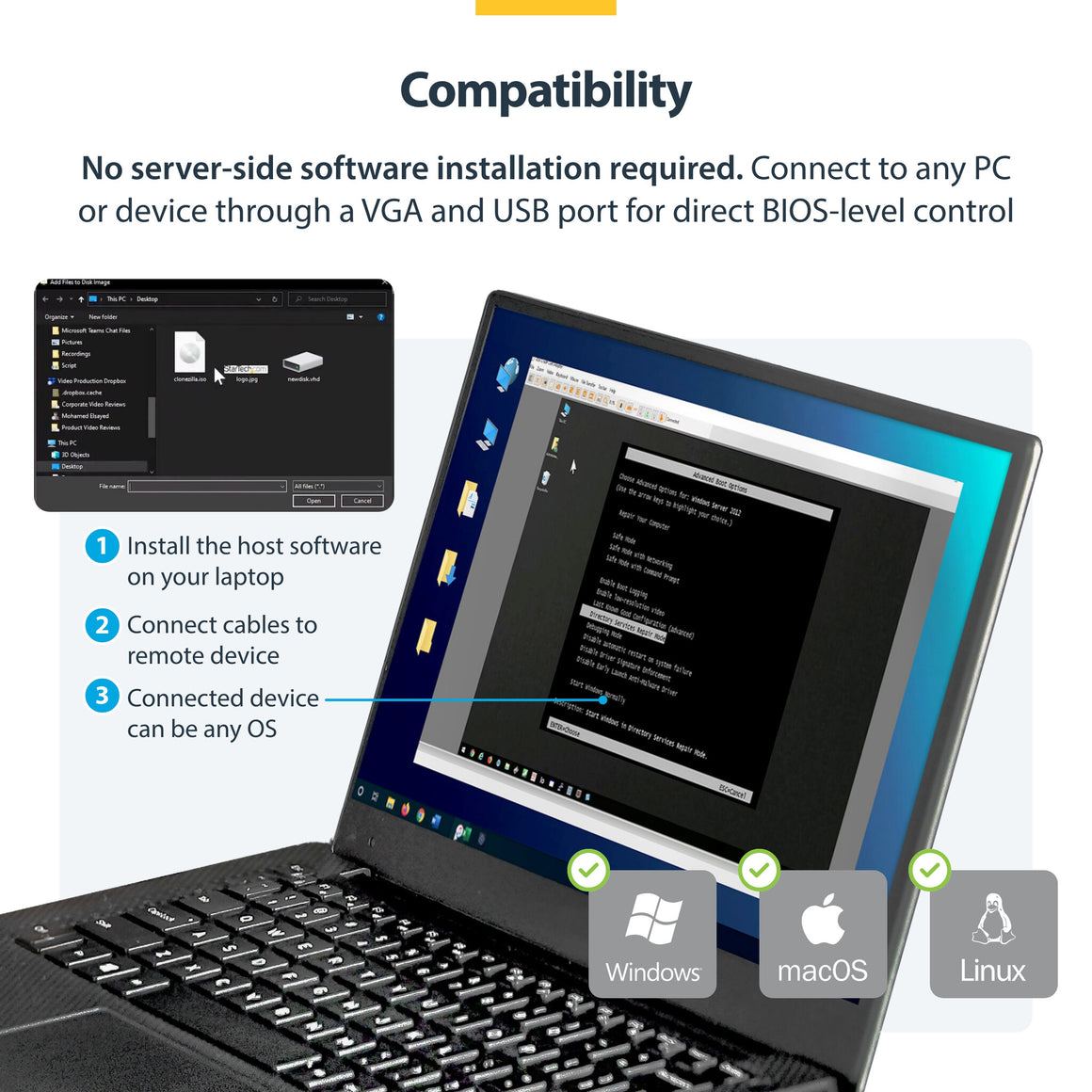

| Compatible operating systems |
Windows® XP, Vista, 7, 8, 8.1, 10, 11Windows Server® 2008 R2, 2012, 2016, 2019macOS 10.6 to 10.15, 11.0, 12.0, Mac OS X 13.0 VenturaLinux 2.6.x + |
| Logistics data |
|---|
| Products per master (outer) case |
30 pc(s) |
| Master (outer) case height |
525 mm |
| Master (outer) case length |
520 mm |
| Master (outer) case width |
320 mm |
| Harmonized System (HS) code |
84733080 |
