Connect your DisplayPort® monitor to a standard Mini DisplayPort source

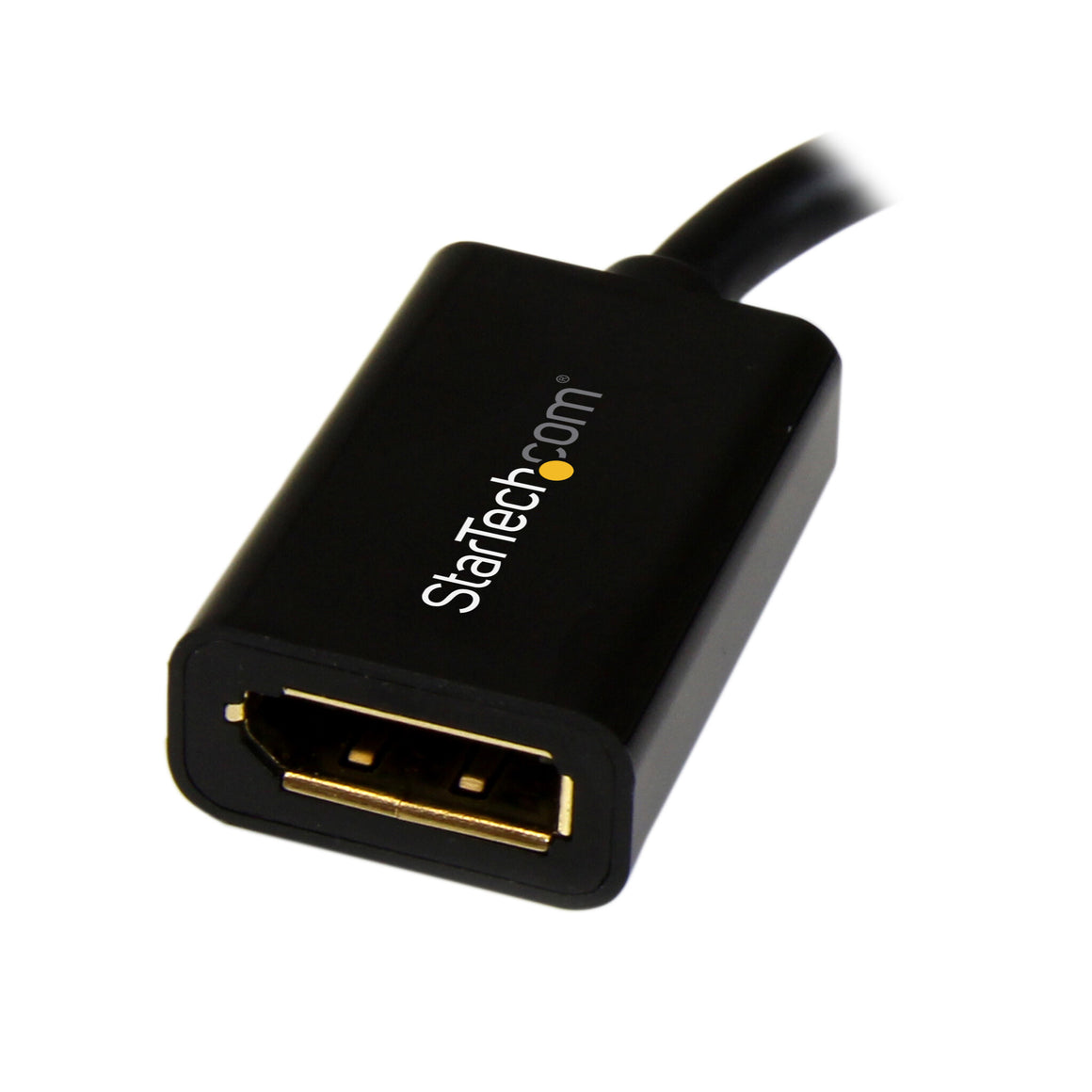

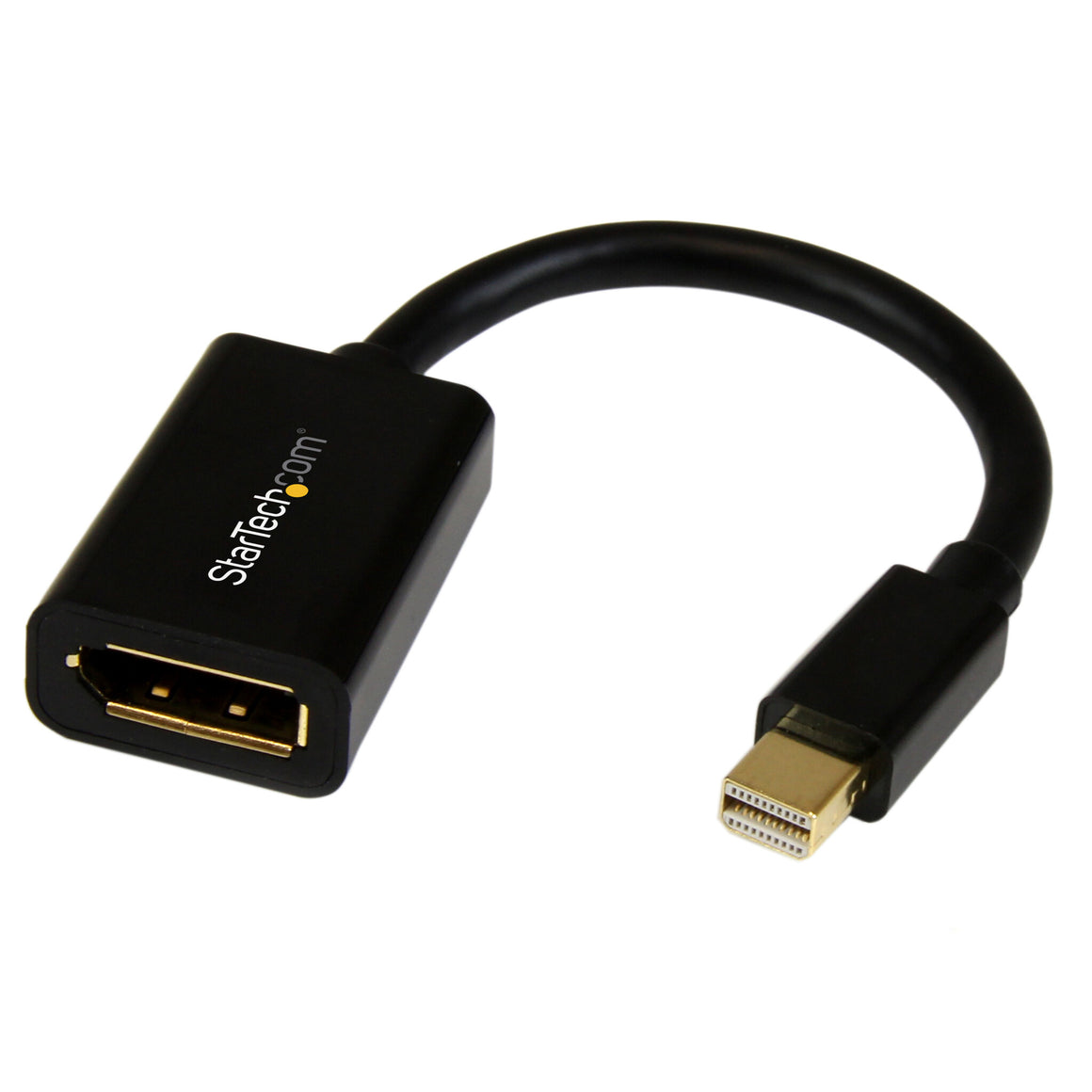

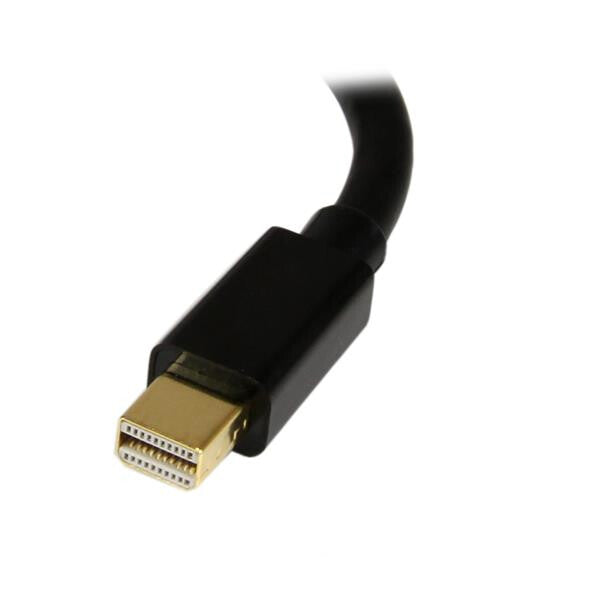

The MDP2DPMF6IN Mini DisplayPort to DisplayPort video cable adapter allows you to add a standard DisplayPort connection port to your existing mini Displayport equipped laptop. Easy to use and install, this cost-effective solution makes it easy for you to go from Mini DP to DP, in order to get the most from your Mini DisplayPort device.
Please Note : Newer laptop and desktop computers (e.g. Apple®) come equipped with Thunderbolt™ ports only. Our Mini DP to DP Cables can be connected to the Thunderbolt ports, enabling you to connect your DP compatible displays.
The StarTech.com Advantage
| Features |
|---|
| Number of conductors |
20 |
| Multi-Stream Transport (MST) |
Yes |
| Plug and Play |
Yes |
| Bandwidth |
21600 MB/s |
| AWG wire size |
32 |
| Jacket material |
Polyvinyl chloride (PVC) |
| Cable shielding |
Aluminum mylar foil |
| Cable rating |
CMG (CM) |
| Product colour |
Black |
| Maximum refresh rate |
120 Hz |
| Supported graphics resolutions |
2560 x 1600 (WQXGA), 3840 x 2400 |
| Maximum resolution |
3840 x 2400 pixels |
| DisplayPort version |
1.2 |
| Connector contacts plating |
Nickel |
| Connector 2 form factor |
Straight |
| Connector 1 form factor |
Straight |
| Connector 2 gender |
Female |
| Connector 1 gender |
Male |
| Connector 2 |
DisplayPort |
| Connector 1 |
Mini DisplayPort |
| Cable length |
0.1524 m |
| Certificates |
|---|
| Compliance certificates |
CE, RoHS |
| Weight & dimensions |
|---|
| Weight |
19 g |
| Cable diameter |
5 mm |
| Packaging data |
|---|
| Package weight |
24 g |
| Package height |
15 mm |
| Package depth |
227 mm |
| Package width |
126 mm |
| Packaging content |
|---|
| Quantity per pack |
1 pc(s) |
| Logistics data |
|---|
| Products per master (outer) case |
300 pc(s) |
| Master (outer) case height |
270 mm |
| Master (outer) case length |
414 mm |
| Master (outer) case width |
375 mm |
| Harmonized System (HS) code |
84733080 |
