USB Type-C Docking Station| Triple 4K with DP 1.4 & HDMI 2.0 | 100W PD | 6x Downstream USB Ports
This USB-C Gen 2 10Gbps docking station turns your USB-C ® or Thunderbolt™ 3 Windows laptop or Chromebook into a powerful workstation. A USB 3.2 Gen 2 Type-C dock features everything you need, from triple video outputs up to 4K 60Hz to 10Gbps USB-C & USB-A downstream peripheral ports to 100W Power Delivery.

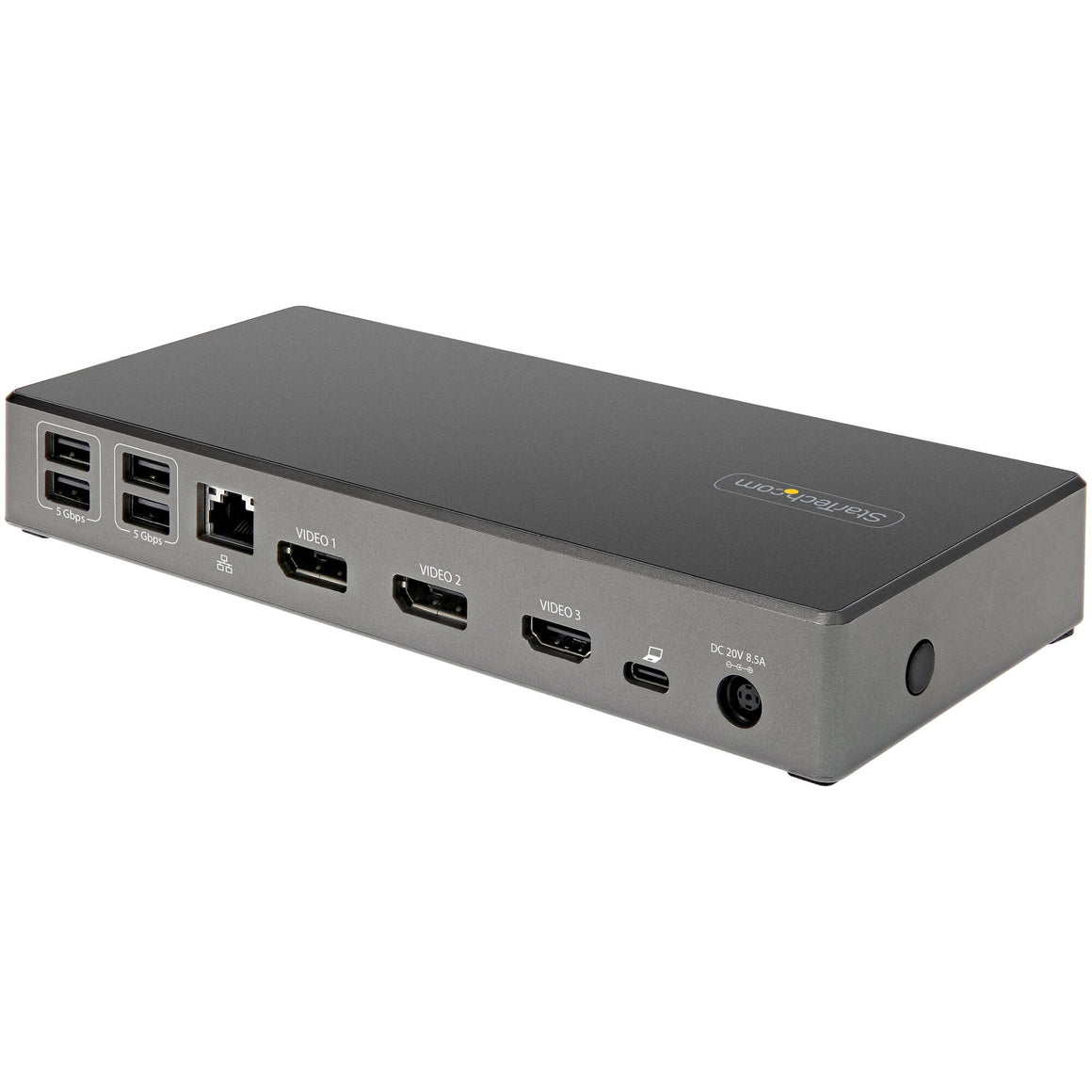

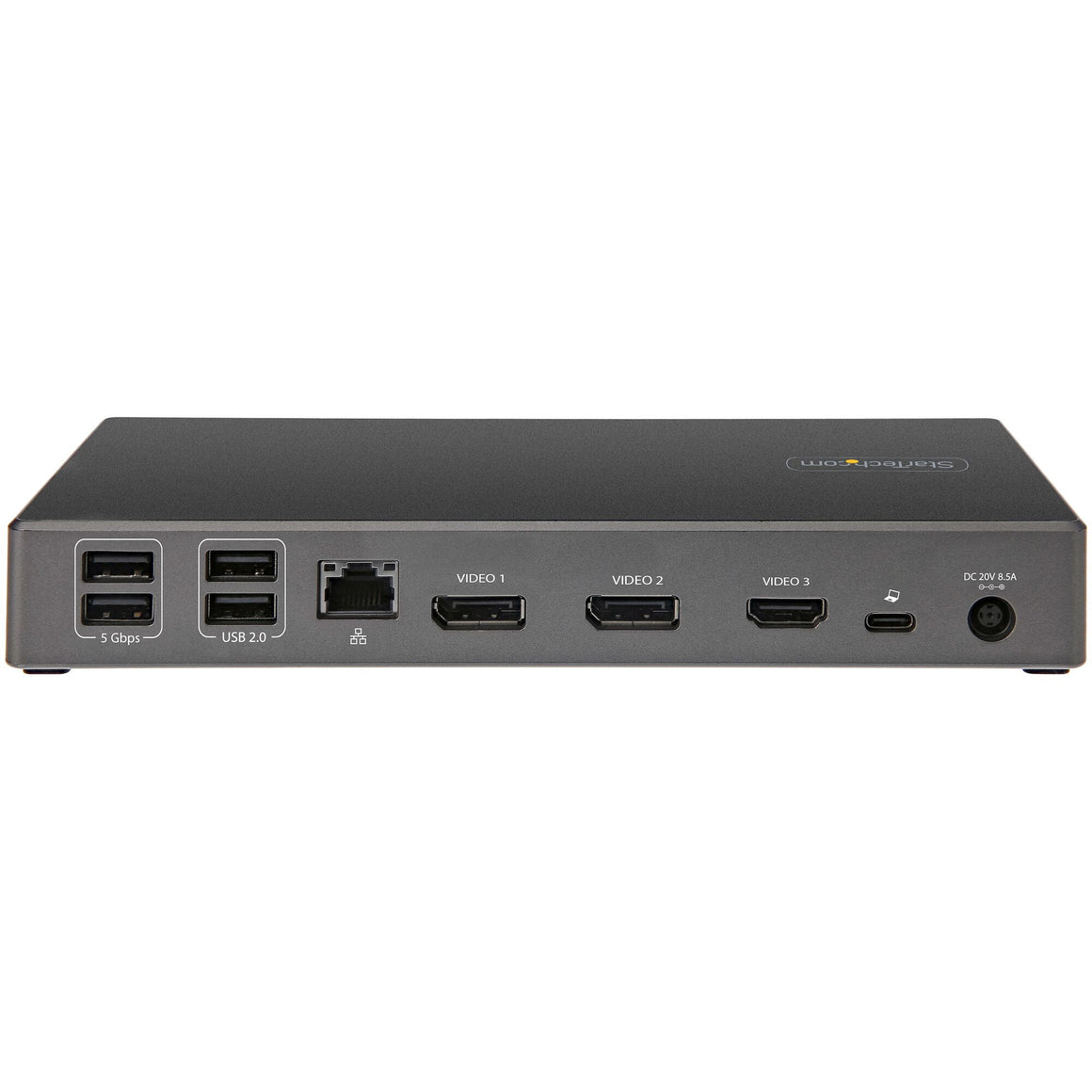

HDMI & DisplayPort for Multiple Monitor Outputs
This USB-C Gen 2 docking station with DP 1.4 and HDMI 2.0 HBR3 support, is a perfect choice for dual or triple monitor setup, supporting up to triple 4K 30Hz nearly uncompressed video resolution output , with two DisplayPort and one HDMI outputs. Maximum dual and triple 4K display performance is supported on USB-C 11th Gen Intel-based (DP 1.4 HBR3 with DSC support) Windows Thunderbolt 3 or USB-C laptops, but backwards compatibility to older laptop generations and lower resolution monitor requirements.
DP 1.4 HBR3 with DSC Enabled
DP 1.4 HBR3 (without DSC)
DP 1.2 HBR2
Triple Display
Up to 4096 x 2160 @ 30Hz
Up to 1920 x 1080 @ 60Hz
Up to 1600 x 900 @ 60Hz
Dual Display
Up to 4096 x 2160 @ 60Hz*
*HDMI port + DP port or 2 DP ports
Up to 2560 x 1440 @ 60Hz
Up to 1920 x 1080 @ 60Hz
Single Display
Up to 4096 x 2160 @ 60Hz
Up to 3840 x 2160 @ 60Hz
Up to 3840 x 2160 @ 30Hz
Power & Charge with 100W Power Delivery
Power and charge USB-C/Thunderbolt 3 workstation laptops & ultrabooks with 100 watt power delivery, to keep high performance laptops sufficiently charged during heavy productivity usage.
Charge smartphones and other devices with USB-C downstream charging ports featuring BC 1.2 charging specification. Fast-charge ports support always-on charging so devices will charge whether or not a host laptop is connected.

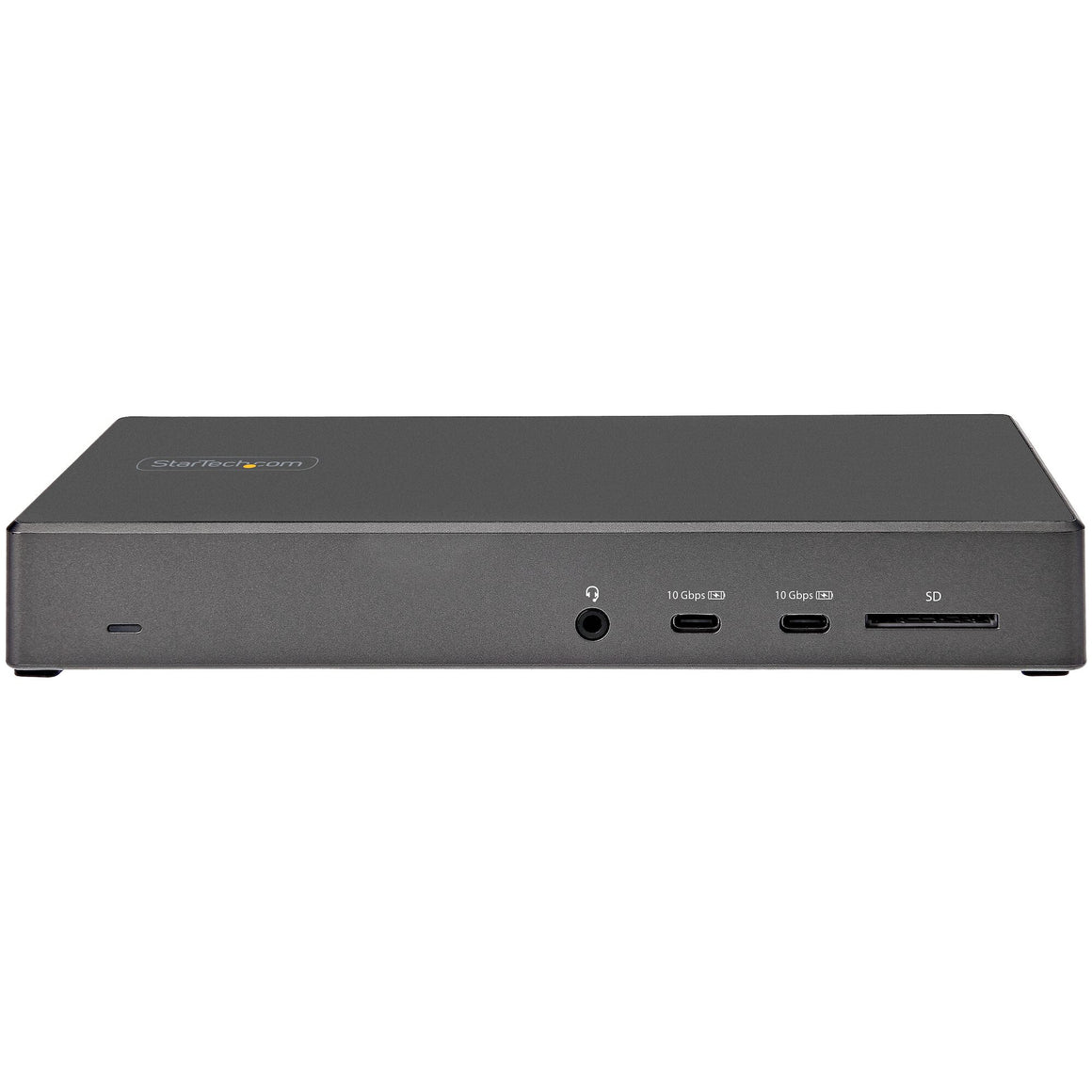

Integrated 6-Port USB Hub & SD Card Reader
This USB-C Gen 2 docking station features 6 downstream USB ports in total to connect USB peripherals and an SD 3.0 UHS-I card reader for media storage.
• 2x USB-C 3.2 Gen 2 - 10 Gbps (BC 1.2 Fast-Charge + Aways-On)
• 2x USB-A 3.2 Gen 1 - 5 Gbps
• 2x USB-A 2.0 - 480 Mbps
• SD 3.0 UHS-I Card Reader
Also included, is a gigabit Ethernet port with PXE Boot, as well as 4-position TRRS stereo audio for a headset and mic.

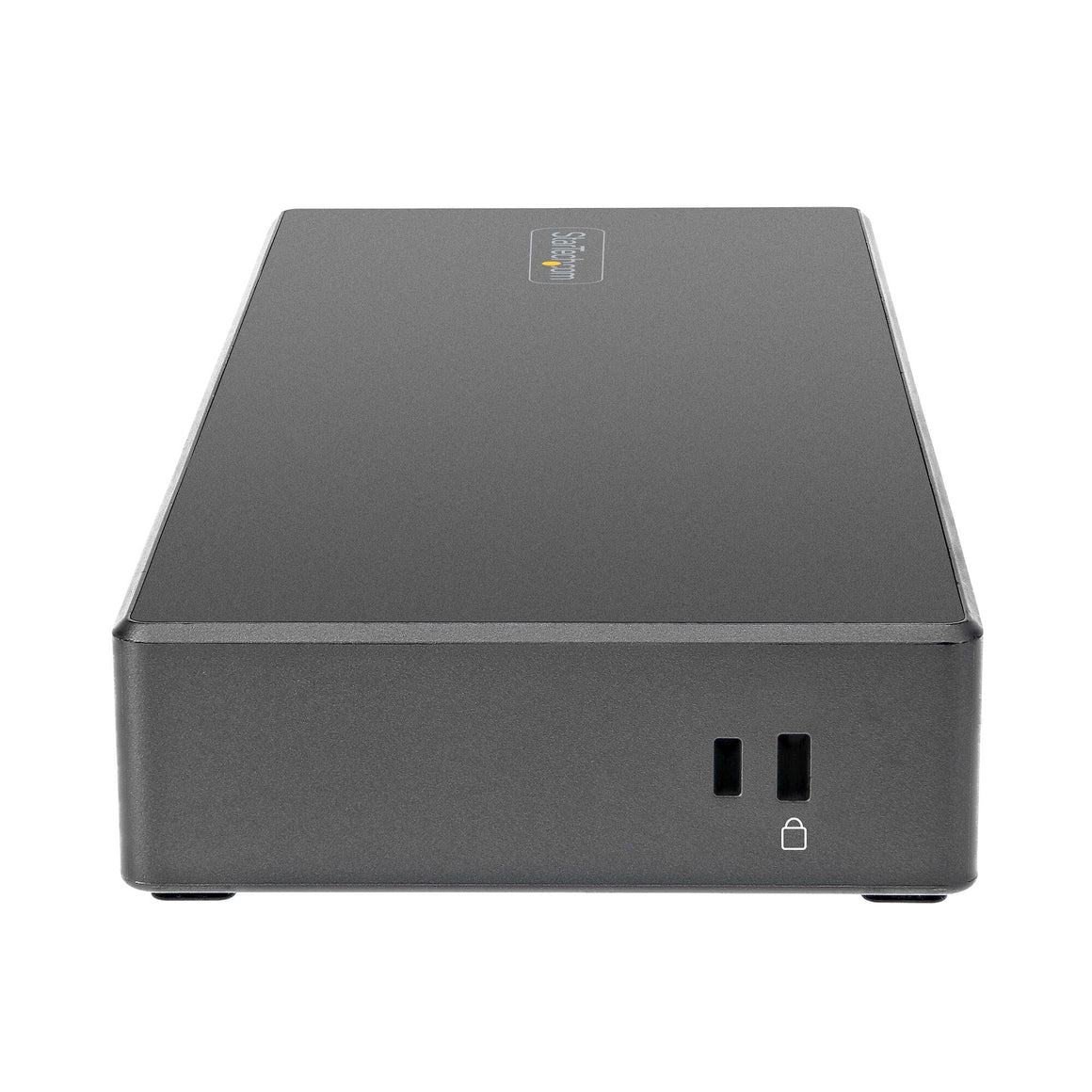

Additional Security Features
This USB-C docking station comes with plenty of security features two K-slots for a Kensington style laptop lock.
Enhance Productivity and Device Management with the StarTech.com Connectivity Tools Application
Developed to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes:
•
Advanced Windows Layout Utility : To setup and save custom windows layouts.
•
Mac Address Pass-Through Utility : To improve network security.
•
USB Event Monitoring Utility : To track and log connected USB devices
•
Wi-Fi Auto Switch Utility : Enabling users to quickly access faster network speeds via wired LAN.
For more information and to download the StarTech.com Connectivity Tools application, please visit: www.StarTech.com/Connectivity-Tools
The StarTech.com Advantage
| Ports & interfaces |
|---|
| DC-in jack |
Yes |
| Headphone connectivity |
3.5 mm |
| Headphone outputs |
1 |
| Combo headphone/mic port |
Yes |
| DisplayPort version |
1.4 |
| DisplayPorts quantity |
2 |
| HDMI version |
2.0 |
| HDMI ports quantity |
1 |
| USB Power Delivery up to |
100 W |
| USB Power Delivery (USB PD) |
Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
2 |
| USB 2.0 ports quantity |
2 |
| Host interface |
USB 3.2 Gen 2 (3.1 Gen 2) Type-C |
| Connectivity technology |
Wired |
| Network |
|---|
| Networking standards |
IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u |
| Copper ethernet cabling technology |
10BASE-T, 100BASE-TX, 1000BASE-T |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Ethernet LAN (RJ-45) ports |
1 |
| Ethernet LAN |
Yes |
| Performance |
|---|
| Certification |
CE, FCC, RoHS |
| LED indicators |
Yes |
| Cable lock slot |
Yes |
| Maximum refresh rate |
60 Hz |
| Number of displays supported |
3 |
| Maximum digital resolution |
3840 x 2160 pixels |
| HD type |
4K Ultra HD |
| Data transfer rate |
10 Gbit/s |
| Compatible memory cards |
MMC, SD |
| Card reader integrated |
Yes |
| Product colour |
Black, Grey |
| Power |
|---|
| Compatible power plug types |
EU, UK |
| Power plug type |
Type M |
| AC input voltage |
100 - 240 V |
| Software |
|---|
| Other operating systems supported |
ChromeOS |
| Mobile operating systems supported |
Android 10, Android 9.0, iPadOS |
| Windows operating systems supported |
Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64 |
| Weight & dimensions |
|---|
| Weight |
300 g |
| Height |
30 mm |
| Depth |
90 mm |
| Width |
210 mm |
| Packaging data |
|---|
| Package weight |
1.4 kg |
| Package height |
94 mm |
| Package depth |
150 mm |
| Package width |
270 mm |

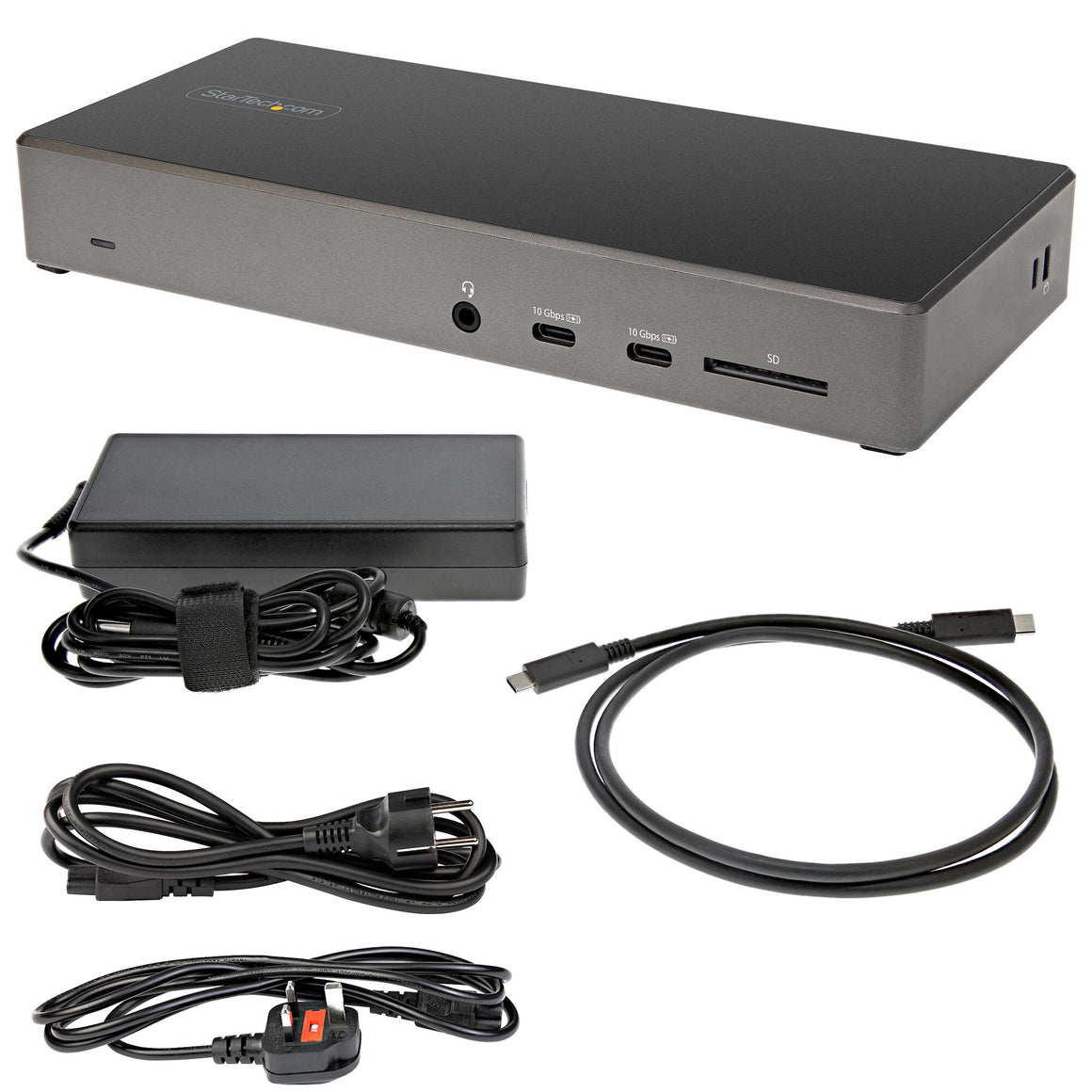

| Packaging content |
|---|
| Quick start guide |
Yes |
| Cables included |
USB Type-C to USB Type-C |
| AC adapter included |
Yes |
| Logistics data |
|---|
| Products per master (outer) case |
4 pc(s) |
| Master (outer) case width |
390 mm |
| Master (outer) case length |
282 mm |
| Master (outer) case height |
195 mm |
| Harmonized System (HS) code |
84733020 |
| Other features |
|---|
| Chipset |
Cypress - CYPD4236, Synaptics - VMM5320BJG-R |
