USB Type-C™ to HDMI Converter | Thunderbolt™ 3 Compatible | DP Alt Mode

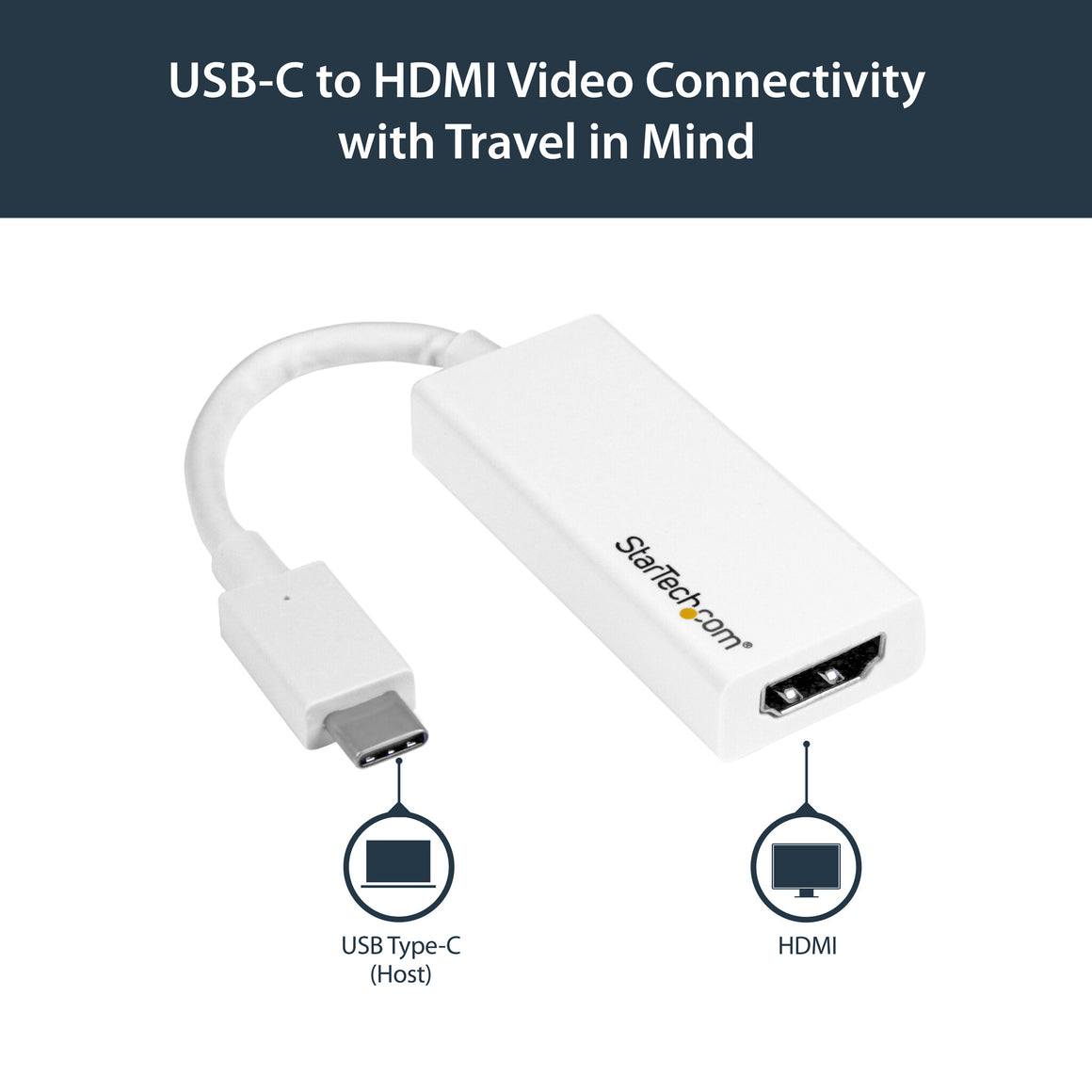

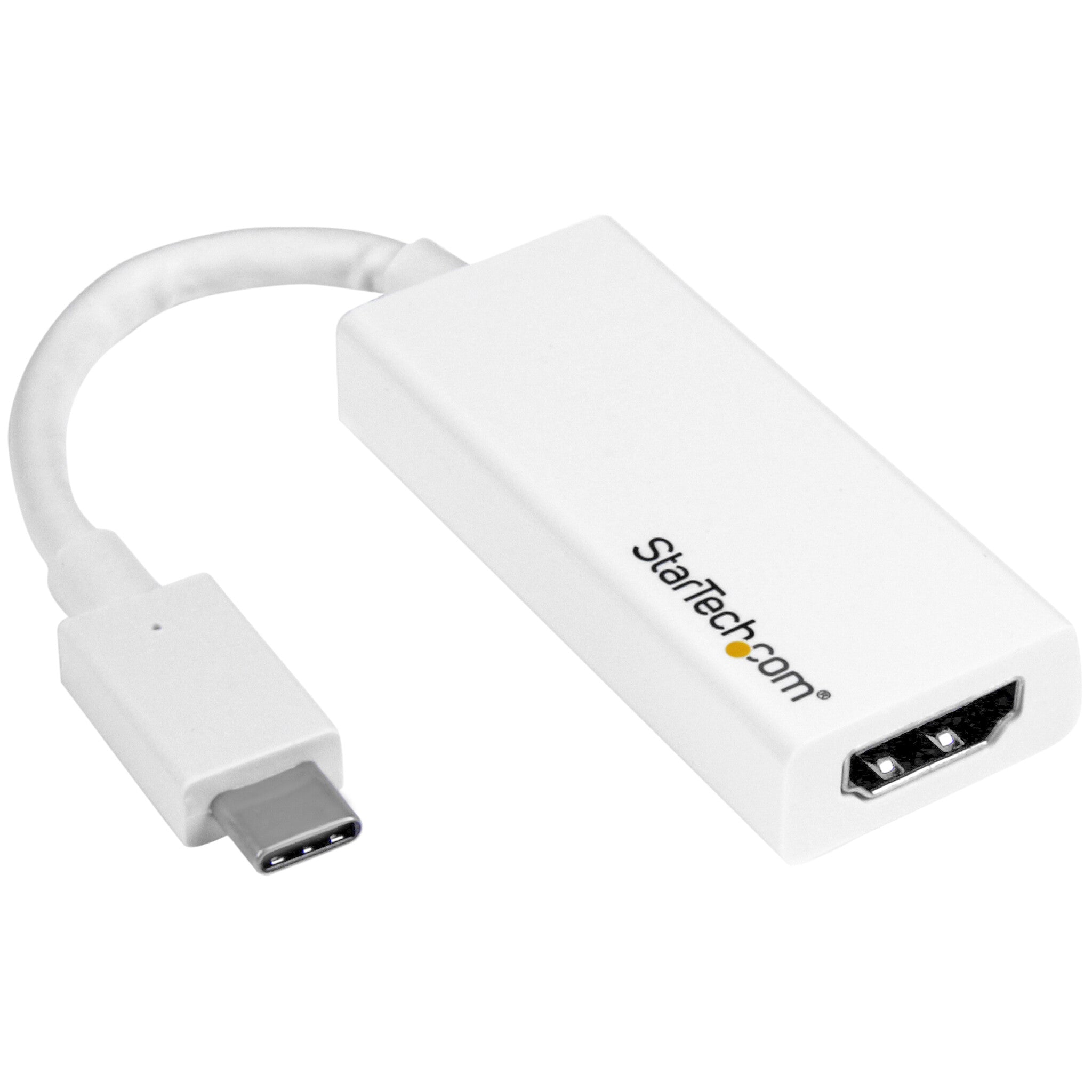

This USB-C to HDMI adapter lets you to output 4K video and audio from the USB Type-C port on your laptop to an HDMI display or projector. The adapter works with USB 3.1 or Thunderbolt 3 Type-C devices that pass a DP video signal, such as your MacBook Pro, Chromebook or 2018 iPad Pro.
This video adapter is also available in black (CDP2HD).
Enjoy High-Definition Resolution up to 4K at 30Hz
This adapter lets you harness the video capabilities from your computer's USB-C connection, to deliver the astonishing quality of UHD to a 4K 30Hz display.
You can achieve an output resolution of up to 3840 x 2160p at 30Hz, perfect for performing high-resolution tasks. Plus, the USB-C display adapter is backward compatible with 1080p monitors and displays, making it a great accessory for any workspace application.
Hassle-Free Connection to Your USB Type-C Laptop

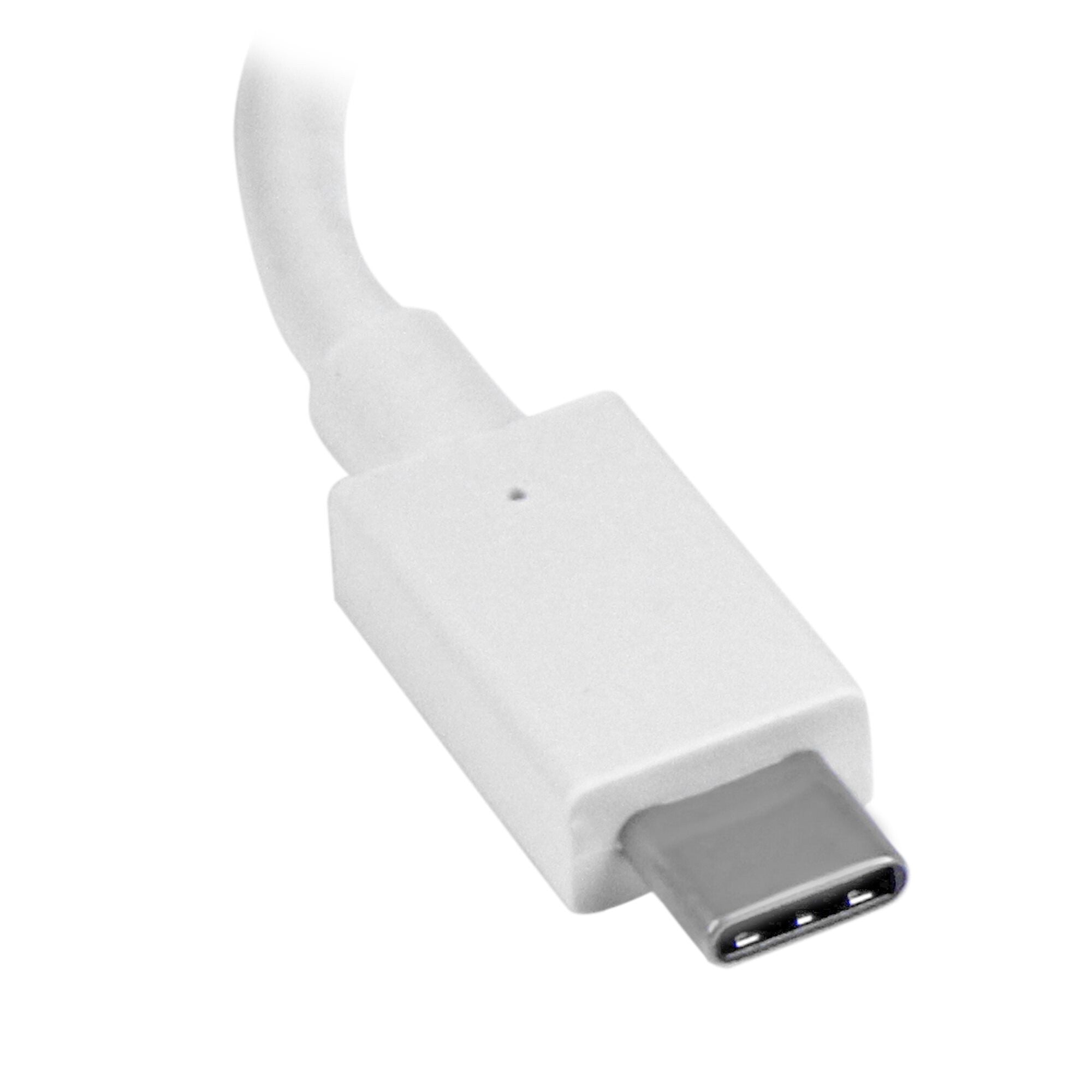

This HDMI converter lets you use the versatile USB Type-C port on your portable device. USB-C is a reversible connector, so you can plug it to your device in any direction. Plus, it’s Thunderbolt 3 compatible, providing a hassle-free connection to your Windows or Mac-based Thunderbolt 3 computer.
Lightweight Design Makes it the Perfect Travel Companion
This compact, lightweight USB-C video adapter is easy to carry in your laptop bag. It's ideal for BYOD (Bring Your Own Device) applications at the office and is compatible with any device that supports USB-C DP Alt Mode.
CDP2HDW is backed by a 2-year StarTech.com warranty and free lifetime technical support.
The StarTech.com Advantage
| Performance |
|---|
| Certification |
CE, FCC, REACH |
| Chipset |
Parade - PS171, STMicroelectronics - STM32F072CBU6 |
| Audio output channels |
7.1 channels |
| Supported video modes |
1080p, 720p |
| Supported graphics resolutions |
1024 x 768 (XGA), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 1280 x 720 (HD 720), 2560 x 1600 (WQXGA), 3840 x 2160 |
| Maximum resolution |
3840 x 2160 pixels |
| HDMI version |
1.4 |
| Number of displays supported |
1 |
| DisplayPort output |
No |
| HDMI output |
Yes |
| DVI output |
No |
| USB connector form factor |
Straight |
| USB connector gender |
Male |
| USB connector type |
USB Type-C |
| Design |
|---|
| Integrated USB cable |
Yes |
| Housing material |
Plastic |
| Product colour |
White |

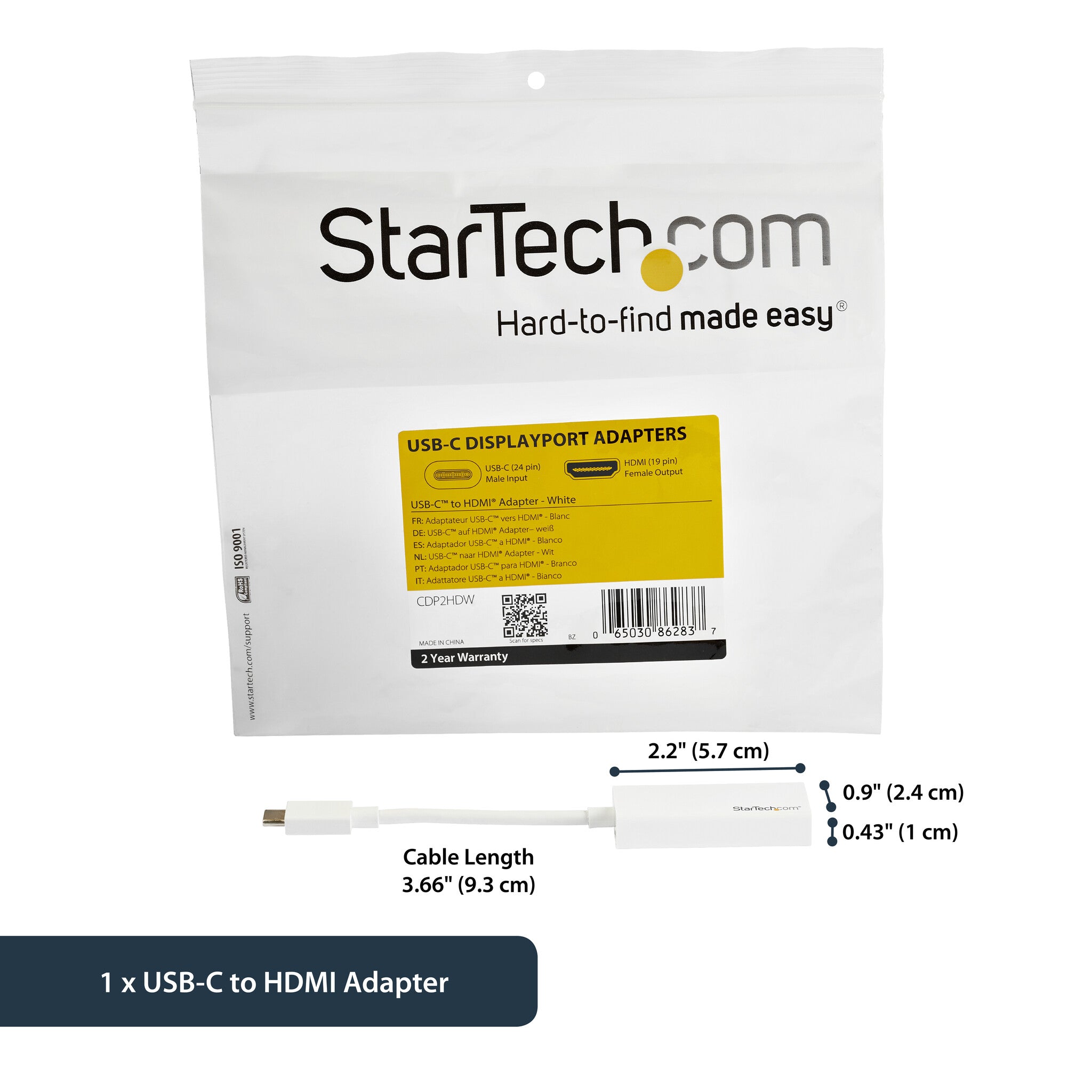

| Weight & dimensions |
|---|
| Weight |
22 g |
| Height |
9 mm |
| Depth |
147 mm |
| Width |
23 mm |
| Packaging data |
|---|
| Package weight |
31 g |
| Package height |
12 mm |
| Package depth |
221 mm |
| Package width |
225 mm |
| Technical details |
|---|
| Compliance certificates |
RoHS |
| Logistics data |
|---|
| Harmonized System (HS) code |
84733020 |
| Master (outer) case height |
240 mm |
| Master (outer) case length |
502 mm |
| Master (outer) case width |
335 mm |
| Products per master (outer) case |
120 pc(s) |
