- Built-in 9dBi 2x2 dual-polarized directional MIMO antenna
- Adjustable transmission power from 0 to 27dBm/500mw
- System-level optimizations for more than 5km long range wireless transmission
- TP-LINK Pharos MAXtream TDMA (Time-Division-Multiple-Access) technology improves product performance in throughput, capacity and latency performance, ideal for PTMP applications
- Centralized Management System – Pharos Control
- AP / Client / Repeater / AP Router / AP Client Router (WISP) operation modes
- Passive PoE Adapter supports up to 60 meter (200 feet) Power over Ethernet deployment and allows the device to be reset remotely
What this product does

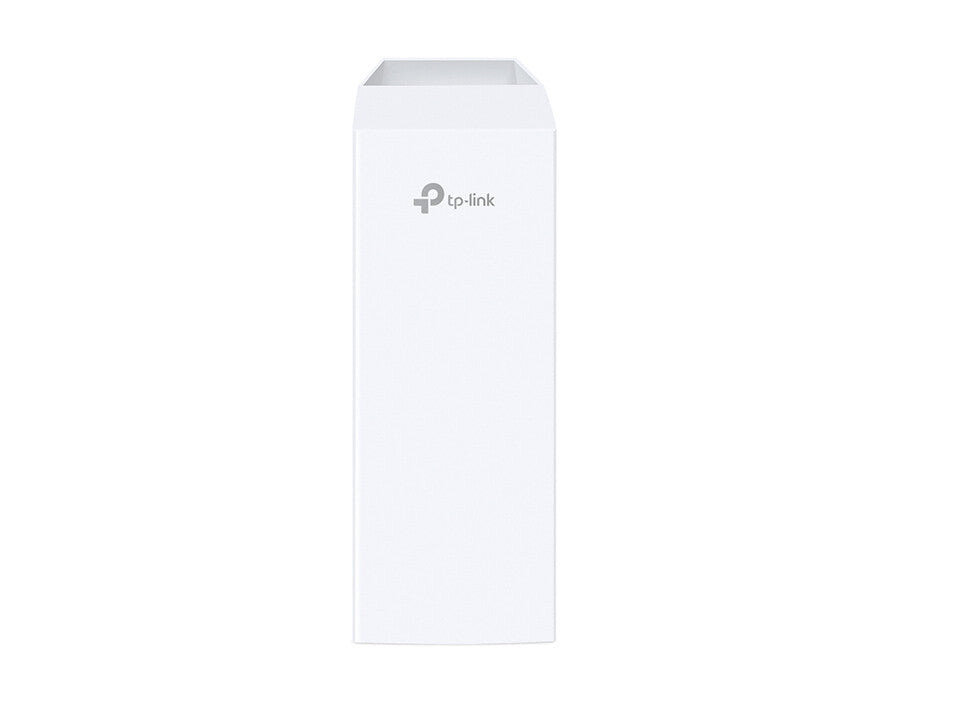

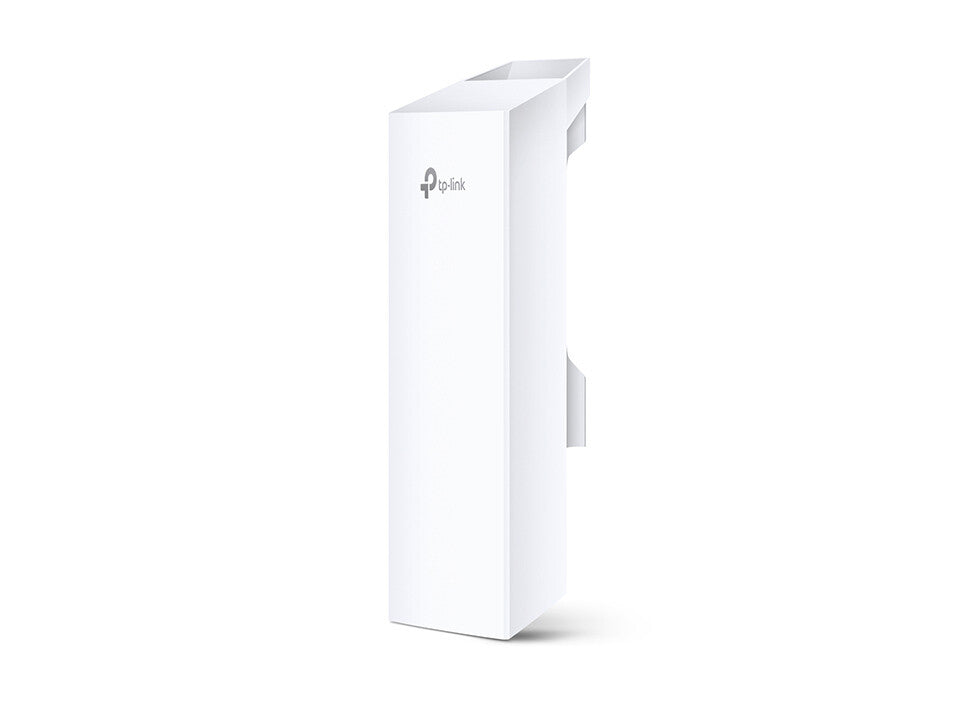

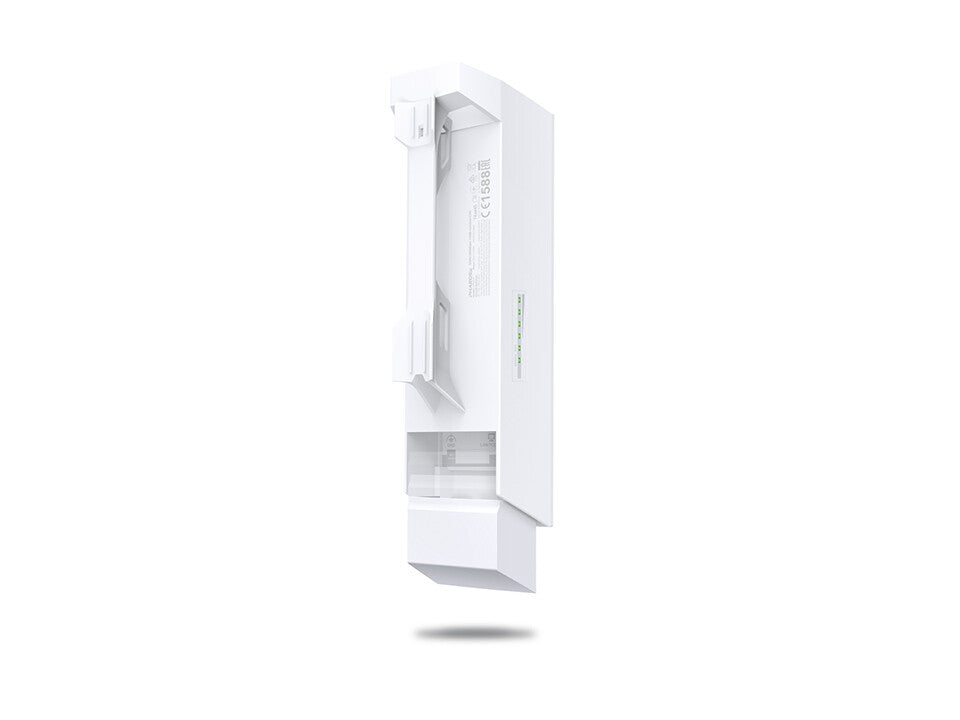

TP-LINK’s 2.4GHz 300Mbps 9dBi Outdoor CPE, the CPE210 is dedicated to cost effective solutions for outdoor wireless networking applications. With its centralized management application, it is ideal for point-to-point, point-to-multipoint and outdoor Wi-Fi coverage applications. Professional performance, coupled with user-friendly design, makes CPE210 an ideal choice for both business and home users.
Enterprise Hardware Design
With Qualcomm Atheros enterprise level chipsets, high gain antennas and high quality material, specially designed enclosure, and PoE power supply, CPE210 is specially designed for outdoor use and can operate flawlessly in almost any climate, with operating temperatures ranging from -30℃ (-22℉) to +70 ℃ (158℉).
Advanced Antenna System
Built-in High Gain Dual-Polarized Antenna and dedicated metal reflection ensures higher gain and lower noise interference.
High Power & High Sensitivity
In advanced, high power Tx (up to 27dBm/500mw) and high sensitivity Rx (up to -95dBm) radio front-end design breaks down the barriers of traditional Wi-Fi transmission range, making CPE210 an ideal product for outdoor wireless networking applications.
Professional Outdoor Design
CPE210 is designed to work in harsh environments, even in some of the world’s most hostile climate conditions.
Weatherproof Design
With its outdoor weatherproof enclosure and industrial-level hardware design, CPE210 can continue operating in various weather conditions, such as sunshine, rainfall, wind, snow or extremely low/high temperature environment(-30°C~70°C).
Double Protection against ESD Attacks
Besides its grounding terminal, CPE210 offers another way to eliminate ESD attacks via the PoE adapter and Ethernet cable with grounding wire. The CPE210’s additional security measures provide up to 15KV ESD and 6000V lightning protection for more reliable operation.
TP-LINK MAXtream TDMA Technology
As network scale increases, wireless competition and collisions among CPEs and base stations will be so enormous that the real throughput of the network will drop, resulting in a serious impact on end-user experience, to mitigate these effects, the CPE210 uses MAXtream TDMA Technology.
5km+ Wireless Data Transmission
Specially designed for outdoor uses, ideal for long distance wireless data transmission over 5km+, tested in the field.
Pharos Control – Centralized Management System
CPE210 also comes equipped with centralized management software that helps users easily manage all the devices in their network from a single PC - Pharos Control. Functions like device discovery, status monitoring, firmware upgrading, and network maintenance can be managed using Pharos Control.
PharOS
User-friendly web-based management system allows professionals to apply more specific configurations
| Features |
|---|
| Receiver sensitivity |
802.11b:11M: -95dBm, 5.5M: -96dBm, 2M: -96dBm, 1M: -96dBm-802.11g:54M: -79dBm, 48M: -80dBm, 36M: -84dBm, 6-24M: -88dBm802.11n:MCS15: -76dBm, MCS14: -78dBm, MCS13: -80dBm,MCS12: -84dBm, MCS11: -87dBm, MCS10: -91dBm,MCS9: -93dBm, MCS8: -96dBm, MCS7: -76dBm,MCS6: -78dBm, MCS5: -80dBm, MCS4: -84dBm,MCS3: -87dBm, MCS2: -91dBm, MCS1: -93dBm, MCS0: -96dBm |
| Maximum outdoor range |
5000 m |
| Virtual LAN features |
Tagged VLAN |
| VLAN support |
Yes |
| MIMO |
Yes |
| Networking standards |
IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Bandwidth |
2.4 GHz |
| Frequency band |
2.4 - 2.483 GHz |
| Wi-Fi data rate (max) |
300 Mbit/s |
| Maximum data transfer rate (2.4 GHz) |
300 Mbit/s |
| Maximum data transfer rate |
300 Mbit/s |
| 5 GHz |
No |
| 6 GHz |
No |
| 2.4 GHz |
Yes |
| Security |
|---|
| IGMP snooping |
Yes |
| MAC address filtering |
Yes |
| Security algorithms |
SSID, TKIP, WPA, WPA-PSK, WPA2, WPA2-PSK |
| Protocols |
|---|
| Management protocols |
TDMA |
| Management features |
|---|
| Management platform |
Pharos Control |
| Web-based management |
Yes |
| Ports & interfaces |
|---|
| WAN connection |
Ethernet (RJ-45) |
| Ethernet LAN (RJ-45) ports |
1 |
| Power |
|---|
| Power consumption (max) |
10.5 W |
| DC voltage range |
16 - 27 V |
| Power over Ethernet (PoE) |
Yes |
| Design |
|---|
| Internal |
No |
| LED indicators |
Yes |
| Reset button |
Yes |
| International Protection (IP) code |
IPX5 |
| Product colour |
White |
| Placement |
Wall |
| Antenna |
|---|
| Antenna gain level (max) |
9 dBi |
| Antennas quantity |
1 |
| Antenna features |
Integrated antenna |
| Antenna type |
Internal |
| Performance |
|---|
| Compatible operating systems |
Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 8, Windows 7, MAC OS, NetWare, UNIX or Linux. |
| Flash memory |
8 MB |
| Internal memory |
64 MB |
| Processor frequency |
560 MHz |
| Processor model |
Qualcomm Atheros |
| Built-in processor |
Yes |
| Certificates |
|---|
| Certification |
- FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark- RoHS, IPX5 |
| Weight & dimensions |
|---|
| Height |
60.3 mm |
| Depth |
79 mm |
| Width |
224.4 mm |
| Packaging data |
|---|
| Package height |
106 mm |
| Package depth |
132 mm |
| Package width |
270 mm |
| Packaging content |
|---|
| Mounting kit |
Yes |
| Cables included |
AC |
| Other features |
|---|
| Transmit power range |
0 - 27 dBmW |
| Operational conditions |
|---|
| Storage relative humidity (H-H) |
5 - 95% |
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating temperature (T-T) |
-30 - 70 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Logistics data |
|---|
| Harmonized System (HS) code |
85176990 |
