High-Speed Dual Band Adapter for Better Connections
Wireless AC technology means Archer T3U delivers connections that are up to 3x faster than with the previous Wireless N standard. High-speed Wi-Fi (up to 867Mbps over the 5GHz band and 400Mbps over the 2.4GHz band) means Archer T3U is able to support all your online activities, from HD video streaming to lag-free online gaming and web surfing.

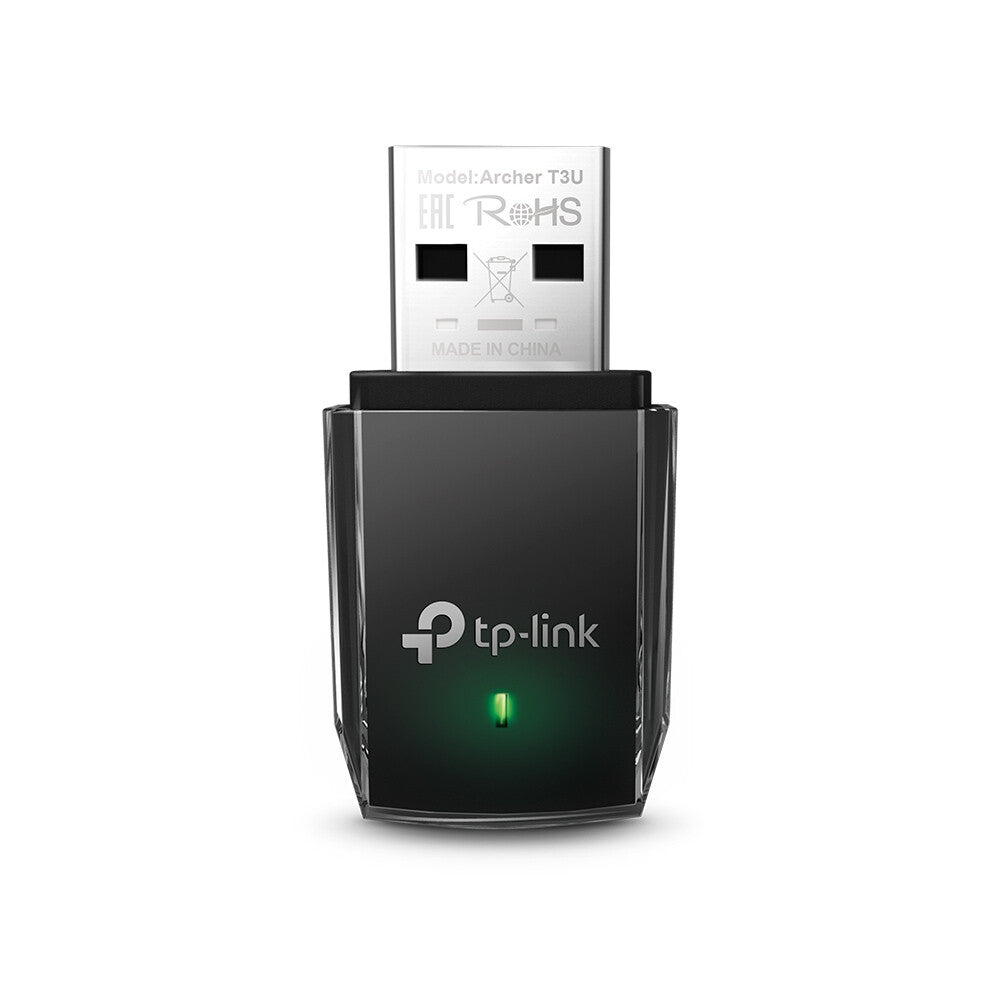

Miniature Design - Makes It Easy to Take
Archer T3U has a smart design that is tinier than a usual USB adapter. Not only could it be inserted into any USB port, but is quite easy to carry, which is convenient for most usage scenarios.
USB 3.0 for Superior Transfer Speeds
Experience blazing-fast data transfers of up to 4.8Gbps with USB 3.0 — the latest USB connectivity standard. USB 3.0 transfers data up to 10x faster than USB 2.0 and is also backwards compatible with USB 2.0. Combined with 802.11ac Wi-Fi, USB 3.0 makes Archer T3U ideal for HD streaming, online gaming and large file downloads.
Boosted Throughput with MU-MIMO
With MU-MIMO technology, Archer T3U can provide two simultaneous data streams, improving the throughput and efficiency of the entire network when working with a compatible MU-MIMO router.
| Ports & interfaces |
|---|
| USB version |
3.2 Gen 1 (3.1 Gen 1) |
| Interface |
WLAN |
| Host interface |
USB |
| Connectivity technology |
Wireless |
| Network |
|---|
| Bandwidth (first) |
2.4 GHz |
| Bandwidth (second) |
5 GHz |
| Security algorithms |
64-bit WEP, 128-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK |
| WLAN data transfer rates supported |
11,54,300,400,867 Mbit/s |
| Wi-Fi standards |
802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Frequency range |
2.4 - 5 GHz |
| Top Wi-Fi standard |
Wi-Fi 5 (802.11ac) |
| Wi-Fi band |
Dual-band (2.4 GHz / 5 GHz) |
| Wi-Fi |
Yes |
| Networking standards |
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Maximum data transfer rate |
1267 Mbit/s |
| Design |
|---|
| Certification |
CE, FCC |
| Receiver sensitivity |
5GHz：11a 6Mbps: -91dBm11a 54Mbps: -76dBm11n HT20：-71dBm11n HT40：-70dBm11ac HT20: -68dBm11ac HT40: -64dBm11ac HT80: -62dBm2.4GHz:11b 11Mbps: -86dBm11g 54Mbps: -73dBm11n HT20: -71dBm11n HT40: -70dBm |
| LED indicators |
Status |
| Antenna |
Yes |
| Antenna design |
Internal |
| Product colour |
Black |
| Component for |
PC/Laptop |
| Internal |
No |
| System requirements |
|---|
| Mac operating systems supported |
Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.9 Mavericks |
| Windows operating systems supported |
Windows 10, Windows 7, Windows 8, Windows 8.1, Windows XP |
| Operational conditions |
|---|
| Storage relative humidity (H-H) |
5 - 90% |
| Operating relative humidity (H-H) |
10 - 90% |
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating temperature (T-T) |
0 - 40 °C |
| Weight & dimensions |
|---|
| Height |
10.3 mm |
| Depth |
19.7 mm |
| Width |
40.5 mm |
| Packaging data |
|---|
| Package height |
30 mm |
| Package depth |
128 mm |
| Package width |
138 mm |
| Package type |
Box |
| Packaging content |
|---|
| Quick installation guide |
Yes |
| Technical details |
|---|
| Compliance certificates |
RoHS |
| Other features |
|---|
| Quantity per pack |
1 pc(s) |
| Transmit power range |
23 - 23 dBmW |
