Wi-Fi 6 Upgrades Everything
The advanced Wi-Fi technology brings faster speeds, less lag, and higher capacity, enabling more simultaneous connections on your home network.
Gigabit Broadband Internet Access

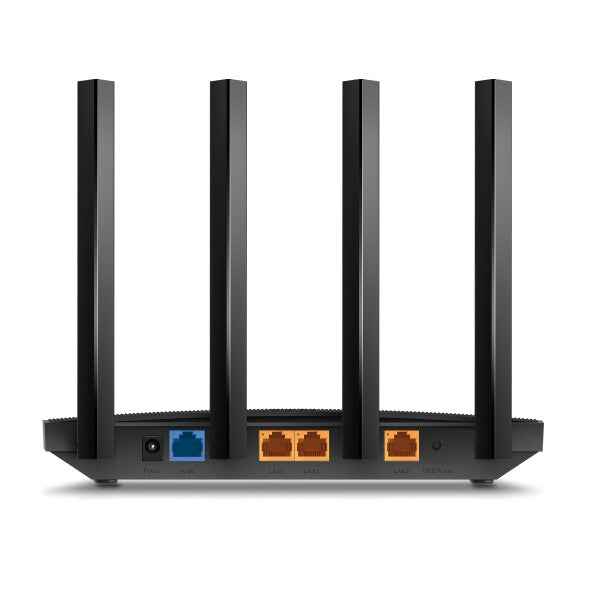

All gigabit Ethernet ports allow you to take full advantage of your broadband speed up to 1 Gbps. Plug your PCs, smart TVs, and game consoles into one of the three gigabit ethernet LAN ports for fast, reliable wired connections.
WiFi Coverage Throughout Your Home

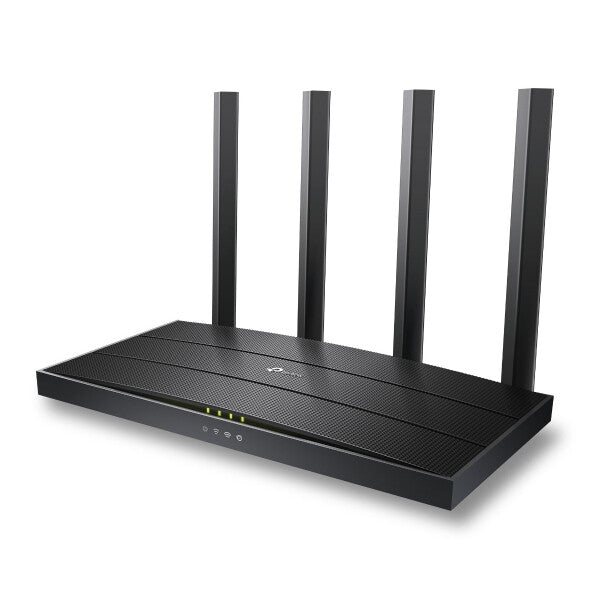

4 high-performance external antennas boost WiFi signals throughout your home. Beamforming technology detects devices and concentrates wireless signal strength towards them, especially for previously hard to reach outlets.
WPA3—New Level of Cyber Security
The latest Wi-Fi security protocol, WPA3, brings new capabilities to improve cybersecurity in personal networks. More secure encryption in Wi-Fi password safety and enhanced protection against brute-force attacks combine to safeguard your home Wi-Fi.
Easy Setup and Use
Whether you prefer the intuitive Tether app or TP-Link’s powerful web interface, you can set up your Archer AX12 in minutes.
The Tether app allows you to manage network settings from any Android or iOS device.
| WAN connection |
|---|
| 3G/4G USB modem compatibility |
No |
| SIM card slot |
No |
| DSL WAN |
No |
| Ethernet WAN |
Yes |
| Wireless LAN features |
|---|
| WLAN data transfer rate (second band) |
1201 Mbit/s |
| WLAN data transfer rate (first band) |
300 Mbit/s |
| Wi-Fi standards |
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| WLAN data transfer rate (max) |
1501 Mbit/s |
| Top Wi-Fi standard |
Wi-Fi 6 (802.11ax) |
| Wi-Fi band |
Dual-band (2.4 GHz / 5 GHz) |
| Network |
|---|
| Dynamic DNS (DDNS) |
Yes |
| Port forwarding |
Yes |
| Port triggering |
Yes |
| Networking standards |
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Ethernet LAN interface type |
Fast Ethernet |
| Ethernet LAN |
Yes |
| Ports & interfaces |
|---|
| USB port |
No |
| Ethernet LAN (RJ-45) ports |
4 |
| Management features |
|---|
| Reset button |
Yes |
| Quality of Service (QoS) support |
Yes |
| Security |
|---|
| DMZ support |
Yes |
| URL filtering |
Yes |
| Firewall |
Yes |
| Security algorithms |
WPA-Enterprise, WPA-PSK, WPA2-Enterprise, WPA2-PSK, WPA3 |
| Protocols |
|---|
| Universal Plug and Play (UPnP) |
Yes |
| Design |
|---|
| Product colour |
Black |
| Product type |
Tabletop router |
| General |
|---|
| Product family |
Archer |
| Packaging content |
|---|
| Quick installation guide |
Yes |
| Certificates |
|---|
| Compliance certificates |
CE, Federal Communications Commission (FCC), RoHS |
| Antenna |
|---|
| Antennas quantity |
4 |
| Antenna design |
External |
| Power |
|---|
| Power source type |
AC |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-40 - 60 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Storage relative humidity (H-H) |
5 - 90% |
| Weight & dimensions |
|---|
| Width |
215 mm |
| Depth |
117 mm |
| Height |
32 mm |
