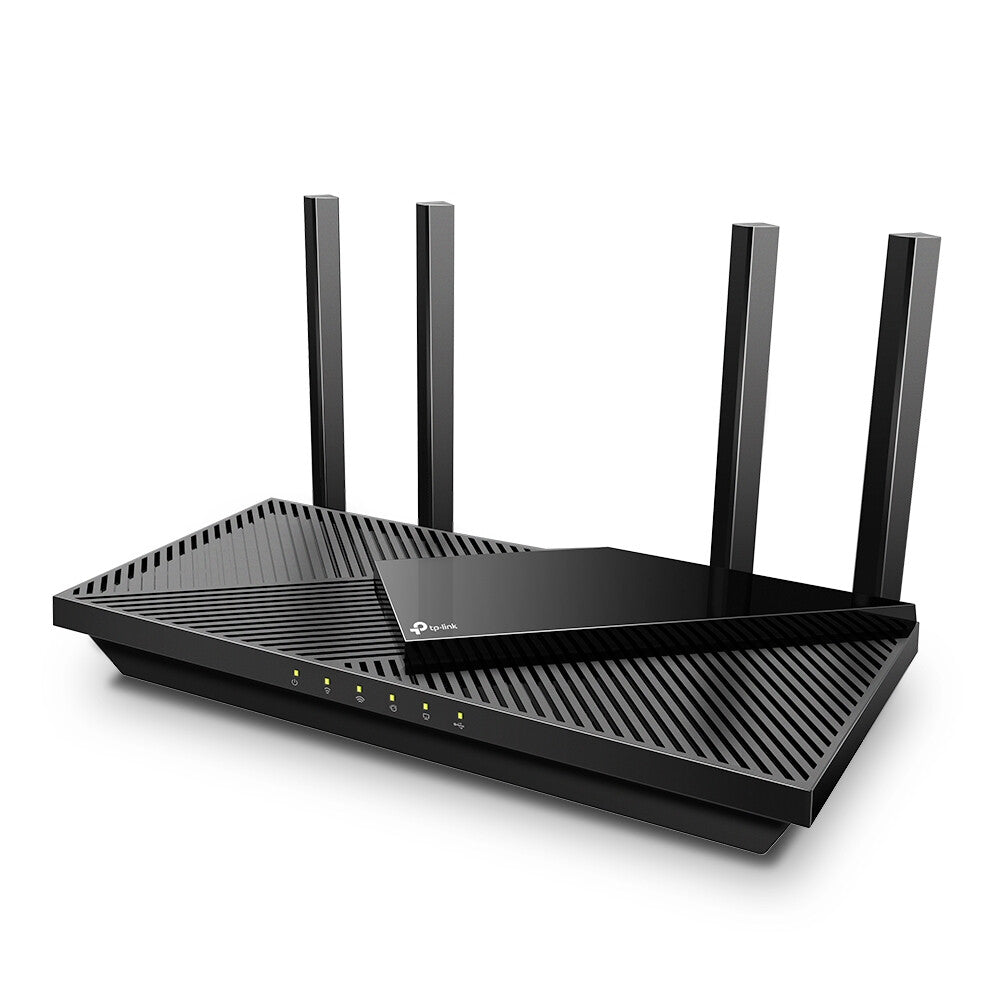

Wi-Fi 6 Upgrades Everything
The latest generation of Wi-Fi technology brings faster speeds, less lag, and higher capacity, enabling more simultaneous connections on your home network.
Incredible Speed
Drastically improved speeds enable streaming, fast downloading, and gaming—all at the same time. 5 GHz with 160 MHz channel support doubles the bandwidth, enabling 8K video without lag.
More Responsive Experiences
Less Loading Wheels
Enjoy smooth gaming, video streaming, and live feed simultaneously. OFDMA makes your Wi-Fi stronger by allowing multiple clients to share one band at the same time, which cuts latency and jittering.
Powerful CPU and High Memory
Connect More without Dropping Speed
Behind the Wi-Fi 6 technology structure are the advanced Qualcomm chipset and high memory. Enjoy fast connections with minimal latency even under a heavy load of transmission. Every click for website links and online playback on your laptop and phone just responds quicker.
Improved Cooling Design Consistent Full Output
No heat-ups, no throttles. A larger heat sink and refined case design cool the Wi-Fi 6 system and enable your network to stay at top speed in more versatile environments.
Wi-Fi Coverage Throughout Your Home
4 high-performance external antennas boost Wi-Fi signals throughout your home. Beamforming technology detects devices and concentrates wireless signal strength towards them, especially for previously hard to reach outlets.
USB 3.0 Ports
Easily share files between connected devices by plugging into an external drive. You can even make it your personal cloud storage and access it from outside securely.
TP-Link OneMes™
Flexible Create Whole Home Wi-Fi with Archer AX55
Want to build a whole-home Wi-Fi? Archer AX55 supports OneMesh to form seamless whole-home coverage, preventing drops and lag when moving between signals.
TP-Link HomeShield:
Advanced Security for Your Everyday Devices
With TP-Link HomeShield, enjoy advanced security features delivering a safe environment that protects your family and network's data and privacy.
Home Network Scanner
Real-time network scanner to detect potential threats and security issues.
Parental Controls
Manage time online and block inappropriate content keeping your family safe online.
Quality of Service
Assign your favourite devices to have the fastest connections for top performance.
WPA3—New Level of Cyber Security
The latest Wi-Fi security protocol, WPA3, brings new capabilities to improve cybersecurity in personal networks. More secure encryption in Wi-Fi password safety and enhanced protection against brute-force attacks combine to safeguard your home Wi-Fi.
Easy Setup and Use
Whether you prefer the intuitive Tether app or TP-Link’s powerful web interface, you can set up your Archer AX55 in minutes. The Tether App allows you to manage network settings from any Android or iOS device.
Protect Your Children
Block inappropriate content for your children, and customize a time range for better online habits.
New Connection Notification
You will be notified by your phone when new devices connect. Kick-off any suspicious connections and block them. It’s as simple as that.
Easy Firmware Upgrade
Tired of upgrading firmware? OTA updates enable easy firmware upgrades with a click in the management panel. To keep your security and functions always up-to-date, just turn on the auto-schedule.
| WAN connection |
|---|
| WAN connection type |
RJ-45 |
| 3G/4G USB modem compatibility |
No |
| SIM card slot |
No |
| DSL WAN |
No |
| Ethernet WAN |
Yes |
| Wireless LAN features |
|---|
| WLAN data transfer rate (second band) |
2402 Mbit/s |
| WLAN data transfer rate (first band) |
574 Mbit/s |
| Wi-Fi standards |
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| WLAN data transfer rate (max) |
2976 Mbit/s |
| Top Wi-Fi standard |
Wi-Fi 6 (802.11ax) |
| Wi-Fi band |
Dual-band (2.4 GHz / 5 GHz) |
| Network |
|---|
| VPN server |
OpenVPN, PPTP |
| Media server |
Yes |
| Built-in FTP server |
Yes |
| Number of guest networks (2.4 GHz) |
1 |
| Number of guest networks (5 GHz) |
1 |
| Dynamic DNS (DDNS) |
Yes |
| Port forwarding |
Yes |
| Port triggering |
Yes |
| Cabling technology |
10/100/1000Base-T(X) |
| Ethernet LAN data rates |
1000 Mbit/s |
| Ethernet LAN interface type |
Gigabit Ethernet |
| Ethernet LAN |
Yes |
| Ports & interfaces |
|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
1 |
| USB port |
Yes |

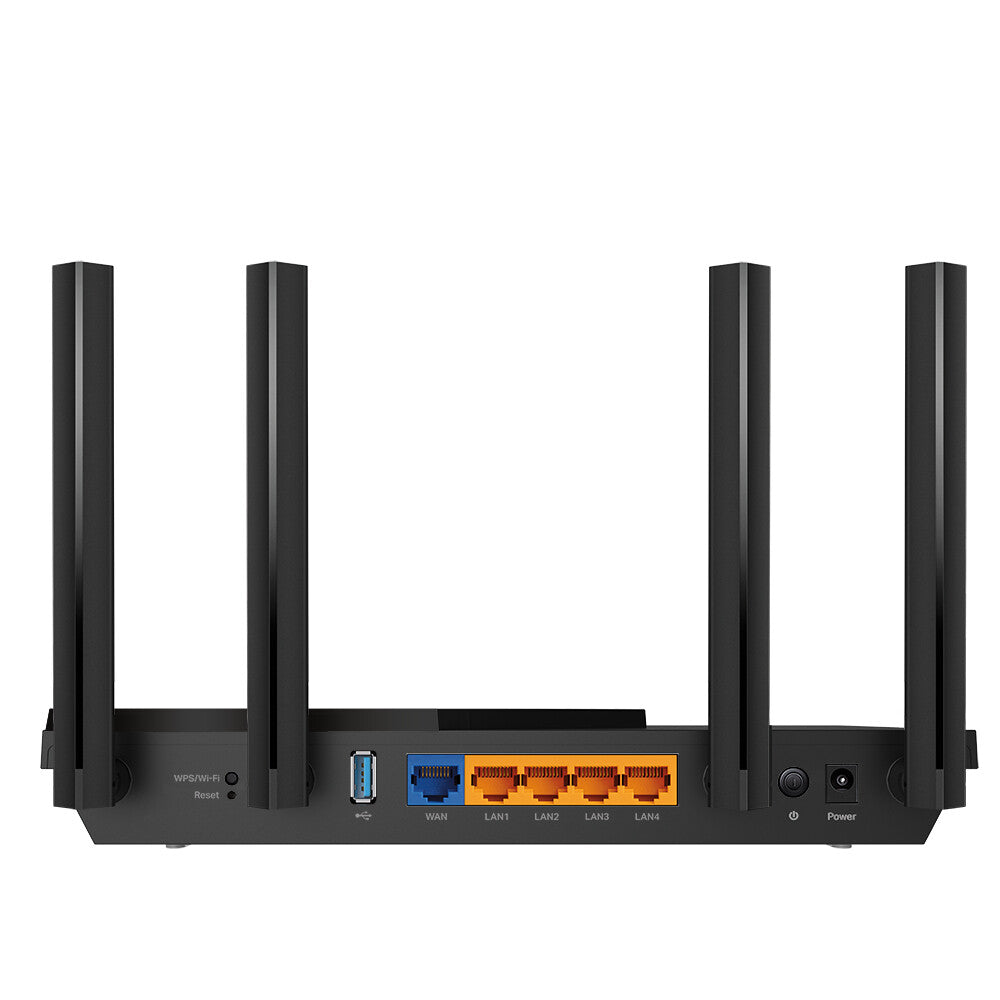

| Ethernet LAN (RJ-45) ports |
4 |
| Management features |
|---|
| WPS push button |
Yes |
| Intelligent Mesh technology |
Yes |
| Reset button |
Yes |
| Quality of Service (QoS) support |
Yes |
| Security |
|---|
| Network address translation (NAT) |
Yes |
| DMZ support |
Yes |
| Filtering |
Yes |
| DoS attack prevention |
Yes |
| Parental control |
Yes |
| DDoS protection |
Yes |
| Firewall |
Yes |
| Security algorithms |
WPA, WPA-Enterprise, WPA2, WPA2-Enterprise, WPA3 |
| Protocols |
|---|
| Supported network protocols |
IPv4, IPv6 |
| Universal Plug and Play (UPnP) |
Yes |
| DHCP server |
Yes |
| DHCP client |
Yes |
| Design |
|---|
| On/off switch |
Yes |
| Product colour |
Black |
| Product type |
Tabletop router |
| General |
|---|
| Product family |
Archer |
| Packaging content |
|---|
| Quick installation guide |
Yes |
| AC adapter included |
Yes |
| Cables included |
LAN (RJ-45) |
| Sustainability |
|---|
| Sustainability compliance |
Yes |
| Certificates |
|---|
| Compliance certificates |
RoHS, Federal Communications Commission (FCC), CE |
| Antenna |
|---|
| Detachable antenna(s) |
No |
| Antennas quantity |
4 |
| Antenna design |
External |
| Features |
|---|
| Firmware upgradeable |
Yes |
| Works with Amazon Alexa |
Yes |
| Internal memory |
512 MB |
| Processor cores |
2 |
| Built-in processor |
Yes |
| Power |
|---|
| External power adapter |
Yes |
| Output current |
2 A |
| Output voltage |
12 V |
| Power source type |
AC |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| System requirements |
|---|
| Browser supported |
Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+ |
| Weight & dimensions |
|---|
| Width |
261.1 mm |
| Depth |
134.5 mm |
| Height |
41 mm |
| Packaging data |
|---|
| Number of products included |
1 pc(s) |
| Package weight |
940 g |
| Package height |
73 mm |
| Package depth |
240 mm |
| Package width |
330 mm |
| Logistics data |
|---|
| Harmonized System (HS) code |
85176990 |
