Fast. Stable. Everywhere.

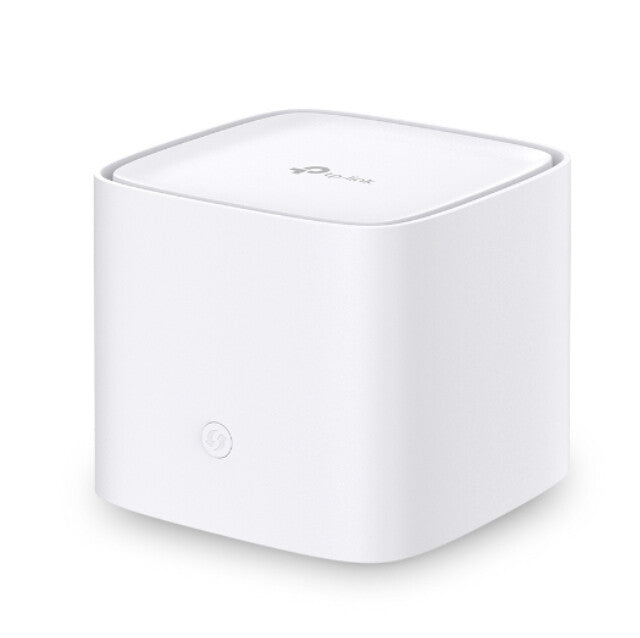

AX1800 Whole Home Mesh WiFi System
Advanced Mesh Powered by WiFi 6
Armed with WiFi 6 technology, HX220 provides faster speeds up to 1.8 Gbps for buffer-free 8K/4K streaming and gaming even with all smart home, mobile, and other electronic devices connected.
Extensive WiFi Coverage
Beamforming technology and high-performance antennas combine to adapt WiFi coverage to perfectly fit home and concentrate signal strength towards every device.
Whole Home Coverage
Empowered by EasyMesh technology, HX220 provides a strong WiFi signal in every corner of your home. Wireless connections and optional Ethernet backhaul work together to link each unit, providing even faster network speeds and truly seamless coverage. Want more coverage? Simply add another HX220 whenever you want.
Seamless Roaming with One WiFi Name
All units work together to form one unified network. Your mobile device will automatically connect to the fastest unit when you move through your home, creating a truly seamless WiFi experience.
Stable Connections, No More Buffering
Enhanced by WiFi 6, featuring with OFDMA and MU-MIMO technology**, HX220 allows you to connect over 250+ devices. Enjoy a more efficient network that loads faster without dragging down performance.
2-in-1 Router and Access Point
Flexible and multifunctional, HX220 includes a variety of features to serve as a router or access point. Choose the mode for actual network demands and experience maximum wireless flexibility.
More Ethernet Ports for More Options

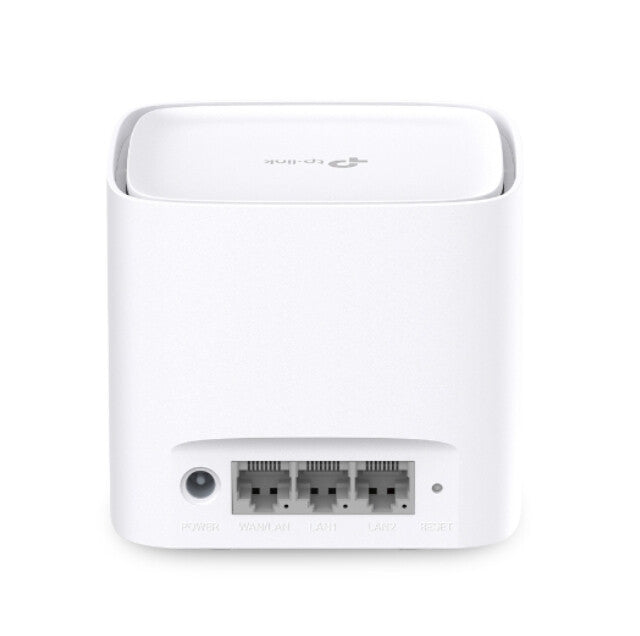

Each unit has 3 Gigabit Ethernet ports for fast and reliable wired connections. Supports wired Ethernet Backhaul for more stable speeds.
Easy to Set Up and Use
You can set up your device in minutes, whether you prefer the powerful Aginet app or the intuitive web interface. The Aginet app allows you to manage network settings from your smart phone or tablet.
Support TR-069 Remote Management
ISPs can remotely configure and manage the devices via ACS (Auto-Configuration Server). High-level operations are also supported thanks to compatibility with TR-181, TR-111, and TR-143 protocols.
Aginet Solution: End-to-End Management System for ISPs
The Aginet solution offers ISPs powerful and flexible platforms to manage multiple devices for connected homes, such as dynamic service provisioning, zero-touch firmware upgrading, and remote troubleshooting and mesh WiFi diagnostics.
| Design |
|---|
| Reset button |
Yes |
| LED indicators |
Yes |
| Product type |
Mesh router |
| Product colour |
White |
| Wireless LAN features |
|---|
| Security algorithms |
WMM, WPA, WPA2, WPA3 |
| Networking standards |
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g |
| WLAN data transfer rate (second band) |
1201 Mbit/s |
| WLAN data transfer rate (first band) |
574 Mbit/s |
| Wi-Fi standards |
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| Top Wi-Fi standard |
Wi-Fi 6 (802.11ax) |
| Wi-Fi band |
Dual-band (2.4 GHz / 5 GHz) |
| Features |
|---|
| SSID Broadcast |
Yes |
| Supported WAN type |
Dynamic IP, Static IP, PPPoE |
| Parental control |
Yes |
| Mobile operating systems supported |
Android 4.4, iOS 9.0 |
| Transmitting power (FCC) |
30 dBm |
| Transmitting power (CE) |
20 - 23 dBm |
| Firewall security |
SPI Firewall |
| Port forwarding |
Yes |
| Quality of Service (QoS) support |
Yes |
| Ports & interfaces |
|---|
| Ethernet WAN |
Yes |
| Ethernet LAN (RJ-45) ports |
3 |
| Power |
|---|
| AC adapter input current |
1 A |
| AC input voltage |
12 V |
| Certificates |
|---|
| Certification |
CE, FCC |
| Compliance certificates |
CE |
| Operational conditions |
|---|
| Storage relative humidity (H-H) |
5 - 90% |
| Operating relative humidity (H-H) |
10 - 90% |
| Storage temperature (T-T) |
-40 - 60 °C |
| Operating temperature (T-T) |
0 - 40 °C |
| Weight & dimensions |
|---|
| Height |
89.5 mm |
| Depth |
100 mm |
| Width |
100 mm |
| Packaging content |
|---|
| Ethernet cable |
Yes |
| Number of units included |
1 pc(s) |
| AC adapter included |
Yes |
| Number of products included |
1 pc(s) |
