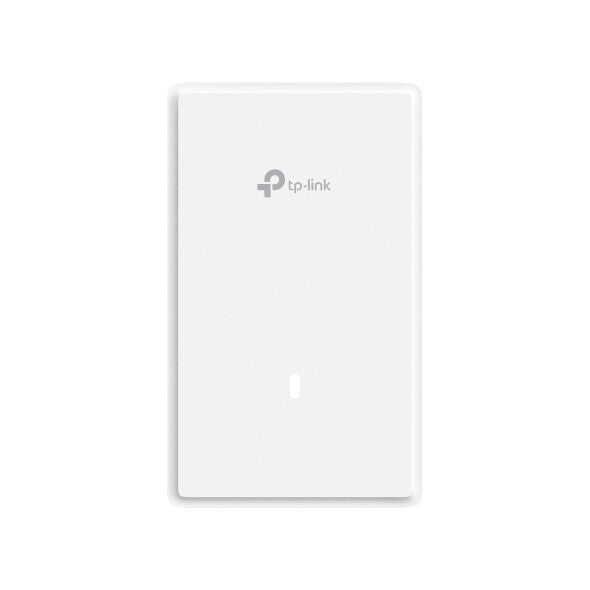

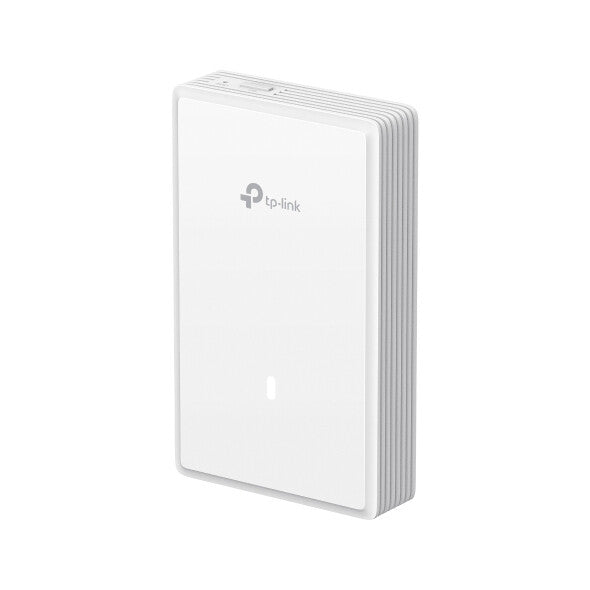

BE3600 WiFi 7 Wall
Plate Access Point for
Ultra-Fast Connectivity
Optimized Wired Performance
with 2.5G PoE Ports

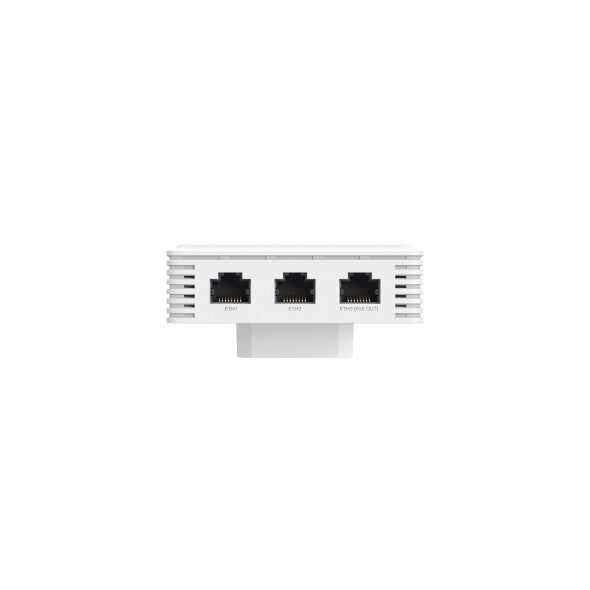

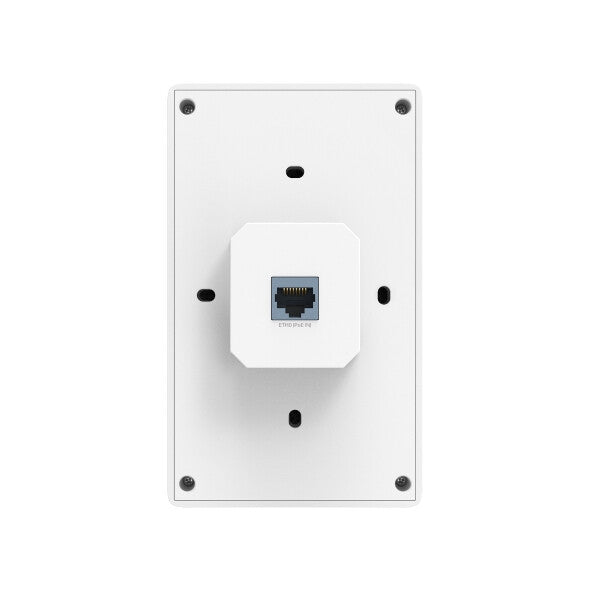

With 2.5G PoE input and pass-through ports, along with two Gigabit RJ45 ports, enjoy high-speed data transfers and connect multiple devices to your gigabit network. Wired devices, such as IP Phones, can be powered without the need for additional electrical cables.
Seamless Integration into the Omada SDN
Remotely manage your access points, switches, and routers across multiple sites — all from a single interface.
| Features |
|---|
| BeamForming |
Yes |
| Airtime Fairness (ATF) |
Yes |
| VLAN support |
Yes |
| Number of users |
250 user(s) |
| Networking standards |
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11be, IEEE 802.11g, IEEE 802.11n, IEEE 802.3at |
| Ethernet LAN data rates |
10,100,1000,2500 Mbit/s |
| Maximum data transfer rate (5 GHz) |
2882 Mbit/s |
| Maximum data transfer rate (2.4 GHz) |
688 Mbit/s |
| Maximum data transfer rate |
5012 Mbit/s |
| 5 GHz |
Yes |
| 6 GHz |
No |
| 2.4 GHz |
Yes |
| Security |
|---|
| Access Control List (ACL) |
Yes |
| Remote Authentication Dial-In User Service (RADIUS) |
Yes |
| Number of SSID supported |
16 |
| MAC address filtering |
Yes |
| Ports & interfaces |
|---|
| Ethernet LAN (RJ-45) ports |
3 |
| Power |
|---|
| Power consumption (max) |
17 W |
| Power over Ethernet (PoE) |
Yes |
| Design |
|---|
| LED indicators |
Yes |
| Reset button |
Yes |
| Product colour |
White |
| Placement |
Ceiling, Wall |
| Antenna |
|---|
| Antenna gain level (max) |
5 dBi |
| Antennas quantity |
4 |
| Antenna type |
Internal |
| Performance |
|---|
| Compatible operating systems |
Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows 11, Linux |
| Certificates |
|---|
| Certification |
FCC, RoHS |
| Weight & dimensions |
|---|
| Height |
143 mm |
| Depth |
40 mm |
| Width |
86 mm |
| Packaging data |
|---|
| Package type |
Box |
| Packaging content |
|---|
| Mounting kit |
Yes |
| Quantity per pack |
1 pc(s) |
| Operational conditions |
|---|
| Storage relative humidity (H-H) |
5 - 90% |
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating temperature (T-T) |
0 - 40 °C |
| Operating relative humidity (H-H) |
10 - 90% |
