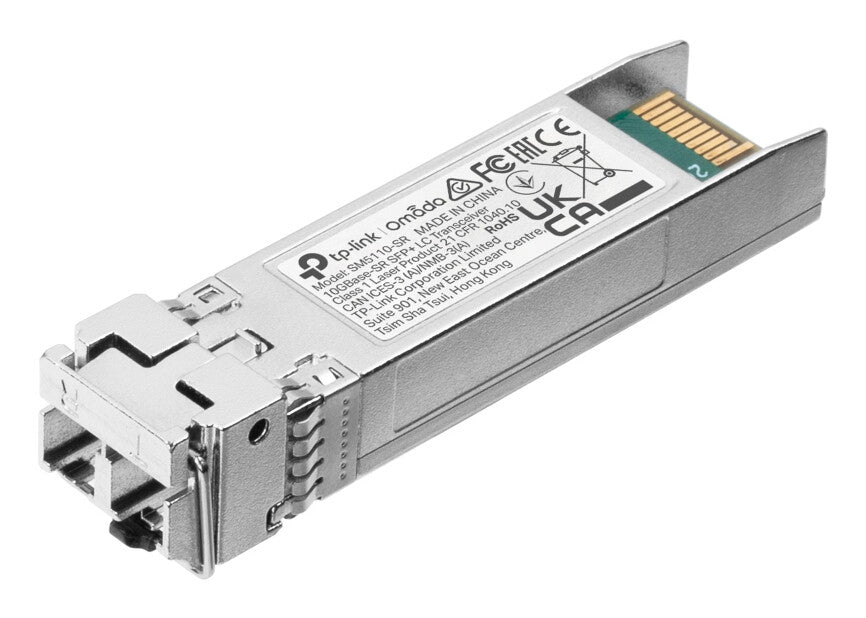

The SM5110-SR (TL-SM5110-SR) is designed to extend transfer distances based on 10Gbps Ethernet connectivity. It is a 10GBASE-SR high performance 850nm multi-mode SFP+ transceiver. It supports full duplex, 10G Ethernet connections up to 300m or 33m with 50/125µm or 62.5/125µm fiber cables respectively.
| Performance |
|---|
| Digital Diagnostics Monitoring (DDM) |
Yes |
| Wavelength |
850 nm |
| Maximum transfer distance |
300 m |
| Fiber cable diameters supported (core/cladding) |
50/125,62.5/125 µm |
| Fiber optic connector |
LC (UPC) |
| Multi-mode fiber (MMF) supported |
Yes |
| Interface type |
SFP+ |
| Maximum data transfer rate |
10000 Mbit/s |
| SFP transceiver type |
Fiber optic |
| Features |
|---|
| Hot-swap |
Yes |
| Product colour |
Silver |
| Power |
|---|
| Input voltage |
3.3 V |
| Certificates |
|---|
| Certification |
FCC, CE |
| Operational conditions |
|---|
| Storage relative humidity (H-H) |
5 - 90% |
| Operating relative humidity (H-H) |
10 - 90% |
| Storage temperature (T-T) |
-40 - 80 °C |
| Operating temperature (T-T) |
0 - 70 °C |
| Maximum operating temperature |
70 °C |
| Minimum operating temperature |
0 °C |
| Weight & dimensions |
|---|
| Height |
12.2 mm |
| Depth |
14.5 mm |
| Width |
61.3 mm |
| Packaging content |
|---|
| Quantity per pack |
1 pc(s) |
| Packaging data |
|---|
| Package weight |
60 g |
| Package height |
275 mm |
| Package depth |
270 mm |
| Package width |
220 mm |
| General |
|---|
| Product family |
Omada |
