Professional, Secure, and Reliable Gigabit Multi-WAN VPN Router with Centralized Management Capability
Omada SDN—The Smarter Cloud Solution for Business Networking
As the gateway that seamlessly integrates into the Omada Software Defined Networking (SDN) platform, TL-R605 allows for remote and centralized management, anywhere, anytime. Standalone management via the Web UI or app is also available to maximize convenience.

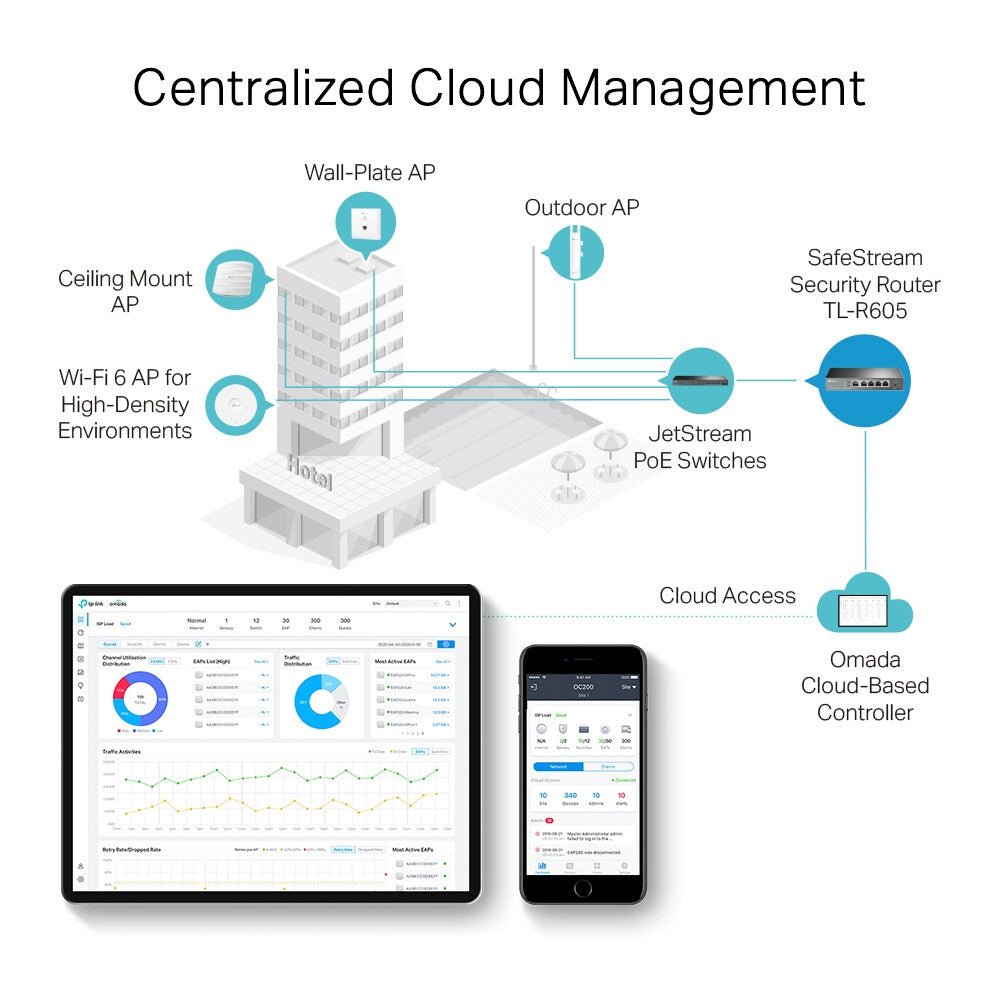

Hassle-Free Centralized Cloud Management:
100% centralized cloud management of whole network from different sites—all controlled from a single interface anywhere, anytime.

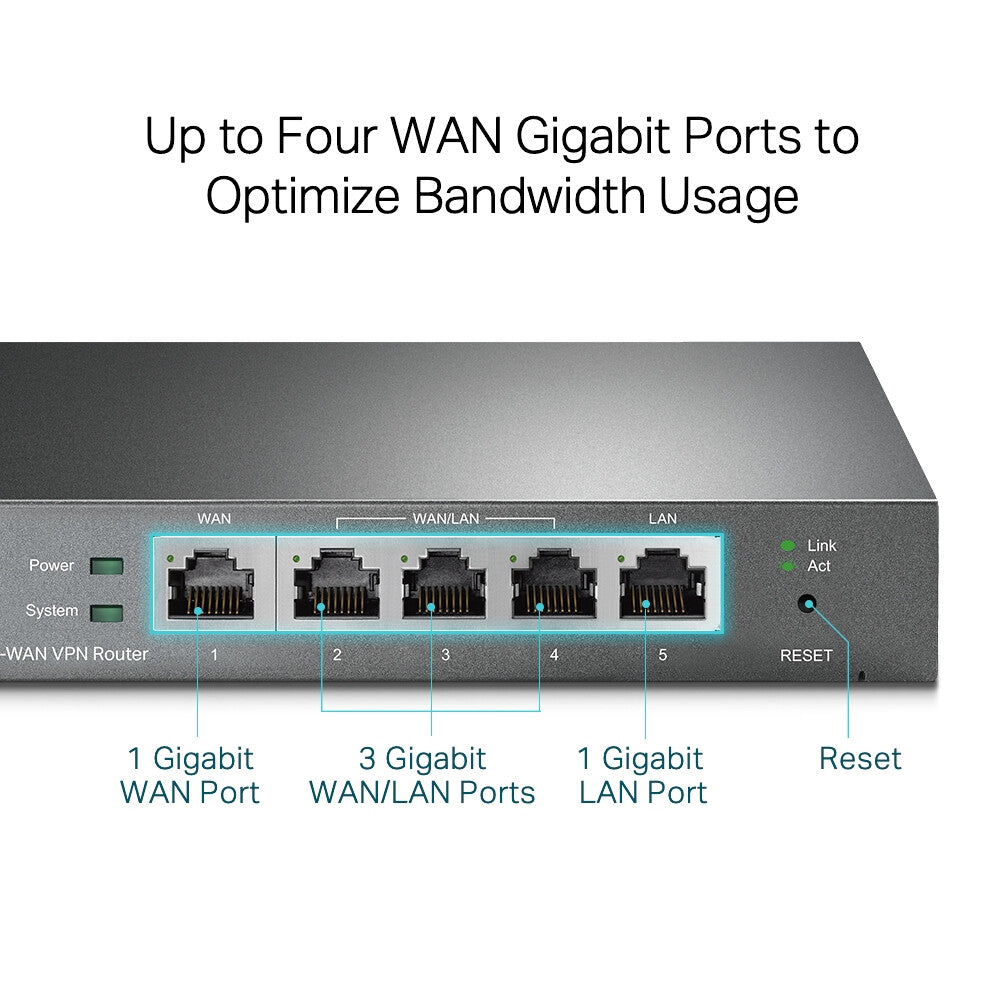

Up to Four WAN Gigabit Ports to Optimize Bandwidth Usage
Three freely interchangeable ports that can be set to either WAN or LAN allow the router to support up to four WAN ports to satisfy various internet access requirements through one device. The multi-WAN Load Balancing function distributes data streams according to the bandwidth proportion of every WAN port to raise the utilization rate of multi-line broadband.

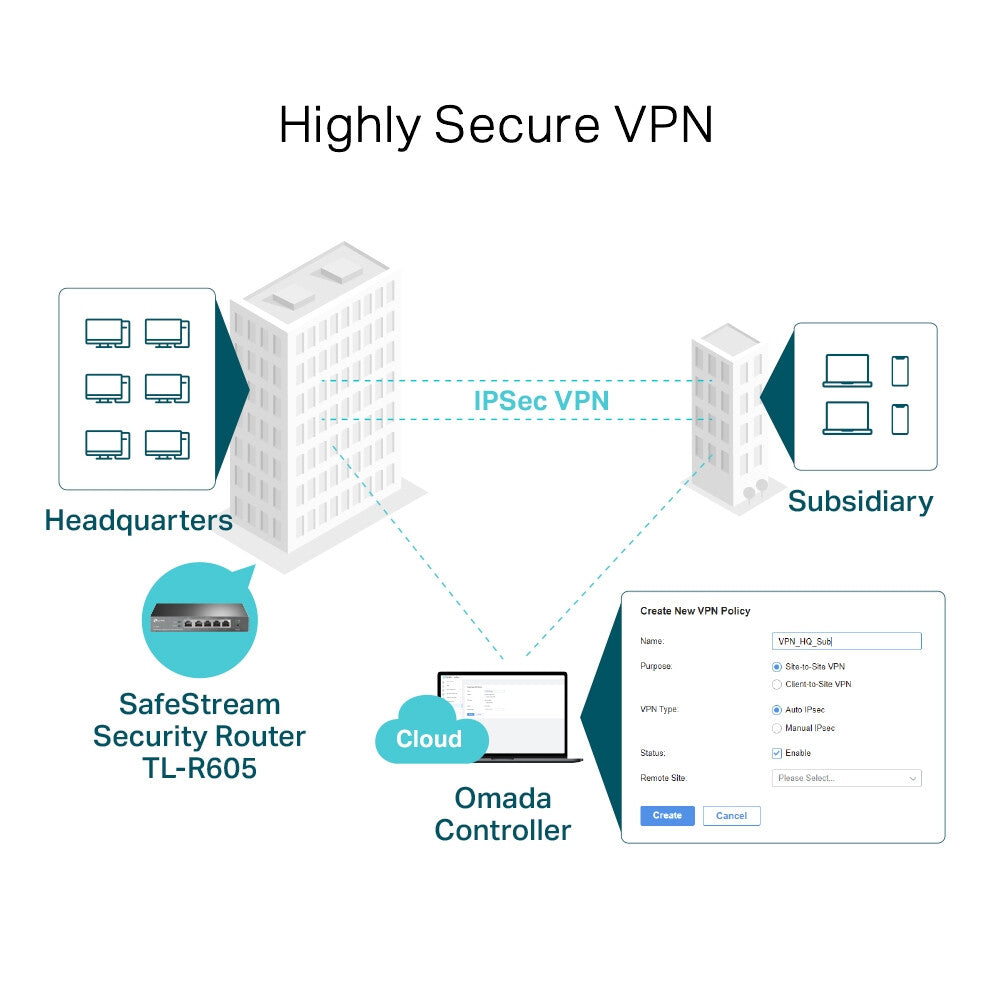

Highly Secure VPN
TL-R605 supports IPSec/PPTP/L2TP VPN over IPSec/SSL protocols. With a powerful hardware design, the router supports and manages up to 20× LAN-to-LAN IPsec, 16× OpenVPN*, 16× L2TP, and 16× PPTP VPN connections. One-click auto IPSec VPN* greatly simplifies VPN configuration and facilitates network management and deployment while also securing and encrypting private site-to-site data communications traveling over the internet.
Internet Access Management Strategy
Standardize users’ online behavior and easily specify the internet access rights and strategies of employee via IP/MAC/URL Filtering and Access Control List (ACL). Captive Portal authentication facilitates network resource control by capturing, authenticating, and classifying user access. Appropriate network resources can also be allocated for particular users or guests.
Easy Management with the Omada App
Follow configuration instructions on the free Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status and manage clients, all from the convenience of a smart phone or tablet.
| WAN connection |
|---|
| SFP WAN |
No |
| 3G/4G USB modem compatibility |
Yes |
| SIM card slot |
No |
| DSL WAN |
No |
| Ethernet WAN |
Yes |
| Network |
|---|
| Policy-based routing |
Yes |
| Static route |
Yes |
| VLAN support |
Yes |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Cabling technology |
10/100/1000Base-T(X) |
| Ethernet interface type |
Gigabit Ethernet |
| Networking standards |
IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x |
| Management features |
|---|
| Reset button |
Yes |
| Universal Plug and Play (UPnP) |
Yes |
| Web-based management |
Yes |
| Ports & interfaces |
|---|
| DC-in jack |
Yes |
| Gigabit Ethernet (copper) ports quantity |
4 |
| Ethernet LAN (RJ-45) ports |
4 |
| Protocols |
|---|
| DMZ support |
Yes |
| DHCP server |
Yes |
| Security |
|---|
| NAT functionality |
One-to-One NAT5Multi-Net NATVirtual ServerPort Triggering5NAT-DMZFTP/H.323/SIP/IPSec/PPTP ALG,UPnP |
| VPN tunnels quantity |
20 |
| System event log |
Yes |
| Network address translation (NAT) |
Yes |
| Access Control List (ACL) |
Yes |
| ARP attack prevention |
Yes |
| ICMP attack prevention |
Yes |
| DoS attack prevention |
Yes |
| URL filtering |
Yes |
| Firewall |
Yes |
| Security algorithms |
FTPES, SIPS |
| Packaging content |
|---|
| Quick installation guide |
Yes |
| Cables included |
LAN (RJ-45) |
| AC adapter included |
Yes |
| Features |
|---|
| Certification |
CE, FCC, RoHS |
| Linux operating systems supported |
Yes |
| Mac operating systems supported |
MacOS |
| Windows operating systems supported |
Windows 10, Windows 7, Windows 8, Windows 8.1, Windows 98SE, Windows Vista, Windows XP |
| Internal memory |
256 MB |
| Flash memory |
128 MB |
| Design |
|---|
| LED indicators |
LAN, Power, Status, WAN |
| Product colour |
Black |
| Power |
|---|
| Output current |
1 A |
| Output voltage |
12 V |
| Input current |
1 A |
| Power source type |
DC |
| Operational conditions |
|---|
| Storage relative humidity (H-H) |
5 - 90% |
| Operating relative humidity (H-H) |
10 - 90% |
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating temperature (T-T) |
0 - 40 °C |
| Weight & dimensions |
|---|
| Height |
25 mm |
| Depth |
101 mm |
| Width |
158 mm |
| Logistics data |
|---|
| Harmonized System (HS) code |
85176990 |
