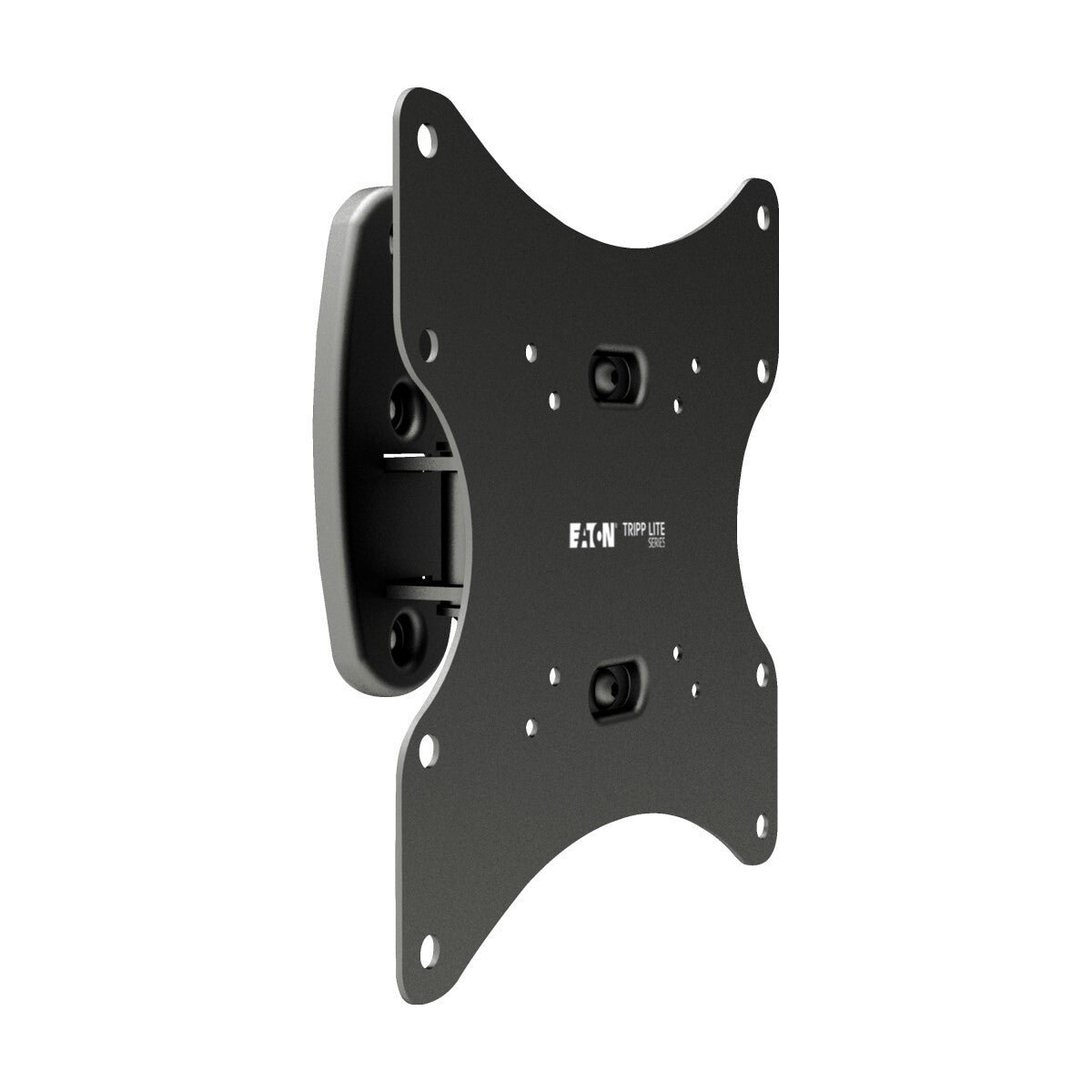

The VESA-compliant DWM1742MN Swivel/Tilt Wall Mount allows you to mount your flat-panel television, monitor or other display on the wall. Ideal for home theaters, classrooms, boardrooms, hotels, bars and restaurants, it fits most flat-panel displays from 17 to 42 inches.
Adjust the display angle to fit your environment and comfort level. An 80° swivel, -15° to +15° tilt and -4° to +4° screen level adjustment capability minimizes glare and provides comfortable viewing from multiple angles.
Mounting |
Panel mounting interface |
75 x 75,100 x 100,200 x 100,200 x 200 |
Maximum VESA mount |
200 x 200 mm |
Minimum VESA mount |
75 x 75 mm |
Mounting type |
Wall |
Maximum screen size |
106.7 cm (42") |
Minimum screen size |
43.2 cm (17") |
Maximum weight capacity |
52 kg |
Ergonomics |
Swivel angle |
80° |
Tilt angle range |
-15 - 15° |
Design |
Product colour |
Black |
Technical details |
Country of origin |
China |
Compliance certificates |
RoHS |
Weight & dimensions |
Weight |
1.42 kg |
Height |
199.9 mm |
Depth |
32.5 mm |
Width |
55.9 mm |
Packaging data |
Package weight |
1.63 kg |
Package height |
91.4 mm |
Package depth |
236.2 mm |
Package width |
231.1 mm |
Logistics data |
Harmonized System (HS) code |
85299097 |
Master (outer) case GTIN (EAN/UPC) |
10037332183559 |
Products per master (outer) case |
10 pc(s) |
Master (outer) case gross weight |
16.4 kg |
Master (outer) case height |
245.1 mm |
Master (outer) case length |
495 mm |
Master (outer) case width |
469.9 mm |
