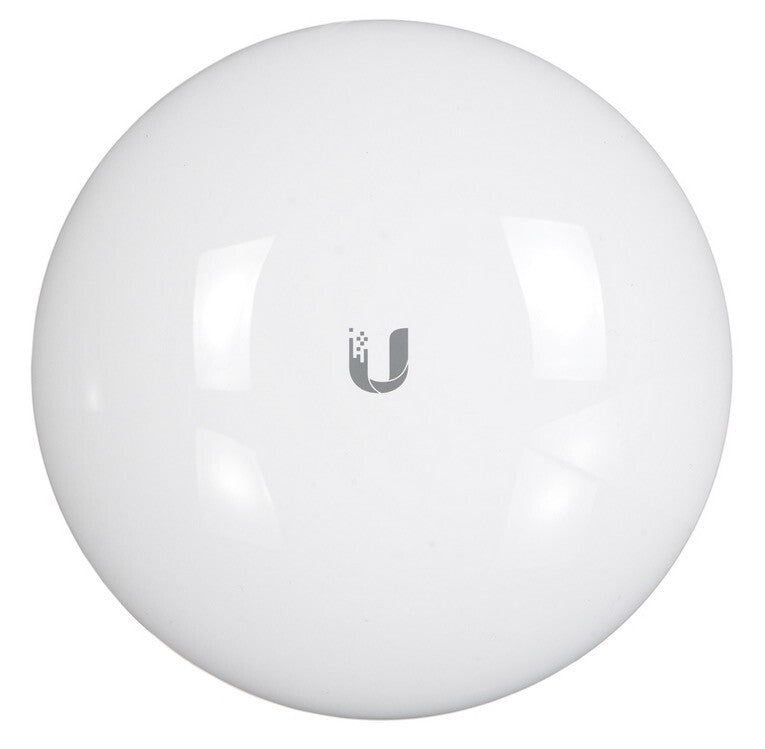

Ubiquiti NanoBeam M5 network antenna 16 dBi

Incorporating innovative industrial design with advanced technology, the NanoBeam M is the latest generation of Ubiquiti Networks airMAX CPE for customer locations.

Plug and Play Installation

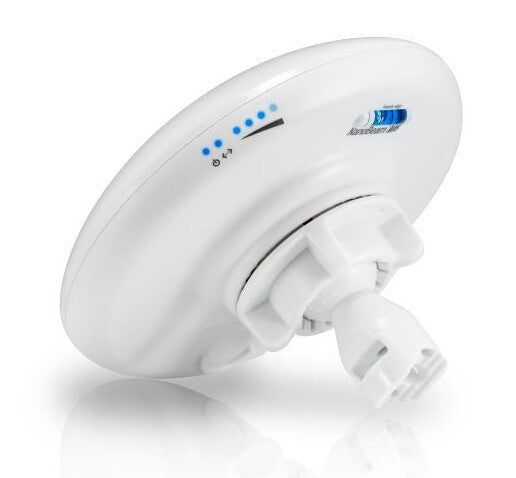

The NanoBeam mounts to a variety of surfaces including poles or walls, and offers the freedom of three-axis alignment. No screws are required for pole-mounting, and only a single wall screw (not included) is required for wall-mounting.

Incredible Antenna “Beam” Performance
The form factor of the NanoBeam features the highest gain for its size. The NanoBeam’s excellent beam directivity provides the best performance in high-noise environments.

Advanced Software Technology
Ubiquiti’s airMAX technology is proven in millions of deployments worldwide, exhibiting outstanding performance in outdoor environments. The TDMA airMAX protocol enables unprecedented scalability, high throughput and low latency in unlicensed, multipoint networks.

Frequency band	5 GHz
Antenna gain level (max)	16 dBi
Polarization	Dual polarization
Product colour	White
Mounting	Wall
Power requirements	24V
Power consumption	500 mA
Compliance certificates	RoHS
Certification	FCC, IC, CE
Operating temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	5 - 95%
Width	140 mm
Depth	140 mm
Height	54 mm
Weight	320 g
Quantity per pack	1 pc(s)
Harmonized System (HS) code	85177100
