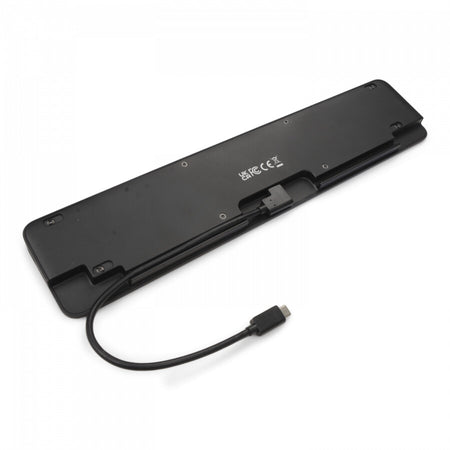

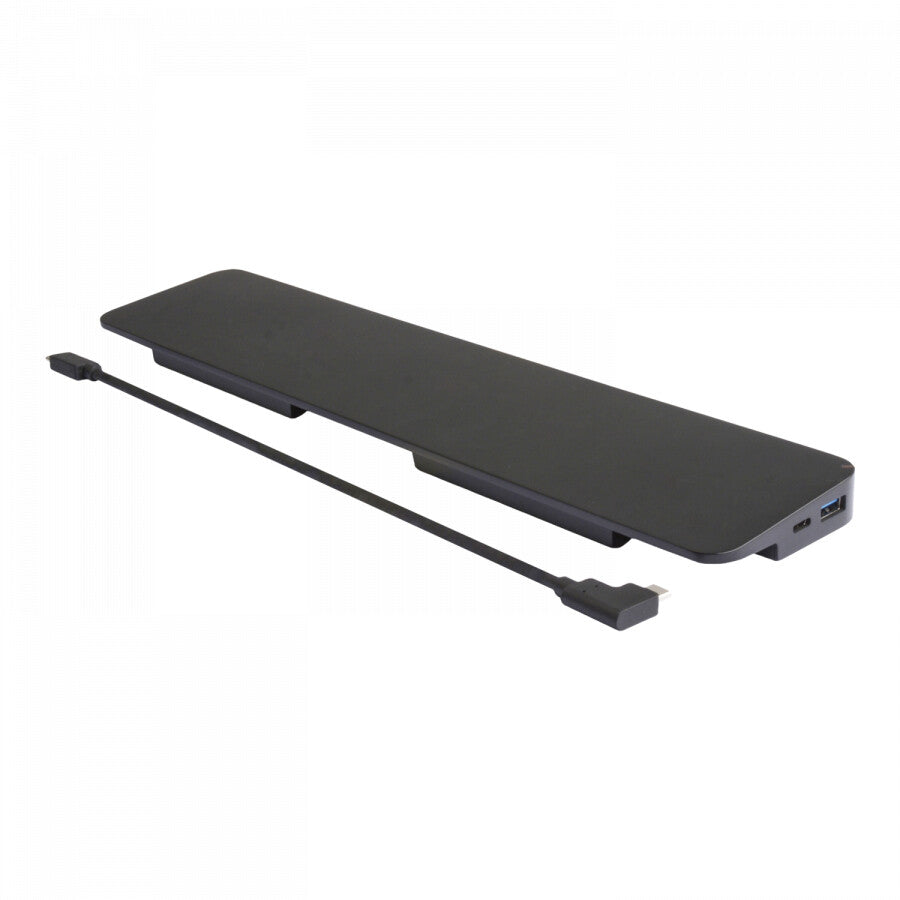

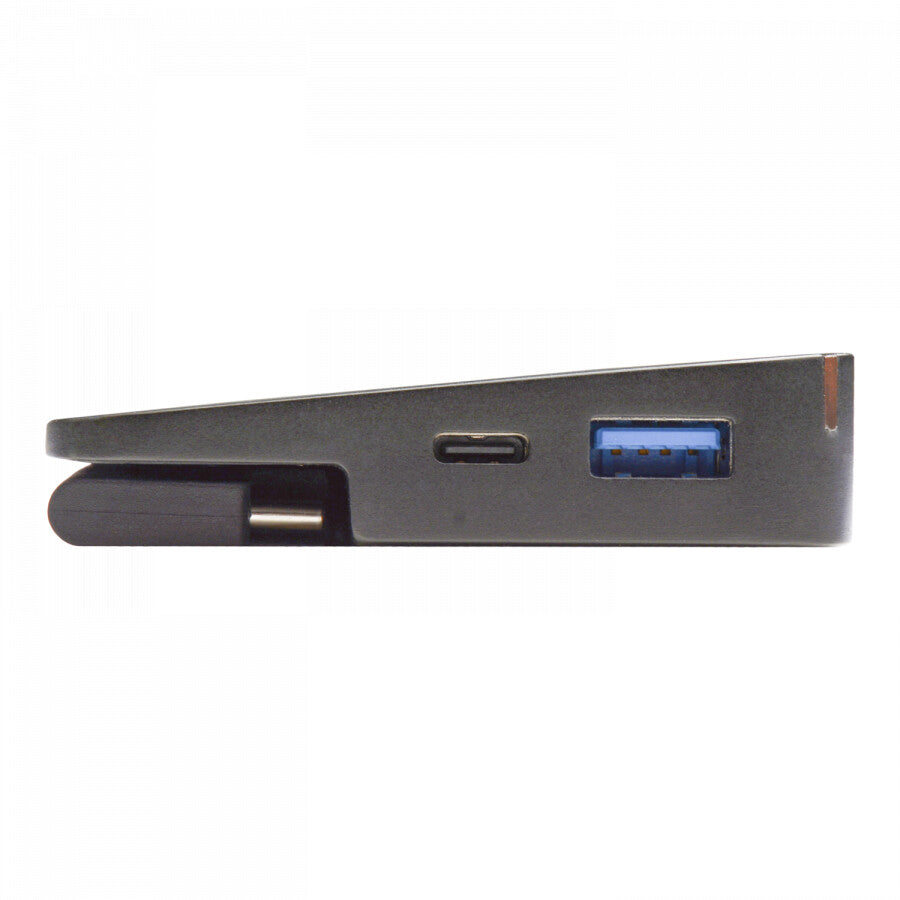

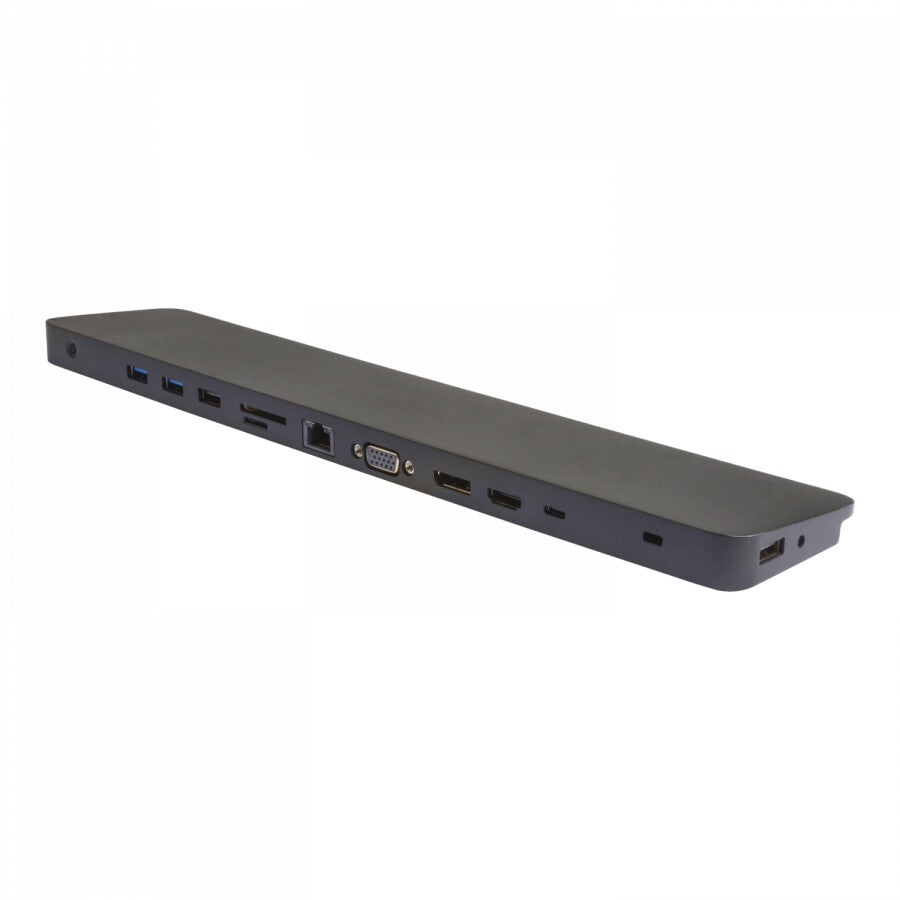

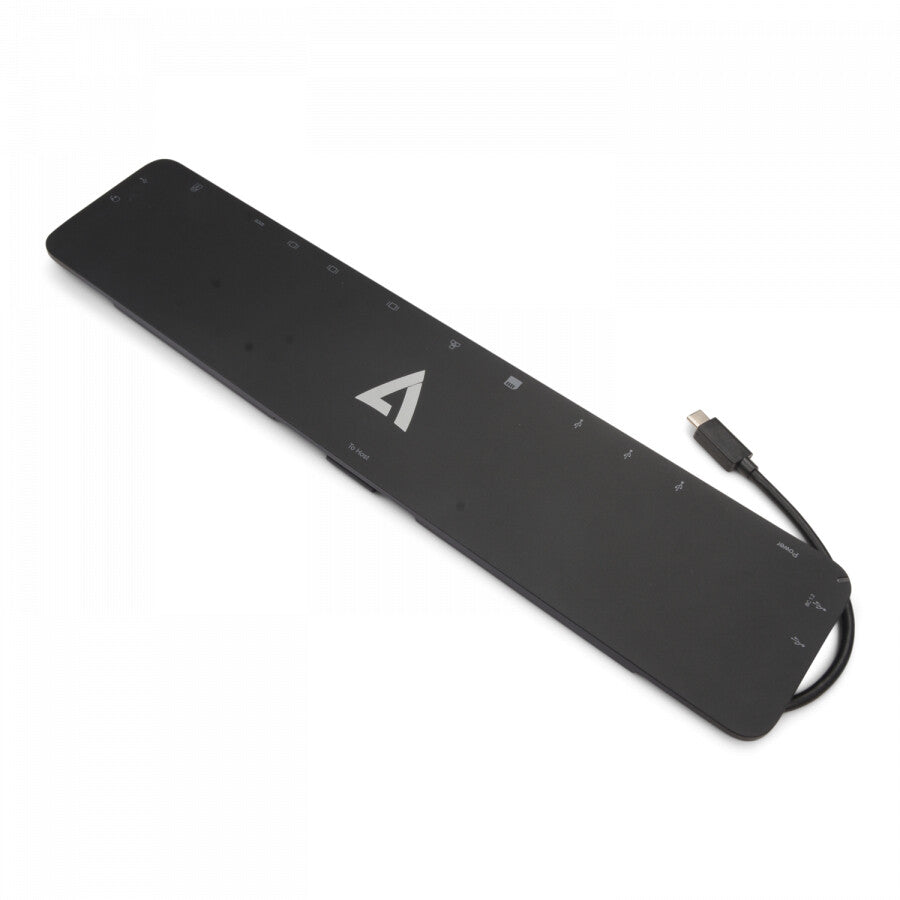

The DOCKUCPT01 USB-C Pass Through Alt-Mode Docking Station from V7 allows you to add up to 3 displays, Audio, Gigabit Ethernet, SD/Micro SD/MMC memory cards, and extra USB ports to almost any USB-C enabled device. It features HDMI, DisplayPort and VGA display outputs that can be used to expand or mirror your device for multitasking productivity. It has a USB-C PD charging port to connect a USB-C Power supply which can supply up to 100 Watts of USB-C Charging to your computer at the same time as providing all the extra connectivity. It is compatible with DisplayPort Alt mode, USB-C and Thunderbolt(tm) 3 host computers, mobile devices, or other devices.
| Ports & interfaces |
|---|
| Headphone outputs |
1 |
| Microphone in |
Yes |
| DisplayPorts quantity |
1 |
| VGA (D-Sub) ports quantity |
1 |
| HDMI ports quantity |
1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity |
2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
2 |
| USB 2.0 ports quantity |
1 |
| Host interface |
USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| Connectivity technology |
Docking |
| Network |
|---|
| Ethernet LAN (RJ-45) ports |
1 |
| Ethernet LAN |
Yes |
| Performance |
|---|
| Certification |
CE, FCC, UKCA |
| Country of origin |
Vietnam |
| Housing material |
Acrylonitrile butadiene styrene (ABS) |
| Cable lock slot type |
Kensington |
| Cable lock slot |
Yes |
| Data transfer rate |
1 Gbit/s |
| Card reader integrated |
No |
| Product colour |
Black |
| Operational conditions |
|---|
| Storage temperature (T-T) |
-10 - 70 °C |
| Operating temperature (T-T) |
0 - 45 °C |
| Weight & dimensions |
|---|
| Weight |
440 g |
| Height |
18 mm |
| Depth |
349.5 mm |
| Width |
74 mm |
| Packaging data |
|---|
| Package weight |
550 g |
| Package height |
35 mm |
| Package depth |
390 mm |
| Package width |
115 mm |
| Quantity per pack |
1 pc(s) |
| Packaging content |
|---|
| User guide |
Yes |
| Cables included |
USB Type-C |
| Manual |
No |
| Warranty card |
Yes |
| Logistics data |
|---|
| Harmonized System (HS) code |
84733020 |
