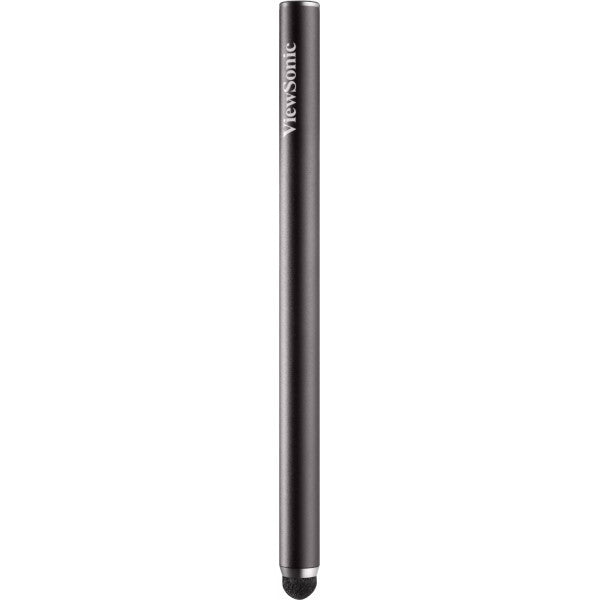

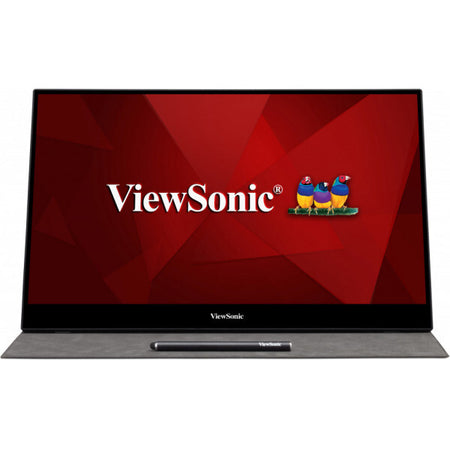

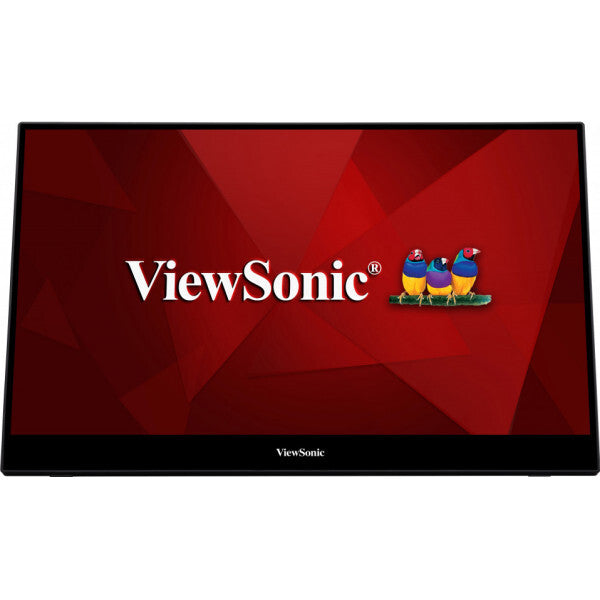

The ViewSonic® TD1655 is a portable 15.6” touch display designed for productivity on the go. Built for business travelers, remote workers, and digital nomads, the TD1655 can serve as a complementary touchscreen to a laptop or tablet for boosted productivity. With an anti-glare screen and Full HD 1080p resolution, this touch display delivers a crystal-clear viewing experience so users can see more and do more for a more efficient workflow. In addition, with a 10-point projective capacitive touchscreen and included stylus pen, the TD1655 delivers a smooth and natural writing experience and streamlined navigation with every tap, pinch, and swipe. A USB Type-C port enables quick and easy transmission of video, and audio. A second USB Type-C port also delivers up to 60W of two-way power: a connected laptop can power the TD1655, OR the TD1655 can power a connected laptop via a USB-C power bank or AC adapter and outlet. Measuring less than an inch thick and weighing only two pounds, the ultra-slim TD1655 perfectly fits into any bag, briefcase, or backpack so you can work wherever life takes you.

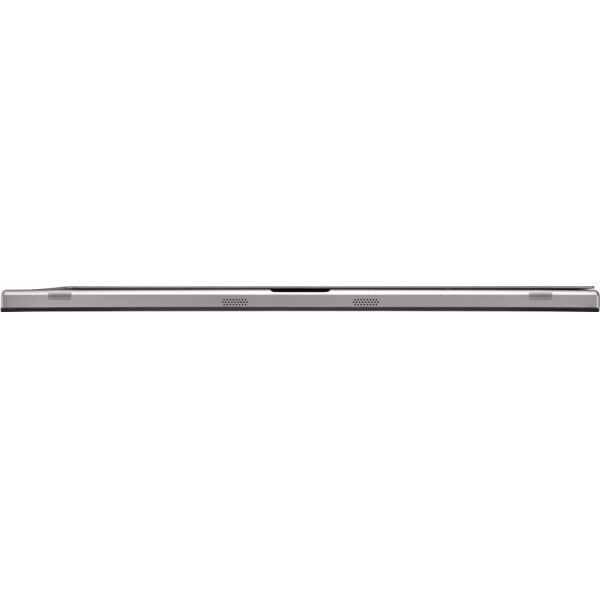

ULTRA-PORTABLE DESIGN
Measuring a mere 0.6" thick and weighing about 2 pounds, this compact monitor can be easily packed and transported wherever you go.
ADVANCED TOUCH CAPABILITIES AND SCREEN PERFORMANCE
An advanced in-cell capacitive touchscreen provides a smooth and responsive experience with every tap, pinch, and swipe, while also delivering awesome front-of-screen performance and incredible images.

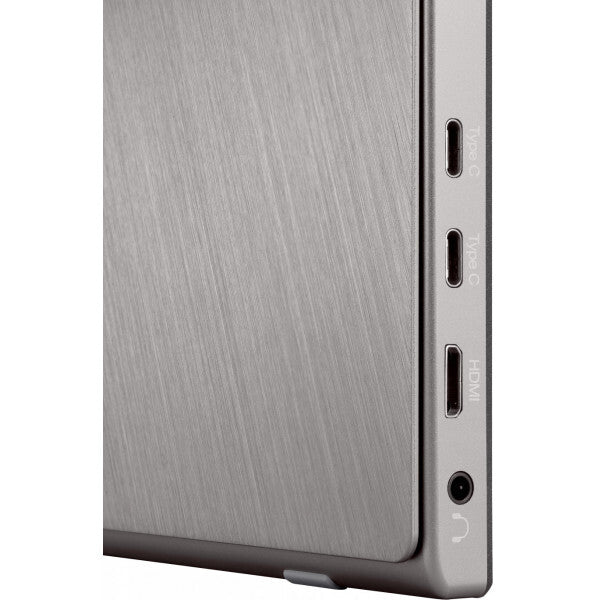

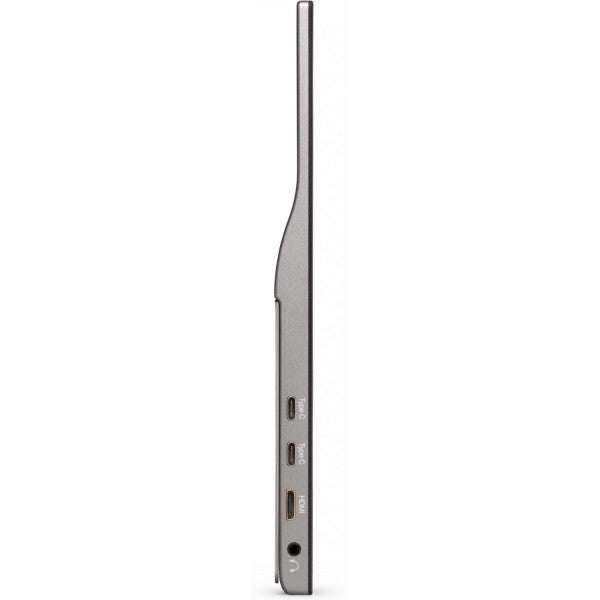

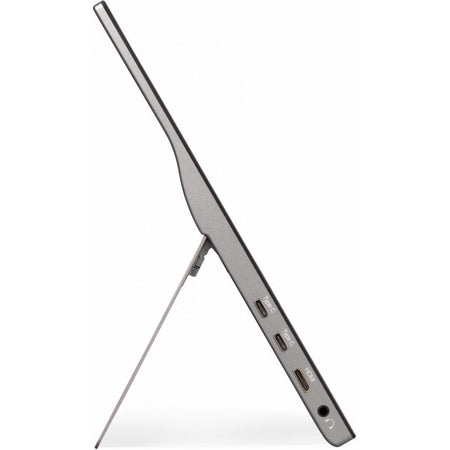

2-WAY POWER WITH USB TYPE-C
Dual USB Type-C ports deliver audio, and video over a single cable. What's more, these USB Type-C ports also deliver two-way power: a connected laptop can power the monitor, or the monitor can power a connected laptop via USB-C power bank or AC adapter and outlet.

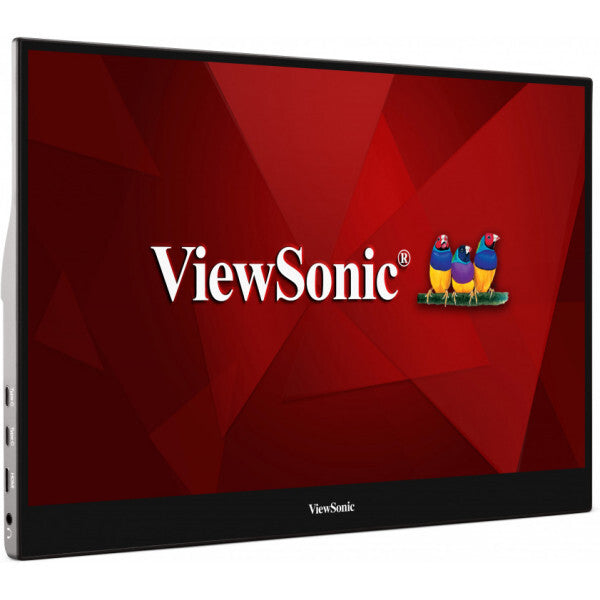

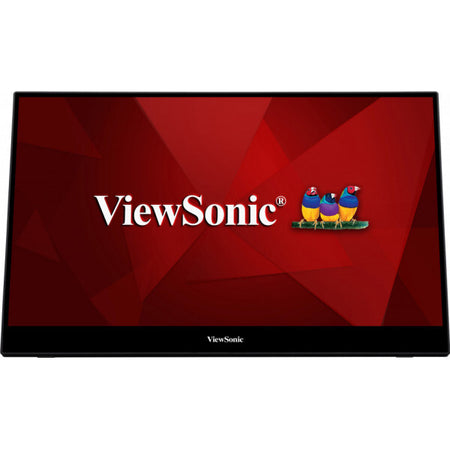

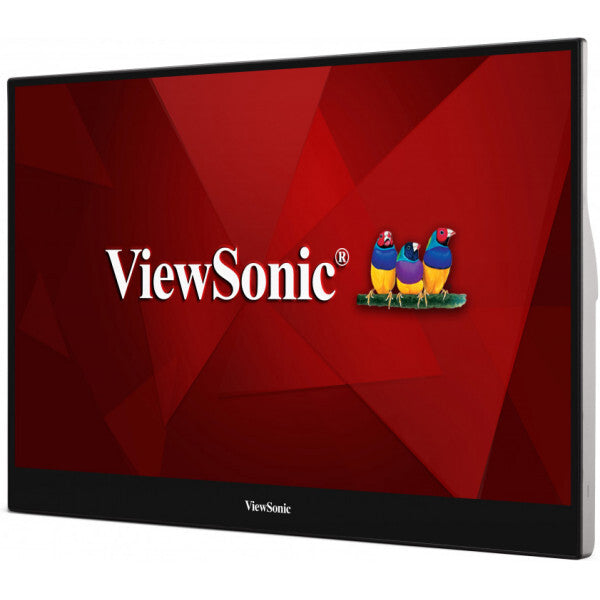

FRAMELESS DESIGN
A premium panel delivers accurate colors and vivid images, while a frameless design provides for a nearly seamless viewing experience in multi-monitor setups. And with ultra-wide viewing angles, you’ll enjoy stunningly detailed images, unbound and without borders, no matter your vantage point.

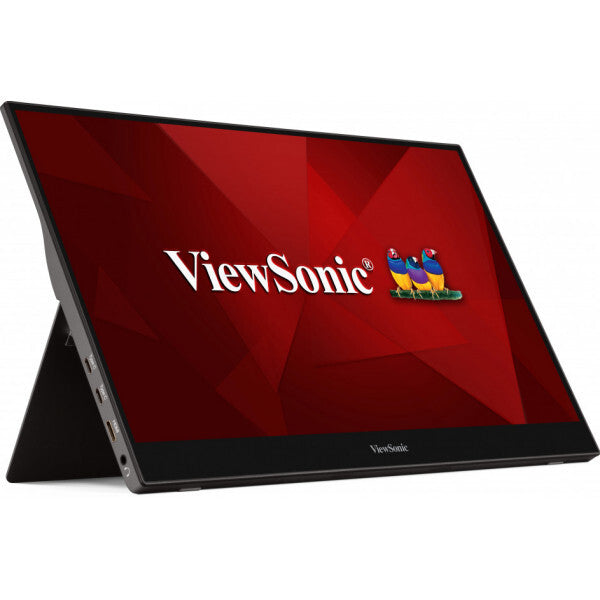

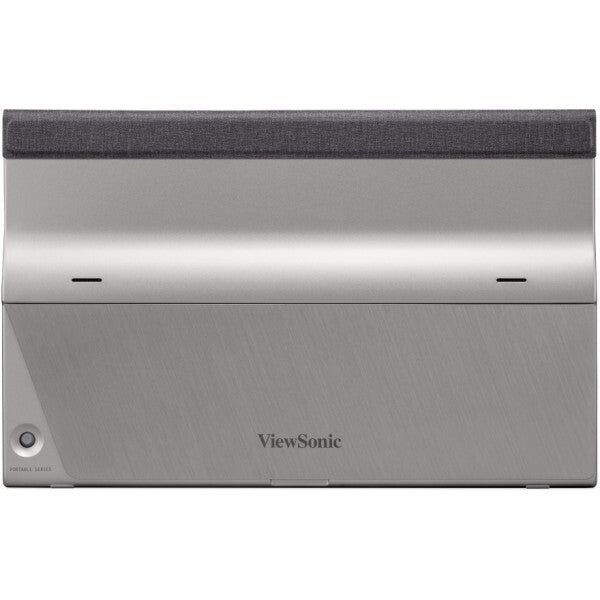

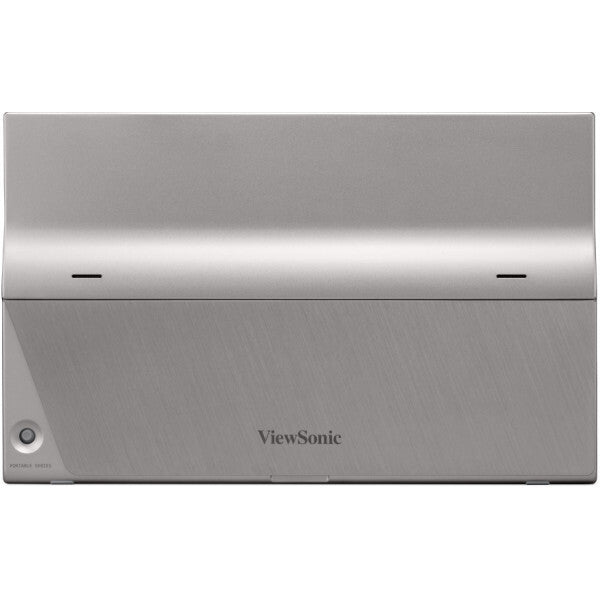

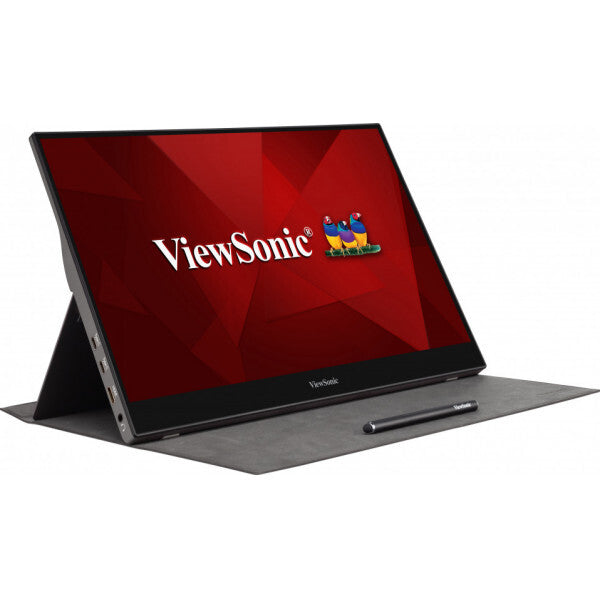

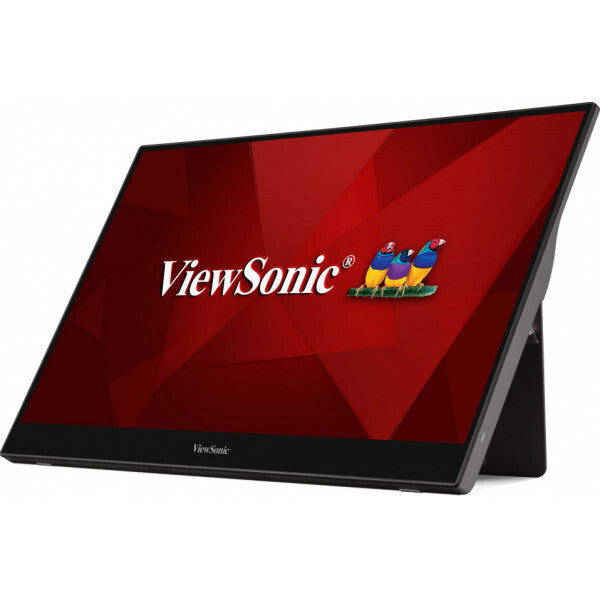

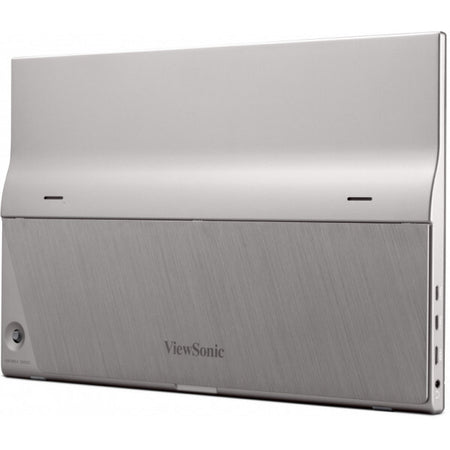

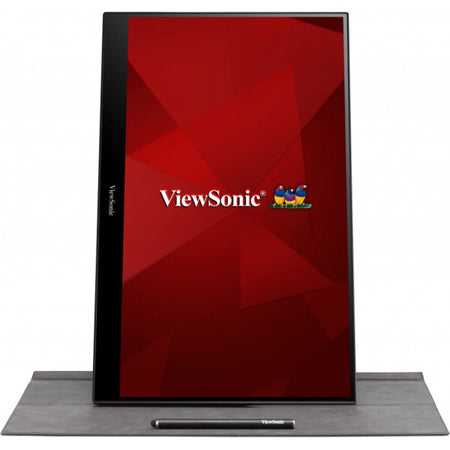

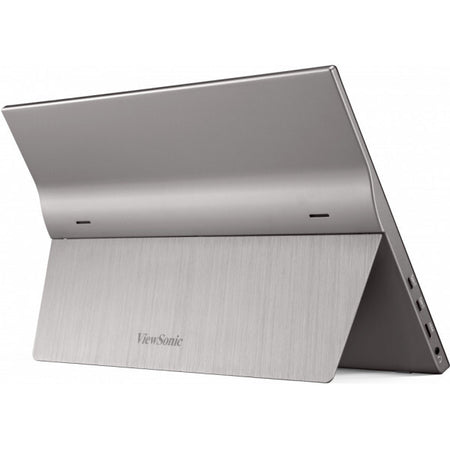

BUILT-IN STAND
A convenient built-in stand enables you to orient the screen in both portrait and landscape modes.
DUAL INTEGRATED SPEAKERS
Designed with dual integrated speakers, this monitor combines incredible screen performance with stereo sound for an immersive multimedia experience.
ENHANCED VIEWING COMFORT
A Blue Light Filter helps to eliminate eye strain from extended viewing periods.
| Display |
|---|
| Display diagonal (metric) |
39.6 cm |
| Vertical scan range |
50 - 75 Hz |
| Horizontal scan range |
15 - 82 kHz |
| Pixel pitch |
0.179 x 0.179 mm |
| Display number of colours |
262144 colours |
| Viewing angle, vertical |
178° |
| Viewing angle, horizontal |
178° |
| Maximum refresh rate |
60 Hz |
| Contrast ratio (dynamic) |
80000000:1 |
| Contrast ratio (typical) |
800:1 |
| Supported graphics resolutions |
640 x 480 (VGA), 720 x 400, 720 x 480, 720 x 576, 800 x 600 (SVGA), 832 x 624, 1024 x 768 (XGA), 1152 x 870, 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 768 (WXGA), 1280 x 800 (WXGA), 1280 x 960, 1360 x 768 (WXGA), 1366 x 768, 1400 x 1050 (SXGA+), 1440 x 900 (WXGA+), 1600 x 1200 (UXGA), 1600 x 900, 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080) |
| Screen shape |
Flat |
| Response time |
6.5 ms |
| Display brightness |
250 cd/m² |
| Number of simultaneous touchpoints |
10 |
| Touch technology |
Multi-touch |
| Touchscreen technology |
Projected capacitive system |
| Touchscreen type |
Multi-user |
| Panel type |
IPS |
| HD type |
Full HD |
| Touchscreen |
Yes |
| Display technology |
LED |
| Native aspect ratio |
16:9 |
| Display resolution |
1920 x 1080 pixels |
| Display diagonal |
39.6 cm (15.6") |
| Performance |
|---|
| Mac operating systems supported |
Yes |
| Windows operating systems supported |
Windows 10 |
| AMD FreeSync |
No |
| NVIDIA G-SYNC |
No |
| Multimedia |
|---|
| Built-in microphone |
No |
| Built-in camera |
No |
| RMS rated power |
1.6 W |
| Number of speakers |
2 |
| Built-in speaker(s) |
Yes |
| Design |
|---|
| Product colour |
Black, Silver |
| Ports & interfaces |
|---|
| Audio output |
1 |
| USB upstream port type |
USB Type-C |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity |
2 |
| Built-in USB hub |
Yes |
| Ergonomics |
|---|
| Tilt angle range |
-20 - 60° |
| Tilt adjustment |
Yes |
| Wall mountable |
No |
| Power |
|---|
| European Product Registry for Energy Labelling (EPREL) code |
385512 |
| Power supply type |
AC |
| AC input frequency |
50 - 60 Hz |
| AC input voltage |
100-240 V |
| Power consumption (standby) |
0.5 W |
| Power consumption (typical) |
8 W |
| Energy consumption (SDR) per 1000 hours |
8 kWh |
| Energy efficiency class (SDR) |
C |
| Operational conditions |
|---|
| Storage relative humidity (H-H) |
5 - 90% |
| Operating relative humidity (H-H) |
20 - 90% |
| Storage temperature (T-T) |
-20 - 60 °C |
| Operating temperature (T-T) |
0 - 40 °C |
| Weight & dimensions |
|---|
| Weight (with stand) |
1 kg |
| Height (with stand) |
223 mm |
| Depth (with stand) |
16 mm |
| Width (with stand) |
355 mm |
| Packaging data |
|---|
| Package weight |
2.3 kg |
| Package height |
89 mm |
| Package depth |
288 mm |
| Package width |
440 mm |
| Packaging content |
|---|
| Cables included |
Mini-HDMI, USB Type-C, USB Type-C to USB Type-A |
| Sustainability |
|---|
| Sustainability certificates |
EPEAT Bronze |
| Other features |
|---|
| Certification |
cTUVus, FCC-B, ICES003, Energy Star 8.0, EPEAT Bronze, CEC, NRCan, MX-CoC, Mexico Energy, CE, CE EMC, CB, RoHS, ErP, REACH, WEEE, EAC, UkrSEPRO |
| Compliance certificates |
CE, REACH, RoHS |
| Weight |
1 kg |
| Display viewable area (HxV) |
344 x 194 mm |
| Logistics data |
|---|
| Harmonized System (HS) code |
8528521000 |
| Products per master (outer) case |
4 pc(s) |
| Pallet gross height |
196.8 cm |
| Pallet gross length |
100 cm |
| Pallet gross width |
120 cm |
