Empowering the Modern, Connected Office with WiFi 7
Introducing the NWA210BE: a high-performance access point with BandFlex radio design, harnessing the full capabilities of WiFi 7. It combines easy setup, flexibility, and high speeds to empower today's modern, connected offices.
Ultra-fast WiFi 7 Speeds with Boosted Performance
NWA210BE - The BE12300 is a dual-radio access point with 2x2:2 at 2.4GHz and 4x4:4 at 5 or 6GHz, providing ultra-fast WiFi 7 speeds of up to 12.3Gbps to boost coverage range and enhance performance.
Flexible BandFlex Design
Dual-radio BandFlex design supports either 5GHz or 6GHz by configuration, fitting seamlessly into existing 5GHz coverage while futureproofing for 6GHz.
RF First by Design
The advanced RF filter design prevents 5GHz and 6GHz band interference, while the built-in 4G/5G interference filter allows seamless coexistence with cellular networks.
Flexible Management
NebulaFlex allows users to switch between standalone and intelligent Nebula cloud-managed modes as needed.

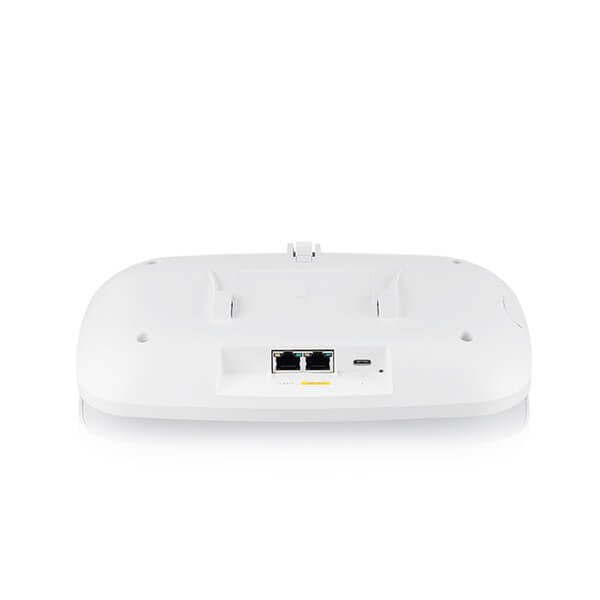

Dual 2.5GbE mGig Connectivity
Dual 2.5GbE ports unlock speeds beyond gigabit, providing a cost-effective upgrade to enjoy WiFi 7 performance while seamlessly integrating with existing infrastructure and offering remarkable flexibility to tailor both ports to fit your networking needs.
Connected – In Just a Few Clicks!
You can be connected in minutes with just a few simple clicks on the Nebula mobile app. The easy step-by-step wizard guides you through the entire installation process, and the intuitive app makes it easy to change settings as needed.
Nebula, The Intelligent Cloud Management
Nebula offers comprehensive monitoring and reporting capabilities, including real-time notifications for critical events via email or the mobile app.
With Nebula, you can enjoy a streamlined experience for network installation and management without the need for additional costs for software or hardware controllers.
Enhance Your WiFi with Nebula
Nebula automates wireless network management and optimization with features like WiFi Aid and Wireless Health, ensuring the best possible user experience. These features enhance network performance and reliability, delivering an exceptional WiFi experience.
Smooth and Secure Wireless Experience
The Connect & Protect service is a Nebula-cloud mode service focused on SB hotspot WiFi scenarios. It protects network users from cybersecurity threats and supports application-level network visibility and bandwidth throttling.
Ready to Boost Network Speeds Up to 2.5x
Paired with Zyxel NWA210BE WiFi 7 AP, the XMG1915-10EP/18EP switch is the perfect choice for upgrading your SB/SMB network’s speed and performance, offering up to 2.5 times faster speeds than today’s Gigabit networks.
With this switch, it’s a breeze to boost your network speed using your existing wiring infrastructure without costly and disruptive cable upgrades.
| Features |
|---|
| VLAN support |
Yes |
| MIMO |
Yes |
| Cabling technology |
10/100/1000Base-T(X) |
| Networking standards |
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11be, IEEE 802.11g, IEEE 802.11n, IEEE 802.1x |
| Ethernet LAN data rates |
10,100,1000,2500 Mbit/s |
| Maximum data transfer rate (6 GHz) |
11530 Mbit/s |
| Maximum data transfer rate (5 GHz) |
8646 Mbit/s |
| Maximum data transfer rate (2.4 GHz) |
688 Mbit/s |
| Maximum data transfer rate |
11530 Mbit/s |
| 5 GHz |
Yes |
| 6 GHz |
Yes |
| 2.4 GHz |
Yes |
| Security |
|---|
| Security algorithms |
WEP, WPA, WPA2, WPA3 |
| Management features |
|---|
| Firmware upgradeable |
Yes |
| Web-based management |
Yes |
| Ports & interfaces |
|---|
| DC-in jack |
Yes |
| RS-232 interface |
No |
| WAN connection |
Ethernet (RJ-45) |
| USB connector type |
USB Type-C |
| USB 2.0 ports quantity |
1 |
| Ethernet LAN (RJ-45) ports |
2 |
| Power |
|---|
| Power consumption (max) |
21.5 W |
| Input current |
2 A |
| DC voltage range |
15 V |
| Power over Ethernet (PoE) |
Yes |
| Power over Ethernet (PoE) type supported |
Active PoE |
| Design |
|---|
| LED indicators |
Data, PoE, Power, WLAN |
| WPS push button |
No |
| Reset button |
Yes |
| On/off switch |
No |
| Housing material |
Polycarbonate (PC) |
| Product colour |
White |
| Placement |
Ceiling |
| Antenna |
|---|
| Antenna gain level (max) |
3.17 dBi |
| Antennas quantity |
4 |
| Antenna features |
Integrated antenna |
| Antenna direction type |
Omni-directional |
| Antenna type |
Internal |
| Performance |
|---|
| Built-in processor |
Yes |
| Weight & dimensions |
|---|
| Weight |
815 g |
| Height |
47 mm |
| Depth |
160 mm |
| Width |
250 mm |
| Packaging data |
|---|
| Package weight |
1.04 kg |
| Package height |
66 mm |
| Package depth |
180.5 mm |
| Package width |
279.5 mm |
| Operational conditions |
|---|
| Storage relative humidity (H-H) |
10 - 90% |
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating temperature (T-T) |
0 - 50 °C |
| Operating relative humidity (H-H) |
10 - 95% |
| Logistics data |
|---|
| Harmonized System (HS) code |
85176200 |
