Powerful. Secure. Wireless.
Smart WiFi 7 for Small Spaces– Easy Setup, Big Performance.
Smart WiFi 7 for Small Spaces

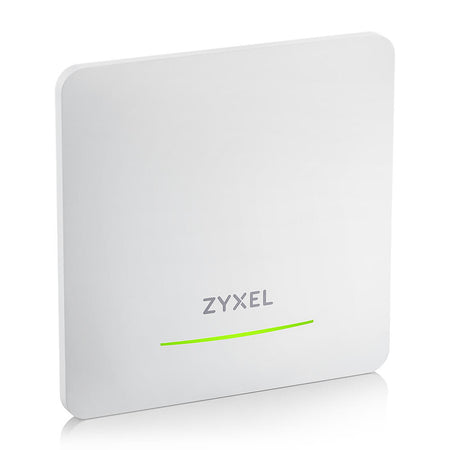

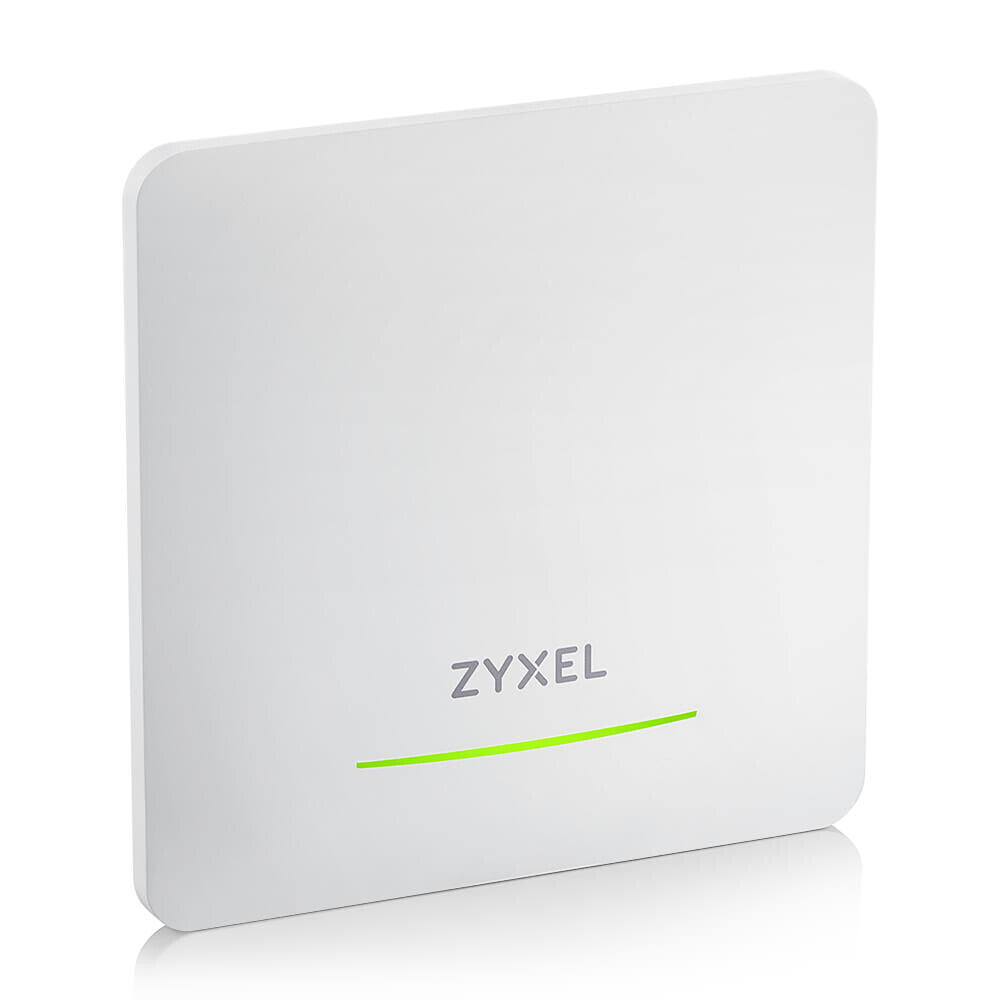

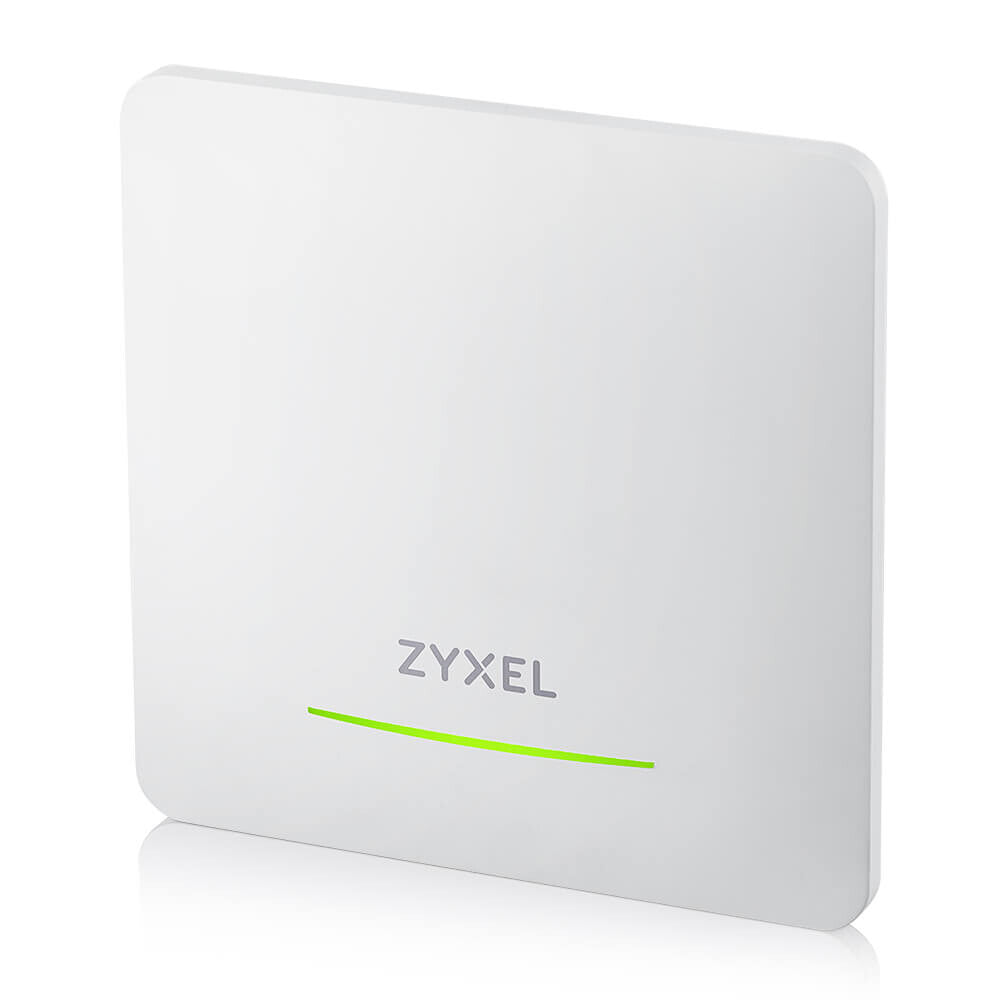

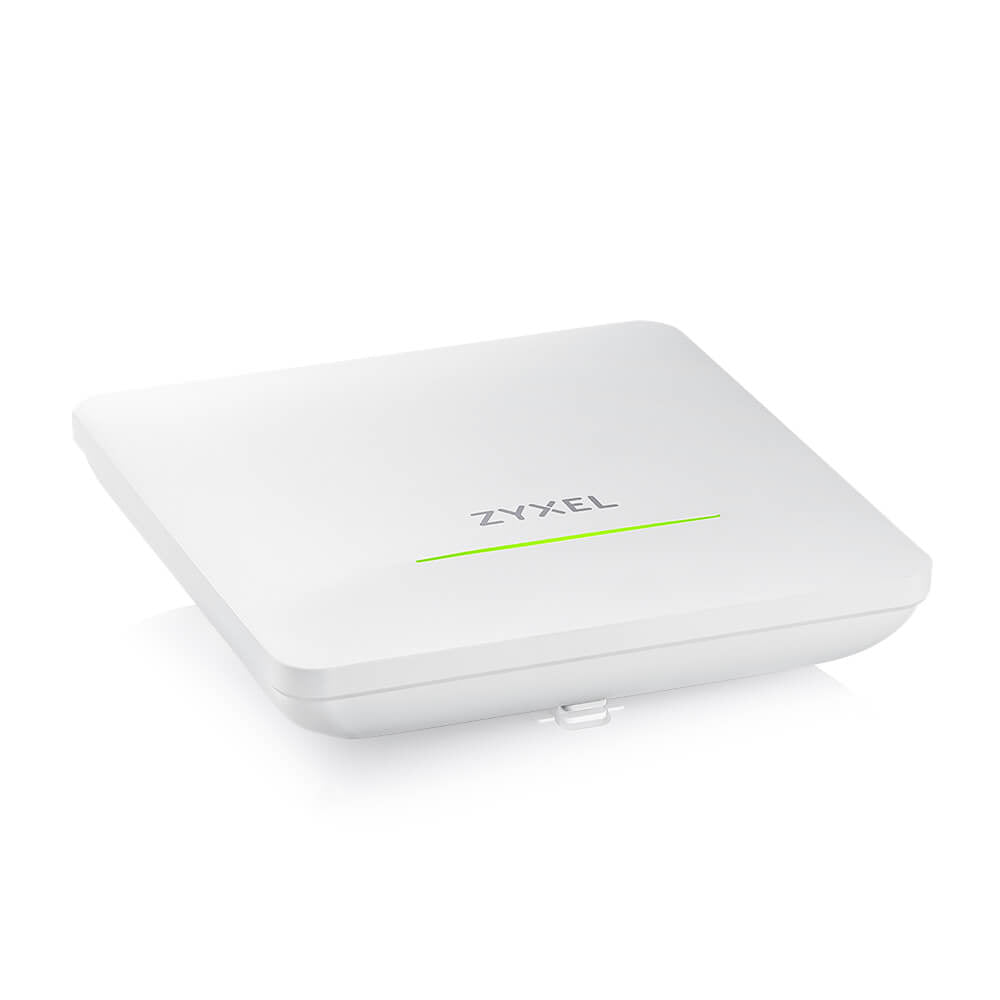

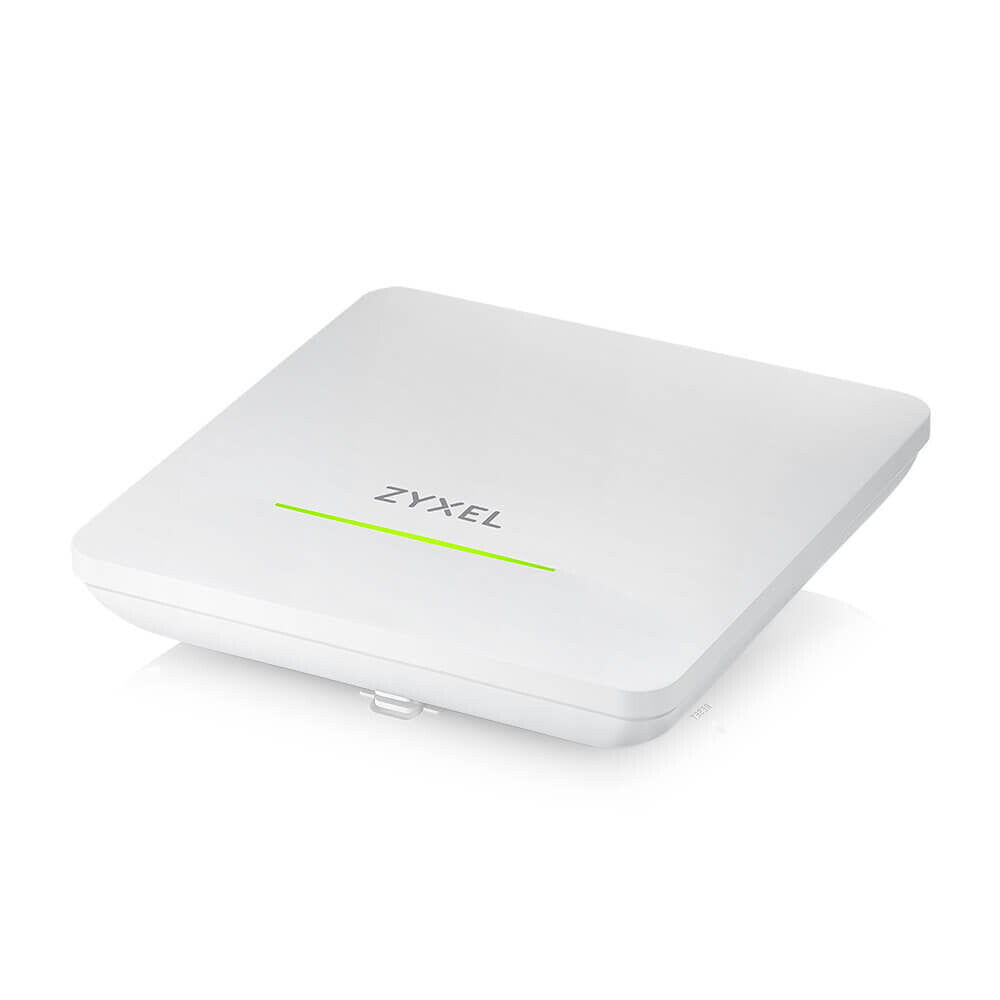

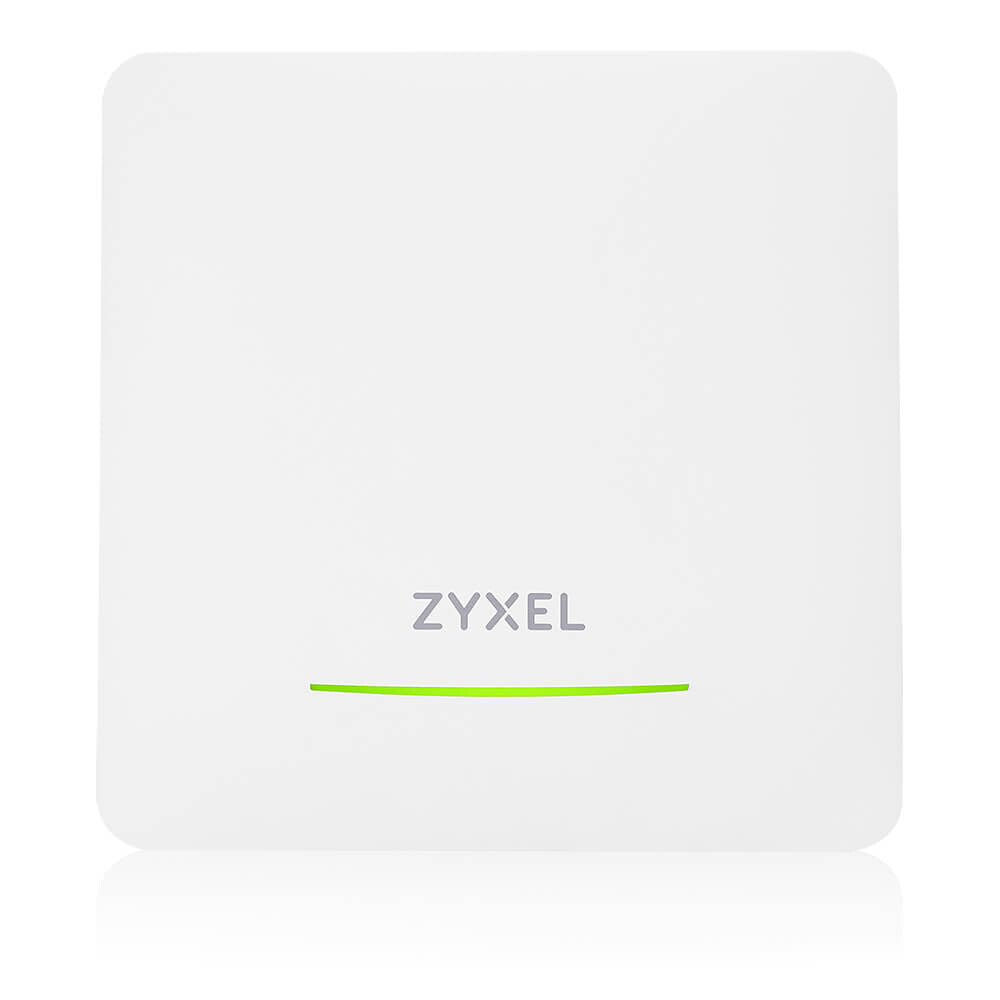

The Zyxel NWA90BE is a WiFi 7 access point designed to provide an ideal feature set for small businesses, SoHo users, and small spaces seeking an affordable upgrade to WiFi 7. Built for home offices, compact workplaces, and homes, it offers an effortless path to WiFi 7 with faster speeds and reliable, wide-area coverage.
NWA90BE – Easy Setup, Big Performance
Powered by a Qualcomm quad-core CPU, the BE5100 (2.4GHz: 2x2:2, 5GHz: 2x2:2) dual-radio access point delivers ultra-fast WiFi 7 speeds of up to 5.1Gbps, ensuring enterprise-grade performance in a compact design. Its 2.5GbE uplink unlocks the full potential of WiFi 7 for high-speed connectivity.
With a straightforward setup via Nebula Cloud Networking, you can quickly configure the access point, set up separate networks for work and family use, and start enjoying ultra-fast WiFi 7 speeds.
Smart Mesh MLO: More Bandwidth, Less Hassle
Smart Mesh MLO (Multiple Link Operation) technology automatically establishes dynamic wireless links, eliminating the need for complex, inconvenient cabling in WiFi deployments.
Unlike traditional mesh networks that rely on a single radio for data transmission, the NWA90BE utilizes dual-radio backhaul, delivering superior bandwidth, enhanced interference resistance, and ultra-low latency for seamless, high-performance connectivity.
Secure Authentication to Safeguard Business Networks
With support for a captive portal, IEEE 802.1X/RADIUS authentication, the NWA90BE not only offers small business users enterprise-level security to protect their networks, but also provides flexible options to customize wireless network login pages for marketing and brand recognition.
Connected – In Just a Few Clicks!
You can be connected in minutes with just a few simple clicks on the Nebula mobile app. The easy step-by-step wizard guides you through the entire installation process, and the intuitive app makes it easy to change settings as needed.
Nebula, The Intelligent Cloud Management
Nebula offers comprehensive monitoring and reporting capabilities, including real-time notifications for critical events via email or the mobile app.
With Nebula, you can enjoy a streamlined experience for network installation and management without the need for additional costs for software or hardware controllers.
| Features |
|---|
| VLAN support |
Yes |
| Fast roaming |
Yes |
| Wi-Fi Multimedia (WMM)/(WME) |
Yes |
| MIMO type |
Multi User MIMO |
| MIMO |
Yes |
| Networking standards |
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11be, IEEE 802.11g, IEEE 802.11n, IEEE 802.1x, IEEE 802.3at, IEEE 802.3bt |
| Ethernet LAN data rates |
1000,2500 Mbit/s |
| Maximum data transfer rate (5 GHz) |
4324 Mbit/s |
| Maximum data transfer rate (2.4 GHz) |
688 Mbit/s |
| Maximum data transfer rate |
4324 Mbit/s |
| 5 GHz |
Yes |
| 6 GHz |
No |
| 2.4 GHz |
Yes |
| Security |
|---|
| Remote Authentication Dial-In User Service (RADIUS) |
Yes |
| Auto Wireless Distribution System (WDS) |
Yes |
| Security algorithms |
WEP, WPA, WPA2, WPA3 |
| Management features |
|---|
| Cloud-managed |
Yes |

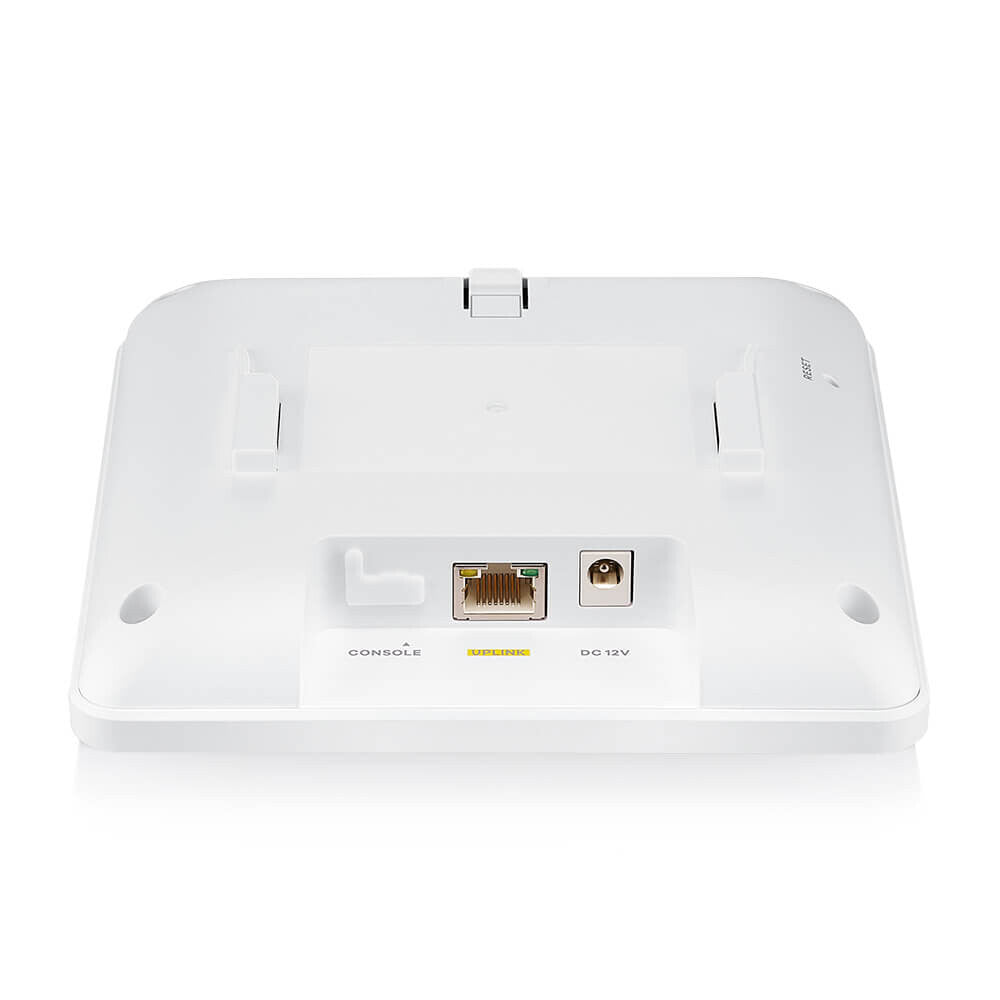

| Ports & interfaces |
|---|
| DC-in jack |
Yes |
| Ethernet LAN (RJ-45) ports |
1 |
| Power |
|---|
| Output current |
1.5 A |
| Input current |
0.3 A |
| DC voltage range |
12 V |
| AC input voltage |
100 - 240 V |
| AC input frequency |
50/60 Hz |
| Power over Ethernet (PoE) |
Yes |
| Design |
|---|
| Product colour |
White |

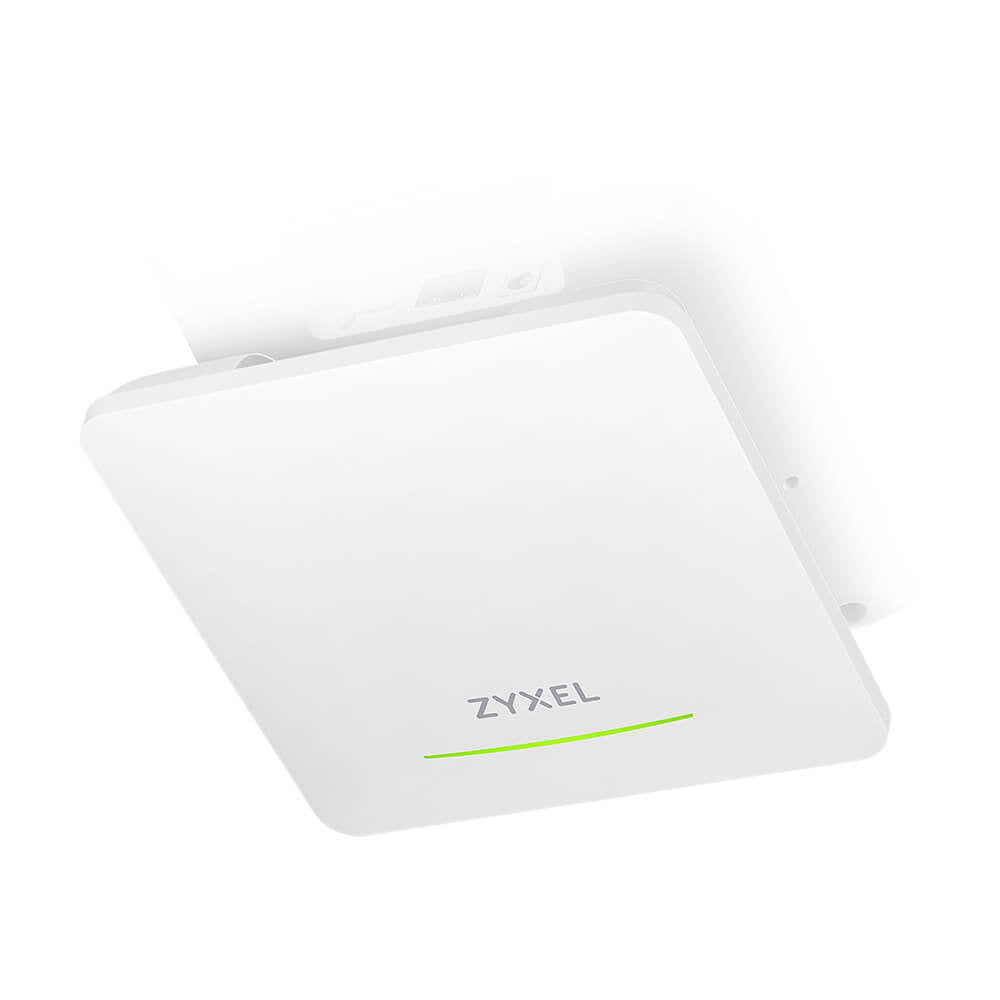

| Placement |
Ceiling |
| Antenna |
|---|
| Antenna gain level (max) |
3 dBi |
| Antenna type |
Internal |
| Weight & dimensions |
|---|
| Weight |
412 g |
| Height |
35 mm |
| Depth |
150 mm |
| Width |
150 mm |
| Packaging data |
|---|
| Package weight |
785 g |
| Package height |
60 mm |
| Package depth |
168 mm |
| Package width |
244 mm |

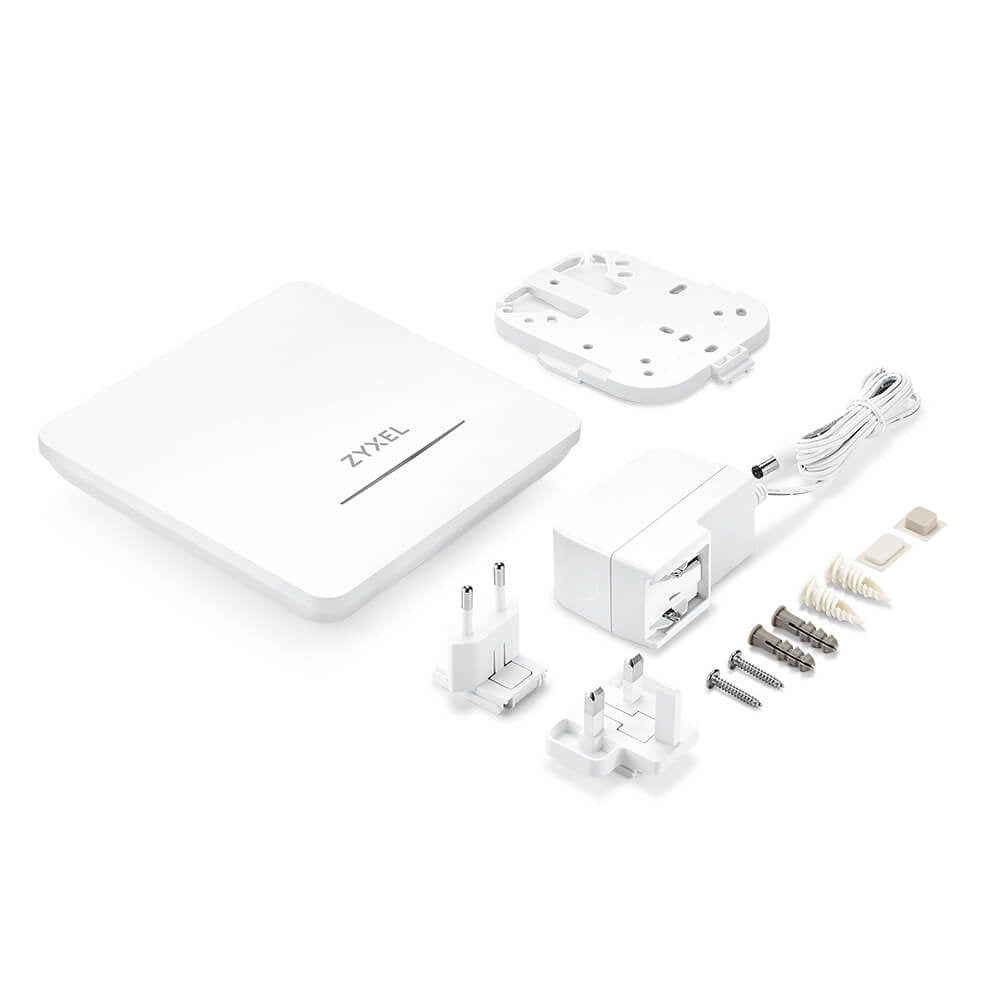

| Packaging content |
|---|
| Mounting kit |
Yes |
| AC adapter included |
Yes |
| Operational conditions |
|---|
| Storage relative humidity (H-H) |
10 - 90% |
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating temperature (T-T) |
0 - 50 °C |
| Operating relative humidity (H-H) |
10 - 95% |
